SIGLENT
SDG2000X
User
Manual
13

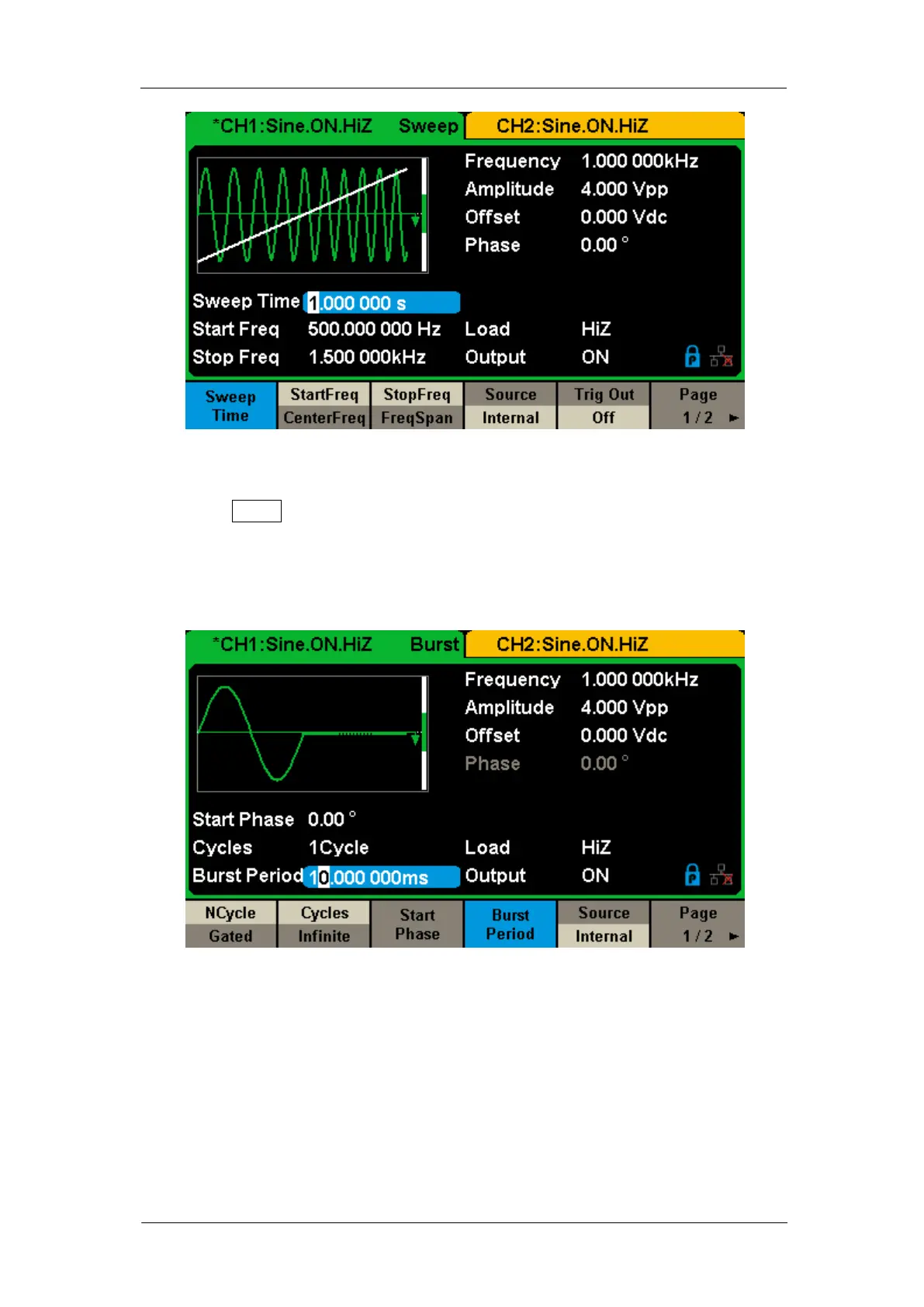

Figure 1-
15
Sweep
Wavef
orm Display
Interface
3.
Press
Burst
, the Burst function will be enabled.
Burst
signals
f
or
sine,
square,
ramp,
pulse
o
r
arbitrary
waveform
s
may
be
generated.
Start
P
hase
ranges
from
0°
to
360°
and
Burst
Period
ranges
f
rom
1μs to 1000s.
Figure 1-
16
Burst
Wavefor
m Display
Interface
22
24
Table of Contents
Default Chapter
7
Table of Contents
7
1 Quick Start
11
Handle Adjustment
12
The Front/Rear Panel
13
Rear Panel
14
To Select a Waveform
18
To Set Modulation/Sweep/Burst
22
To Turn On/Off Output
24
To Use Numeric Input
25
To Use Common Function Keys
26
2 Front Panel Operations
27
To Set Sine Waveform
28
To Set Square Waveform
33
To Set Ramp Waveform
36
To Set Pulse Waveform
38
To Set Noise Waveform
42
To Set DC Waveform
46
To Set Arbitrary Waveform
47
To Set Harmonic Function
58
To Set Modulation Function
61
Dsb-Am
65
Fsk
71
Ask
73
Psk
74
Pwm
76
To Set Sweep Function
79
To Set Burst Function
84
To Store and Recall
90
Storage System
91
File Type
92
File Operation
94
To Set Utility Function
98
System Settings
100
Test/Cal
108
Frequency Counter
113
Output
116
CH Copy/Coupling
119
Remote Interface
124
Sync Output
130
Clock Source
132
Mode
133
Overvoltage Protection
135
3 Examples
136
Example 1: Generate a Sine Waveform
137
Example 2: Generate a Square Waveform
139
Example 3: Generate a Ramp Waveform
141
Example 4: Generate a Pulse Waveform
143
Example 5: Generate a Noise
145
Example 6: Generate a DC Waveform
146
Example7: Generate a Linear Sweep Waveform
147
Example 8: Generate a Burst Waveform
149
Example 9: Generate an am Modulation Waveform
151
Example 10: Generate a FM Modulation Waveform
153
Example 11: Generate a PM Modulation Waveform
155
Example 12: Generate a FSK Modulation Waveform
157
Example 13: Generate an ASK Modulation Waveform
159
Example 14: Generate a PSK Modulation Waveform
161
Example 15: Generate a PWM Modulation Waveform
163
Example 16: Generate a DSB-AM Modulation Waveform
165
4 Troubleshooting
167
General Inspecting
167
Troubleshooting
168
5 Service and Support
169
Maintenance Summary
169
Contact SIGLENT
170
6 Appendix
171
Appendix A: Accessories
171
Appendix B: Daily Maintenance and Cleaning
172
