3-SDG2000X Quick Start
The Front
Panel
1. Power Key
2. USB Host
3. Touch Screen Display
4. Numeric Keyboard
5. Knob
6. Arrow Keys
7. CH1/CH2 Control/
Output Port
8. Channel Select Key
9. Function Keys
10. Waveform Option
11. Menu Keys

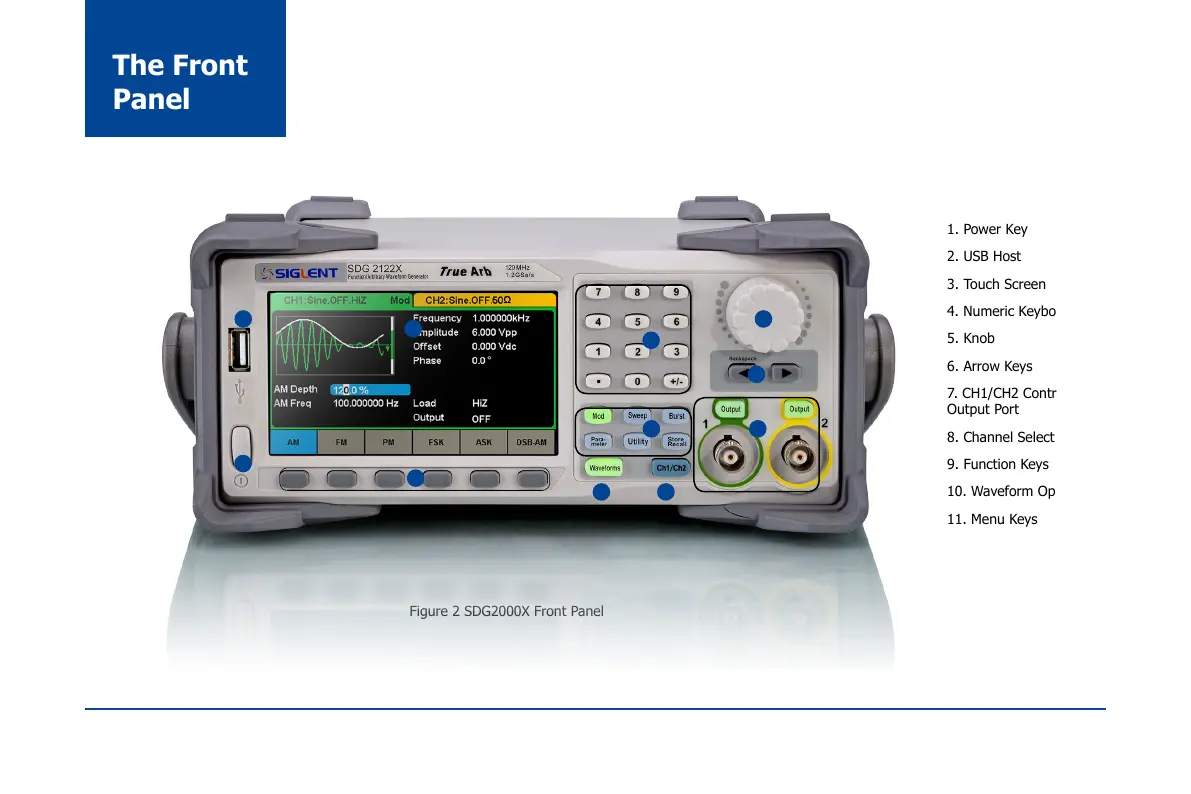

Figure 2 SDG2000X Front Panel
1
2
3
11
10 8
9
4
5
6
7
