SDG2000X User Manual 27
To Set the Symmetry
Symmetry: The percentage that the rising period takes up the whole Period.
Input Range: 0~100%
Default Value: 50%
1. Press Waveforms → Ramp → Symmetry, to set the symmetry.
The symmetry shown on the screen when the instrument is powered on is the
default value or the set value of last power down.
2. Input the desired Symmetry.
Use the numeric keyboard to input the parameter value directly, and press the
corresponding key to select the parameter unit. Or use the arrow keys to
select the digit to edit, and then use the knob to change its value. The
generator will change the waveform immediately.

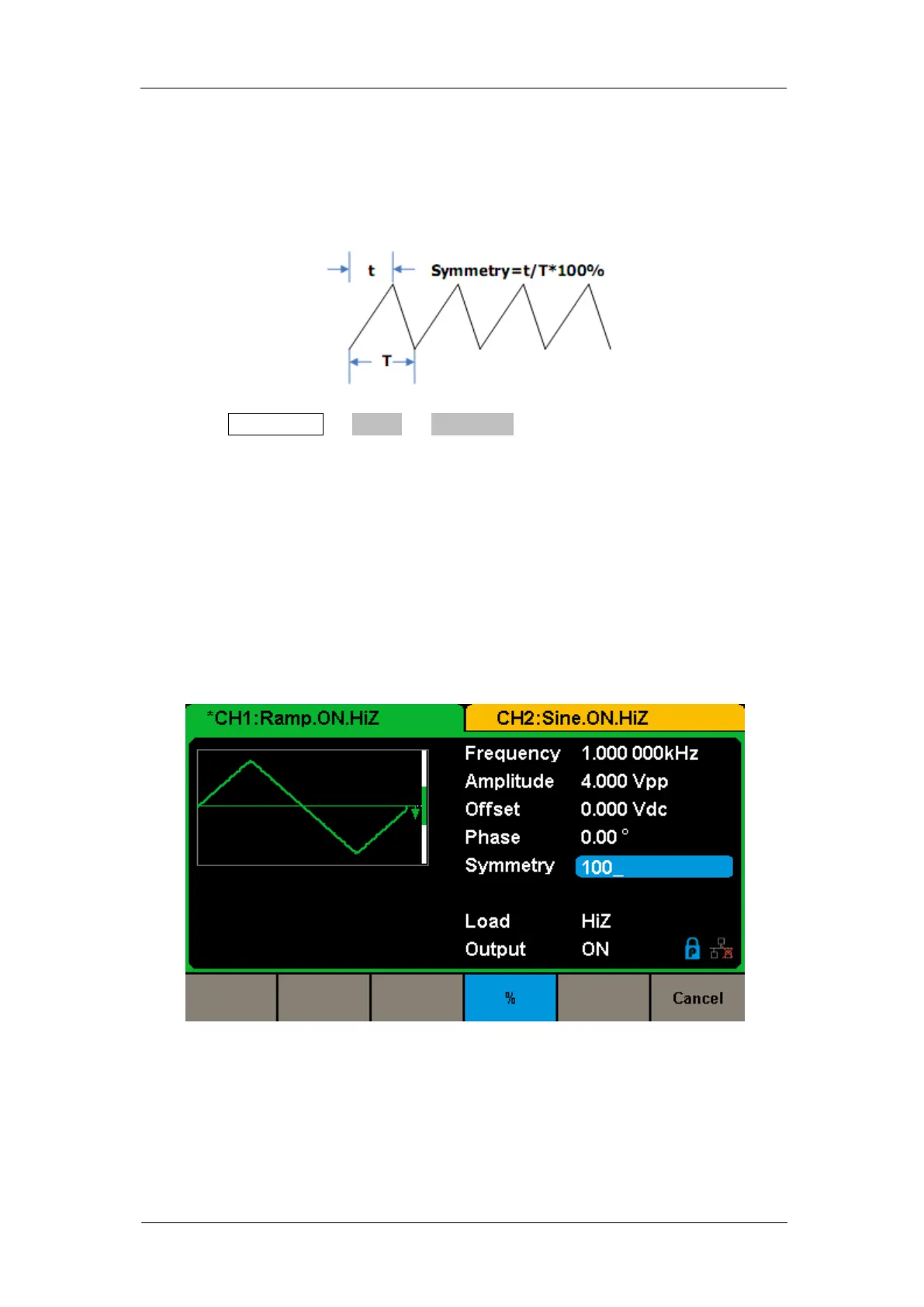

Figure 2-9 Setting the Symmetry
Note:
The methods of setting other parameters of ramp signal are similar to sine
waveform function.
