SDG2000
X_Servic
eManual_SM
0202X-E01B.
doc
52

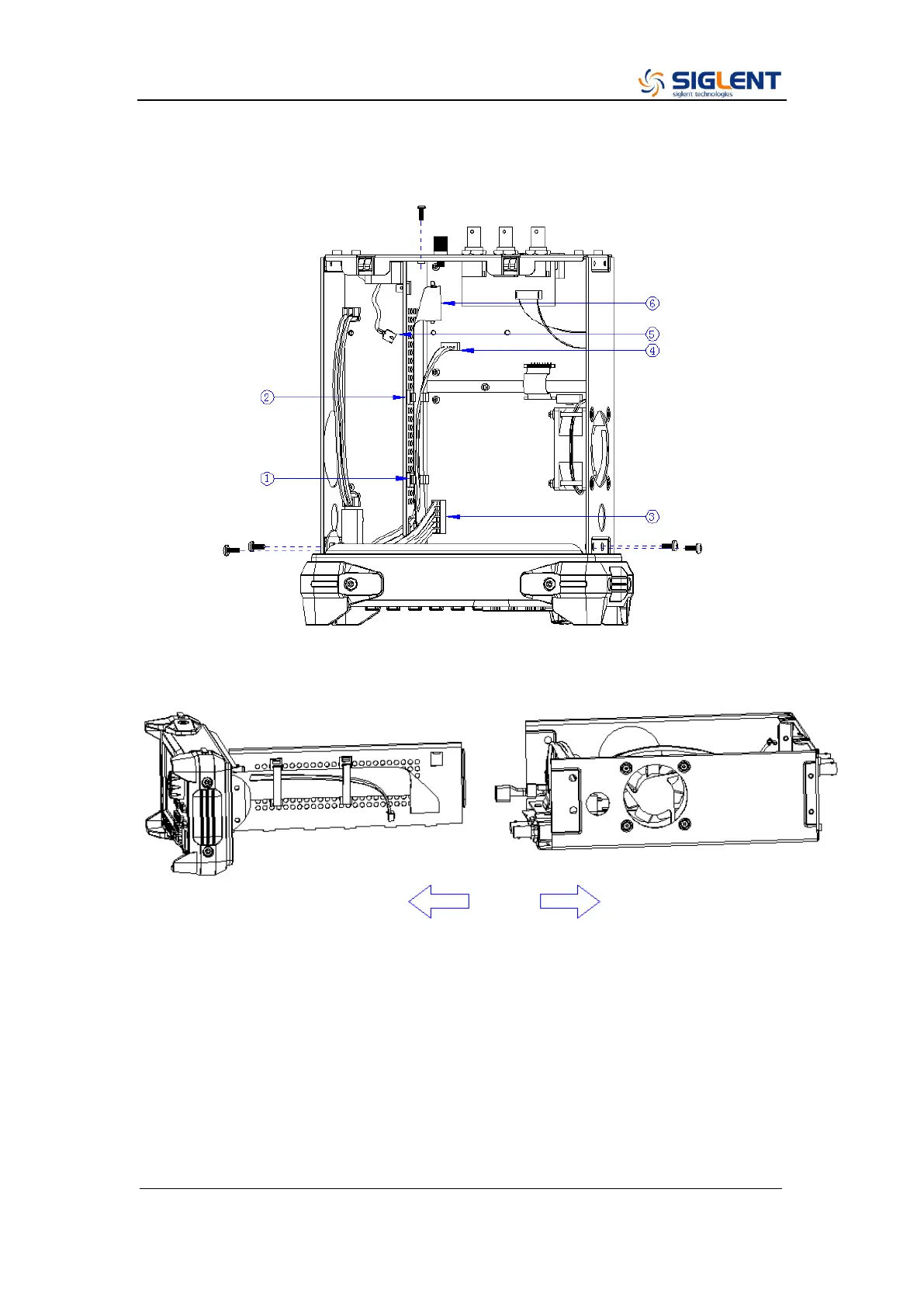

3.
Open
the
cable
clamp
as
①②
show
and
pull
o
ut
the
cable
as
③④⑤⑥
show
, and then
remove the 5PCS screws as shown in the following
figure.
4.
Separate the front panel from the main body of the generator
.
5.
Pull
out
the
knob
and
then
remove
the
screws
attaching
the
h
ardware
partition plate and the front cabinet screws.
51
53
