Channel Board Drawing

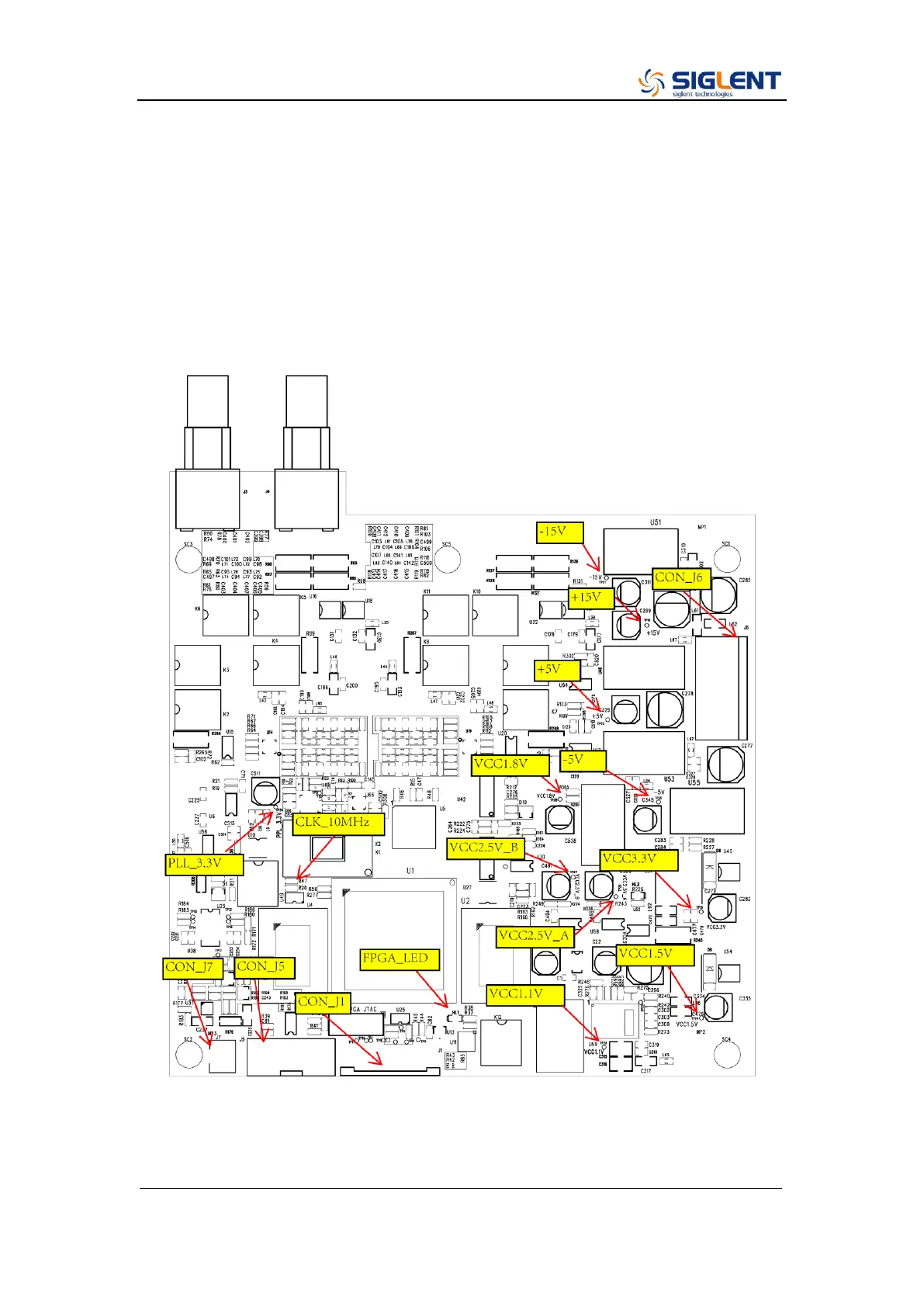

The channel board is a kind of signal conditioning board for generating analog

signal. It mainly deals with the adjusting of signal parameters such as

frequency, amplitude, and so on. Please refer to the following drawing to

quickly locate the test points on the channel board for easy resolution of any

problems encountered.
