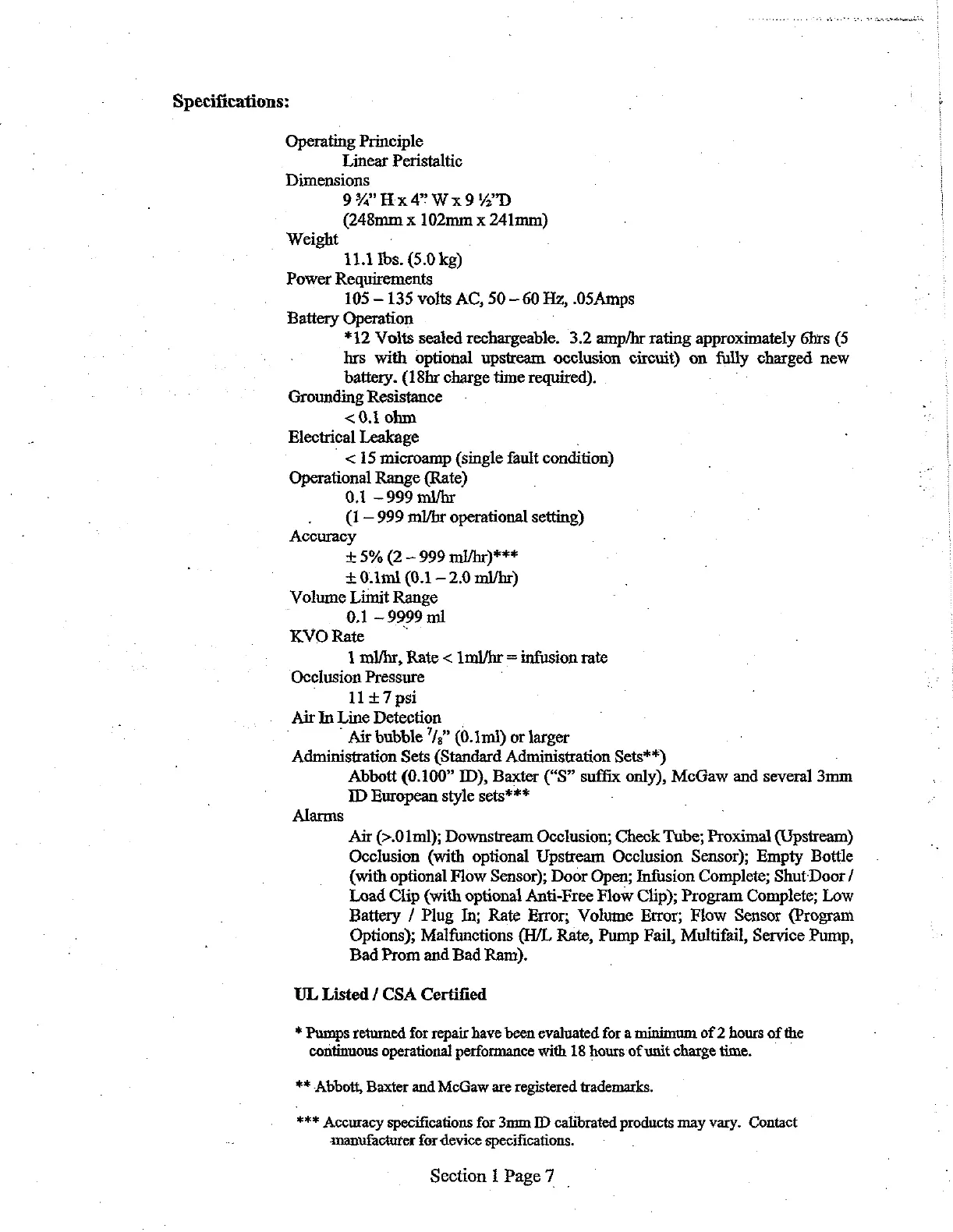

Specifications:
Operating Principle
Linear Peristaltic
Dimensions
93 Hx 427 Ух9 ур
(248mm x 102mm x 241mm)
Weight : .
11.1 Ibs. (5.0 kg)
Power Requirements
105 — 135 volts AC, 50 一 60 Hz, .05 Amps
Battery Operation
*12 Volts sealed rechargeable. 3.2 amp/hr rating approximately 6hrs (5
hrs with optional upstream occlusion circuit) on fully charged new
battery. (18hr charge time required).
Grounding Resistance
<0.1 ohm
Electrical Leakage
< 15 microamp (single fault condition)
Operational Range (Rate)
0,1 — 999 mi/hr
(1 — 999 ml/br operational setting)
Accuracy
+ 5% (2 — 999 mi/hr)***
+ 0.iml (0.1 — 2.0 ml/hr)
Volume Limit Range
0.1 ~ 9999 mi
KVO Rate -
1 ml/hr, Rate < Iml/hr = infusion rate
Occlusion Pressure
1147 psi
Air In Line Detection
” Air bubble 7/8” (0.1ml) or larger
Administration Sets (Standard Administration Sets**)
Abbott (0.100” ID), Baxter (“S" suffix only), McGaw and several 3mm
ID European style sets***
Alarms -
Air (>.01ml); Downstream Occlusion; Check Tube; Proximal (Upstream)
Occlusion (with optional Upstream Occlusion Sensor); Empty Bottle
(with optional Flow Sensor); Door Open; Infusion Complete; Shut Door /
Load Clip (with optional Anti-Free Flow Clip); Program Complete; Low
Battery / Plug In; Rate Error; Volume Error; Flow Sensor (Program
Options); Malfunctions (H/L Rate, Pump Fail, Multifail, Service Pump,
Bad Prom and Bad Ram).
UL Listed / CSA Certified
* Pumps returned for repair have been evaluated for a minimum of 2 hours of the
continuous operational performance with 18 hours of unit charge time.
++ Abbott, Baxter and McGaw are registered trademarks.
*** Accuracy specifications for 3mm ID calibrated products may vary. Contact
manufacturer før device specifications.
Section 1 Page 7 |
