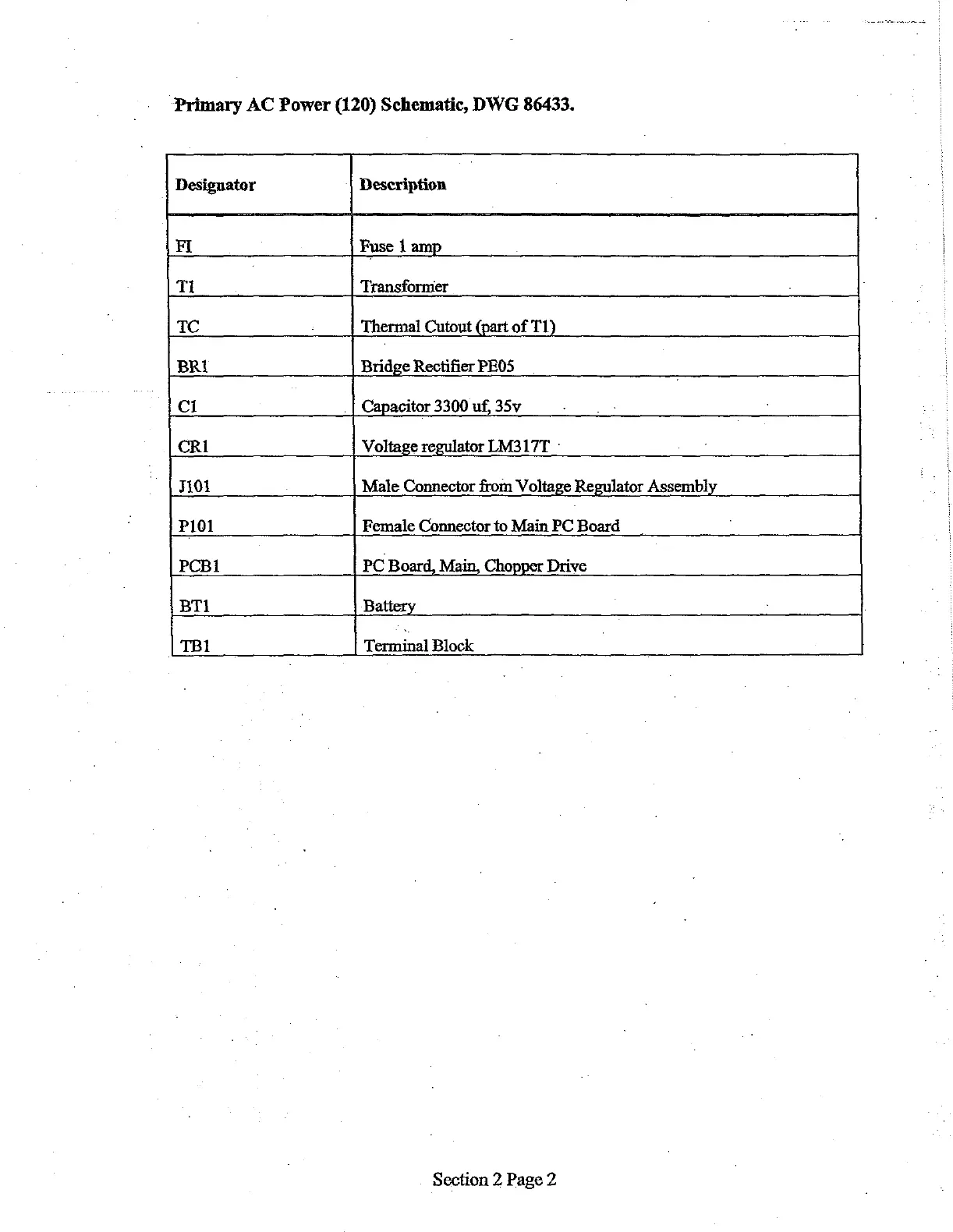

“Primary AC Power (120) Schematic, DWG 86433.
Designator Description
FI Fuse 1 amp_
11 Transformer
TC Thermal Cutout (part of TU)
BRI Bridge Rectifier PEOS
Ci Capacitor 3300 uf, 35v
CRI Voltage regulator LM317T :
J101 Male Connector from Voltage Regulator Assembly
P101 Female Connector to Main PC Board
PCBi PC Board, Main, Chopper Drive
BTI Battery |
TBI Terminal Block
Section 2 Page 2
