Signal 400 User Manual

Installations
RISK of damage to the unit
Mechanically handling the unit may result in damage. Do not connect the unit to the power
supply before or during assembly. Connect the unit as below instructed.
NO HOT PLUG AND CONNECT THE CABLE
AS FOLLOWING STEPS.

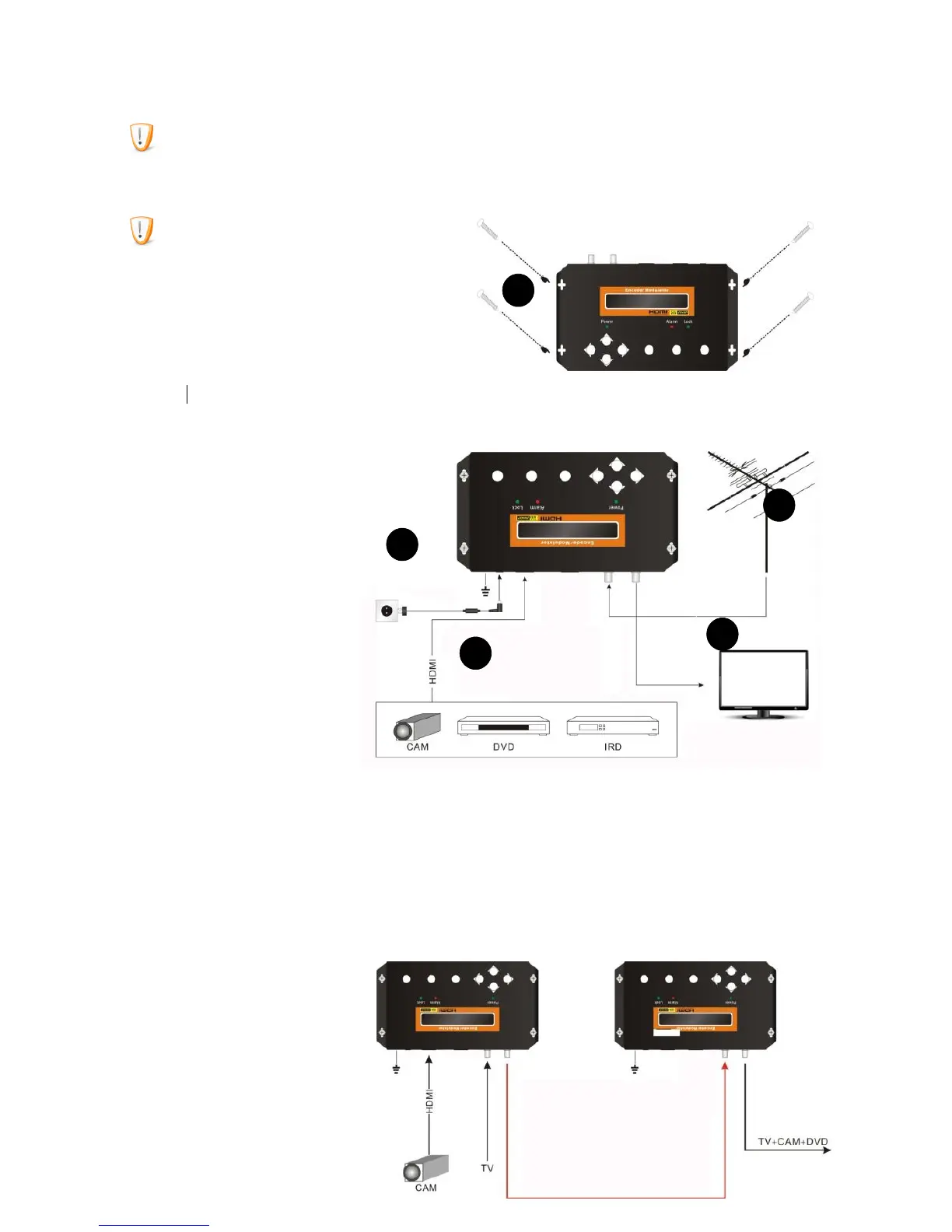

1. Mount
and tighten the screws and plugs to secure the unit
to the wall. Left 10 cm of free space around from
each unit.
2. C
onnect the signal input in the
respective connectors. The
signal source can be from a
surveillance monitor, DVD,
set-top box, CCTV and etc.
3. O
ptionally, connect the
loop-through RF input coaxial
cable.
4. Connect cable to RF output to
STB/TV.
5. Power supply connection: a) Connect the earth cable; b) Connect the power plug to the unit mains connector; c)
Connect the power plug to the mains socket.
Cascade Installation
SIGNAL-400 unit has 1 TV signal to RF output encoded as DVB-T Digital TV signal.
Several SIGNAL-400 units can be
cascaded in order to increase the
capacity. The maximum capacity of
a series of N units is 1xN
incorporated TV signals. To
cascade 2 or more units, connect
1
2
3
4
5

Signal 400 Specifications

General

Data Rate	10/100 Mbps
Operating Temperature	0°C to 50°C
Data Transfer Rate	10/100 Mbps
Fiber Connector	SC
Connector	RJ45
Fiber Type	Multimode
Wavelength	1310 nm
Distance	2 km
Humidity	5% to 90% non-condensing
