Signal 400 User Manual

CHAPTER 1 Product Introductions
General Description
SIGNAL-400 series HD encoder & modulator is DIPOL’s consumer electronics which allow audio/video signal
input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage,
shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video
signals into DVB-T RF out.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and
antenna etc. its output signal is to be received by a DVB-T standard TVs or STBs etc.

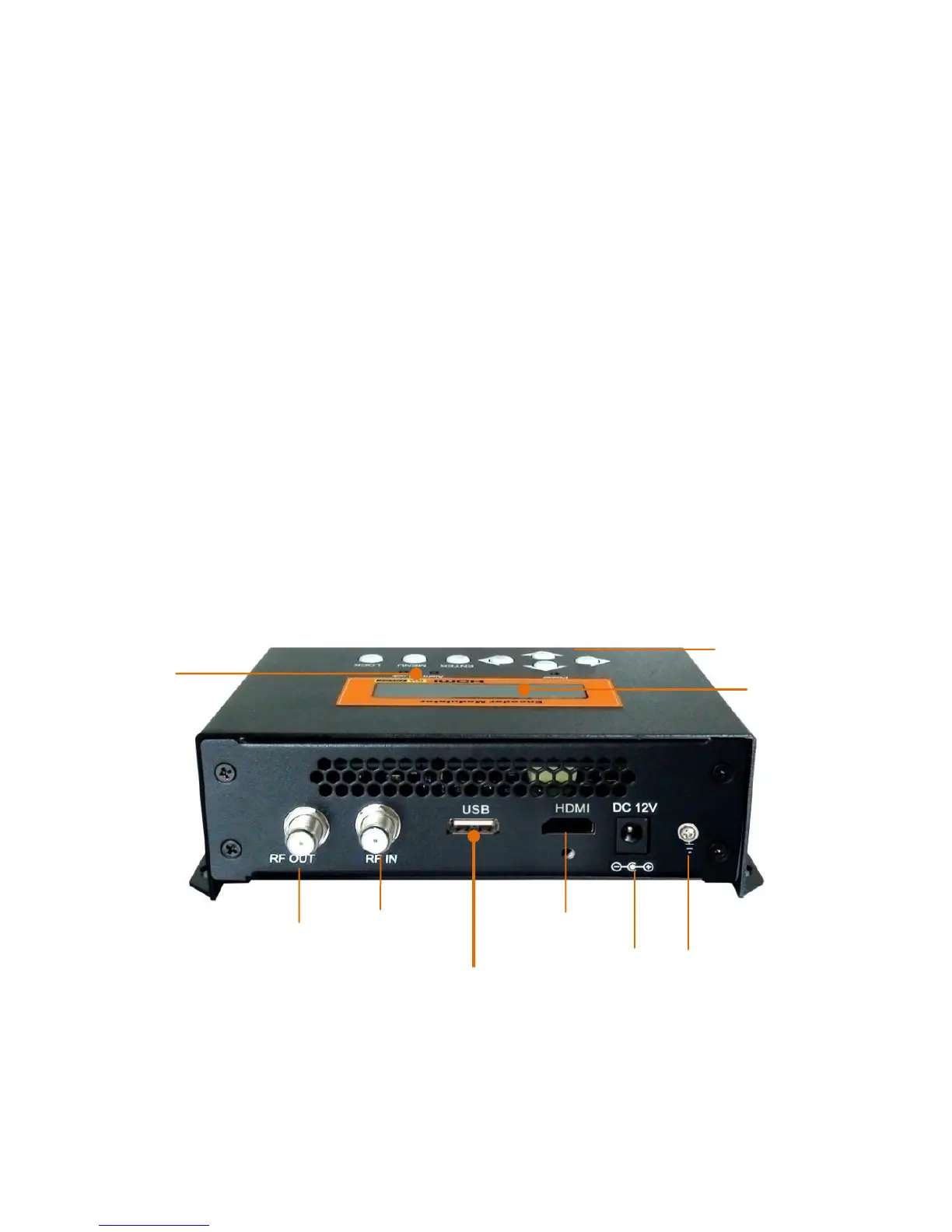

DC 12V
Grounding
RF out
RF mix in
USB Port for Upgrade
HDMI in
Control Buttons
Indicators
LCD Window

Signal 400 Specifications

General

Data Rate	10/100 Mbps
Operating Temperature	0°C to 50°C
Data Transfer Rate	10/100 Mbps
Fiber Connector	SC
Connector	RJ45
Fiber Type	Multimode
Wavelength	1310 nm
Distance	2 km
Humidity	5% to 90% non-condensing
