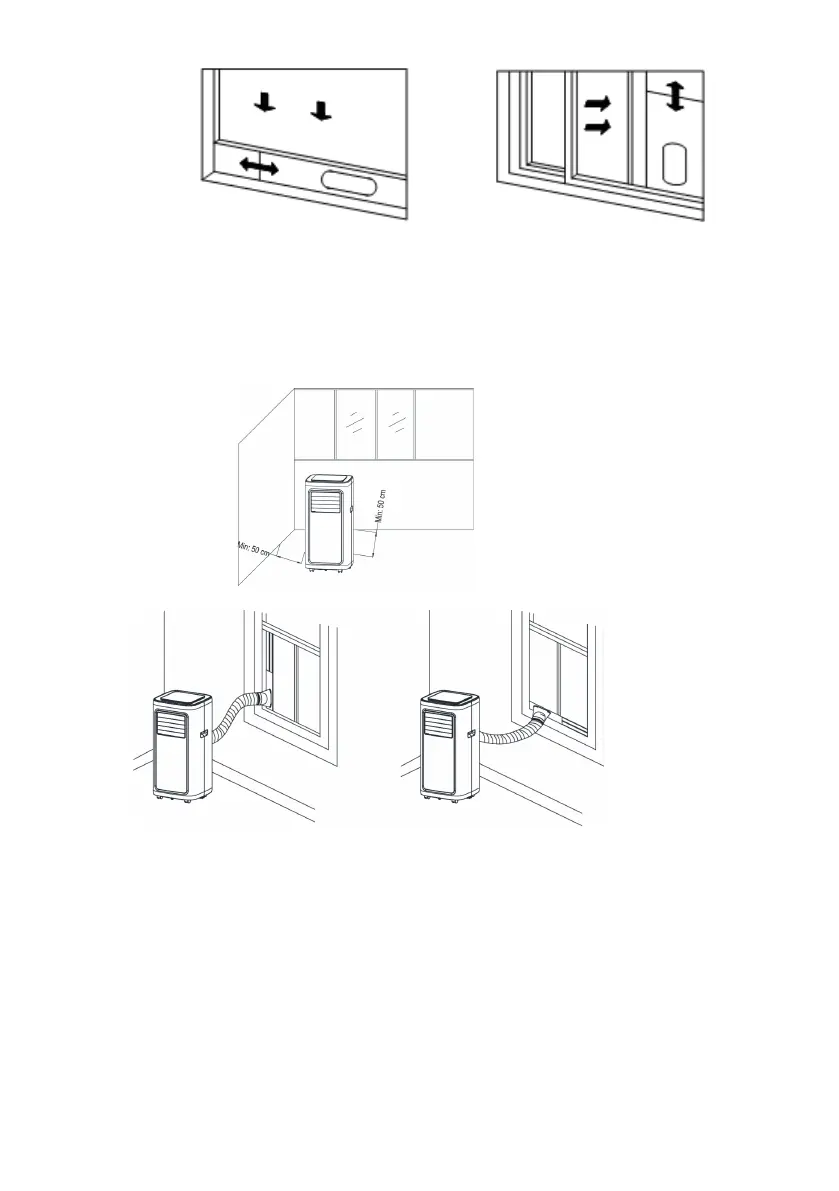

Install the body
Move the machine with installed heat pipe and fittings before
the window, and the distance between the body and walls or
other objects shall be least 50 cm (as shown in Fig.4).
Figure4
Figure5 Figure6
Important Notice:
The length of the exhaust hose shall be
280~1,500mm, and this length is based on the
specifications of the air conditioning. Do not use
extension tubes or replace it with other different
hoses, or this may cause a malfunction. Exhaust host
must be not blocked; otherwise it may cause
overheating.
Figure 2 Figure 3
36
