Install the heat pipe assembly（ as shown in Fig.1）

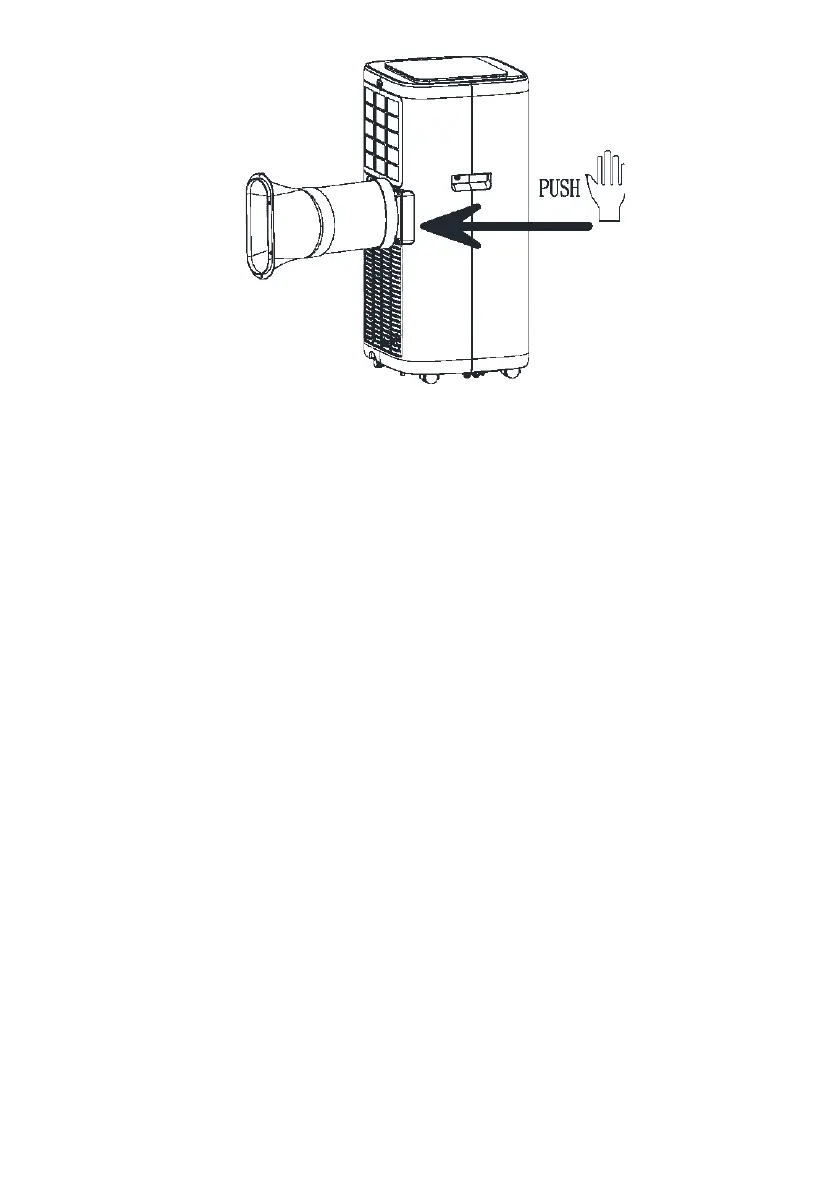

Figure 1
take out the outer connector assembly and the
exhaust pipe assembly, and remove the plastic bags;
insert the heat pipe assembly (the end of the exhaust
joint) into the back panel vent slot (push to the left)
and complete the assembly (as shown in figure 1).
Installation of window sealing plate components
Half open the window，and mount the window sealing
plate assembly to the window (as shown in Fig.2 and
Fig.3).Components can be placed in horizontal and
vertical direction.
Pull various components of the window sealing plate
assembly open, adjust their opening distance to
bring both ends of the assembly into contact with the
window frame, and fix various components of the
assembly.1.2 Install the window sealing plate
assembly Notes:1） the flat end of the exhaust pipe
joints must be snapped into place.
The pipe cannot be distorted nor has substantial
turning (greater than 45 °). Keep the ventilation of the
exhaust pipe not blocked.
