Signature SDW6001A+ - Water Connection and Drain Hose Setup

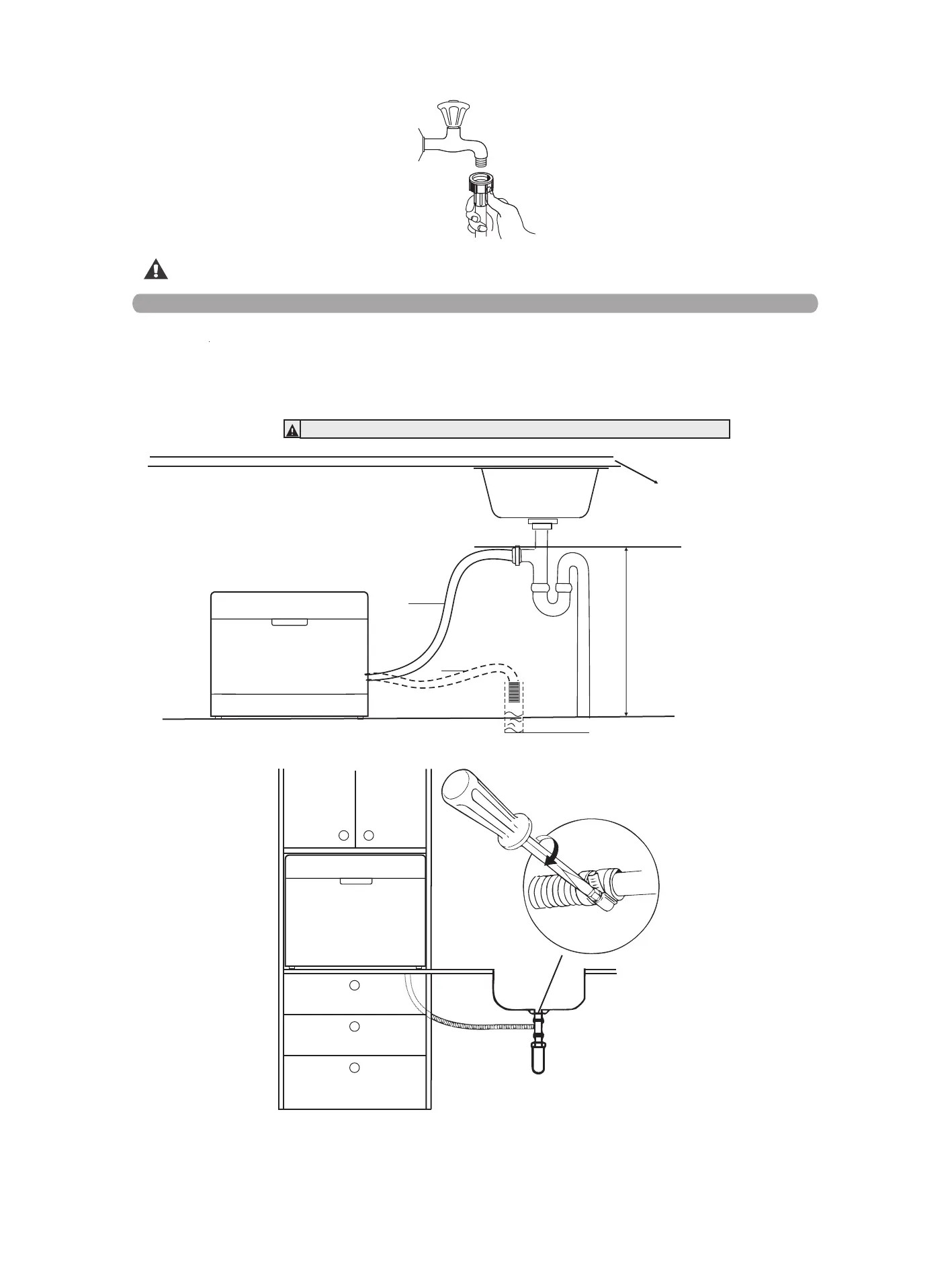

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it
run into the sink, making sure to avoid bending or crimping it. The free end of
the hose must be at a height lower than 60cm and must not be immersed into
water to avoid the backflow of it.
MAX600mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
600mm.
φ 40mm
B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
Connection of drain hoses
-51-
WARNING!
Please close the hydrant after using.
