silavent SVC6 - Assembly and Fitting; Disassembly and Reassembly

ASSEMBLYANDFITTING
OFSVC6
(seeCAUTIONandWARNINGonpage9)
MODELS:SVC150BwithSPEEDCONTROLLERANC841A
DISASSEMBLY

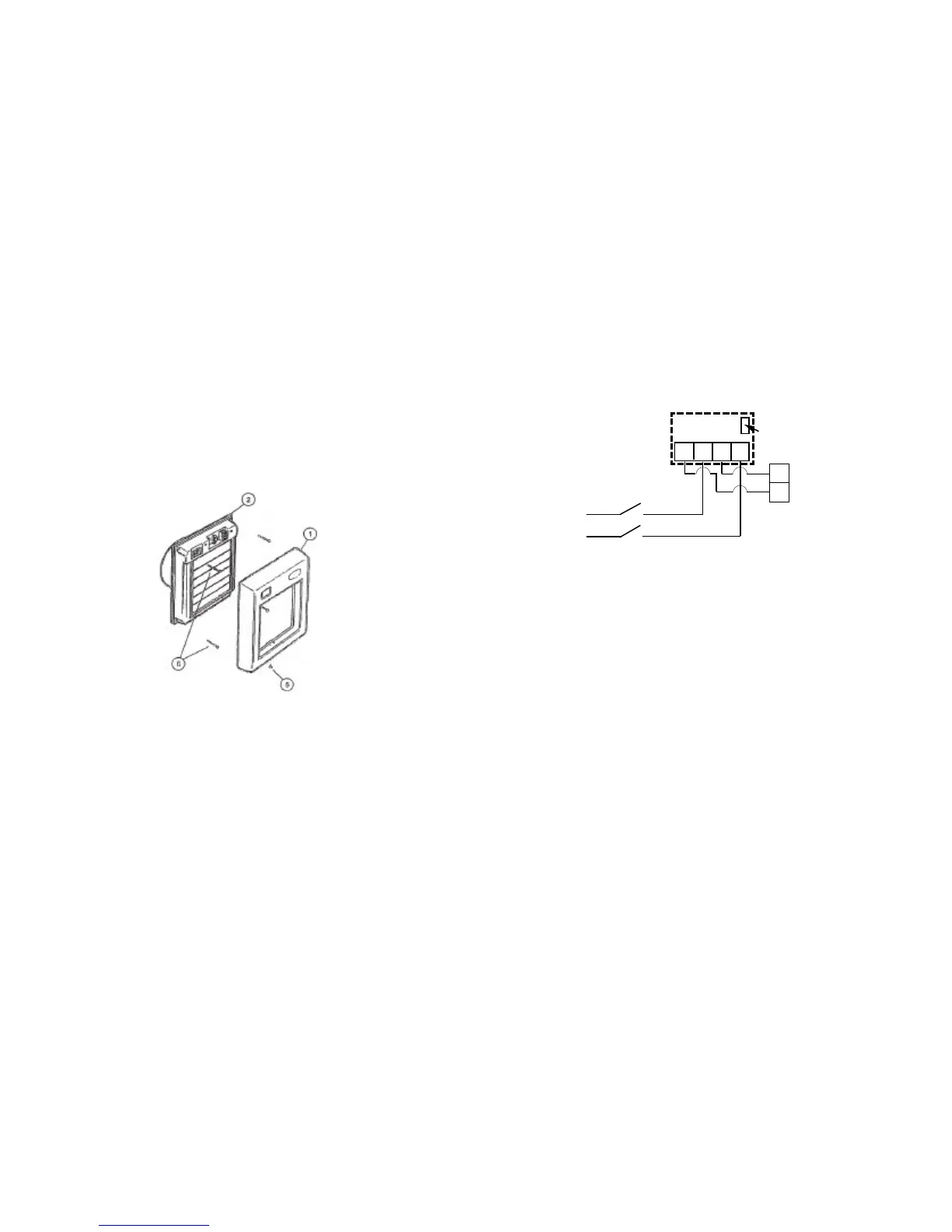

Remove front cover retaining screw (5) and lift off front cover (1), see note below.
REASSEMBLY
Reassemble the fan unit in reverse order. When reassembling the fan unit it is important
not to over-tighten any screw or the clamp nuts.
NOTE: Liftingthetopedgeofthefrontcoverwillmakeiteasiertoremove.
WARNING
Positioning of the fan unit must be so as to avoid back flow of gases from open flue gas
or other open fire appliances. To prevent combustion gases entering the air inlet, this air
inlet must not be positioned above or within 1.5 metres of a combustion flue vent.
CAUTION
Fans incorporating electronic control systems may be damaged if used in conjunction
with fluorescent lamps.
IFINDOUBT,PLEASECONTACT
CUSTOMERSERVICESON
08443715523
SPEED
CONTROLLER
SLOW
SPEED
ADJUSTMENT
ISOLATOR SWTCH
1 2 3 4
N
L
L
N
SpeedControlTerminals FanTerminals
1-Fan Line N- Neutral
2- Live In L- Live
3- Fan Neutral
