c) Fuse box

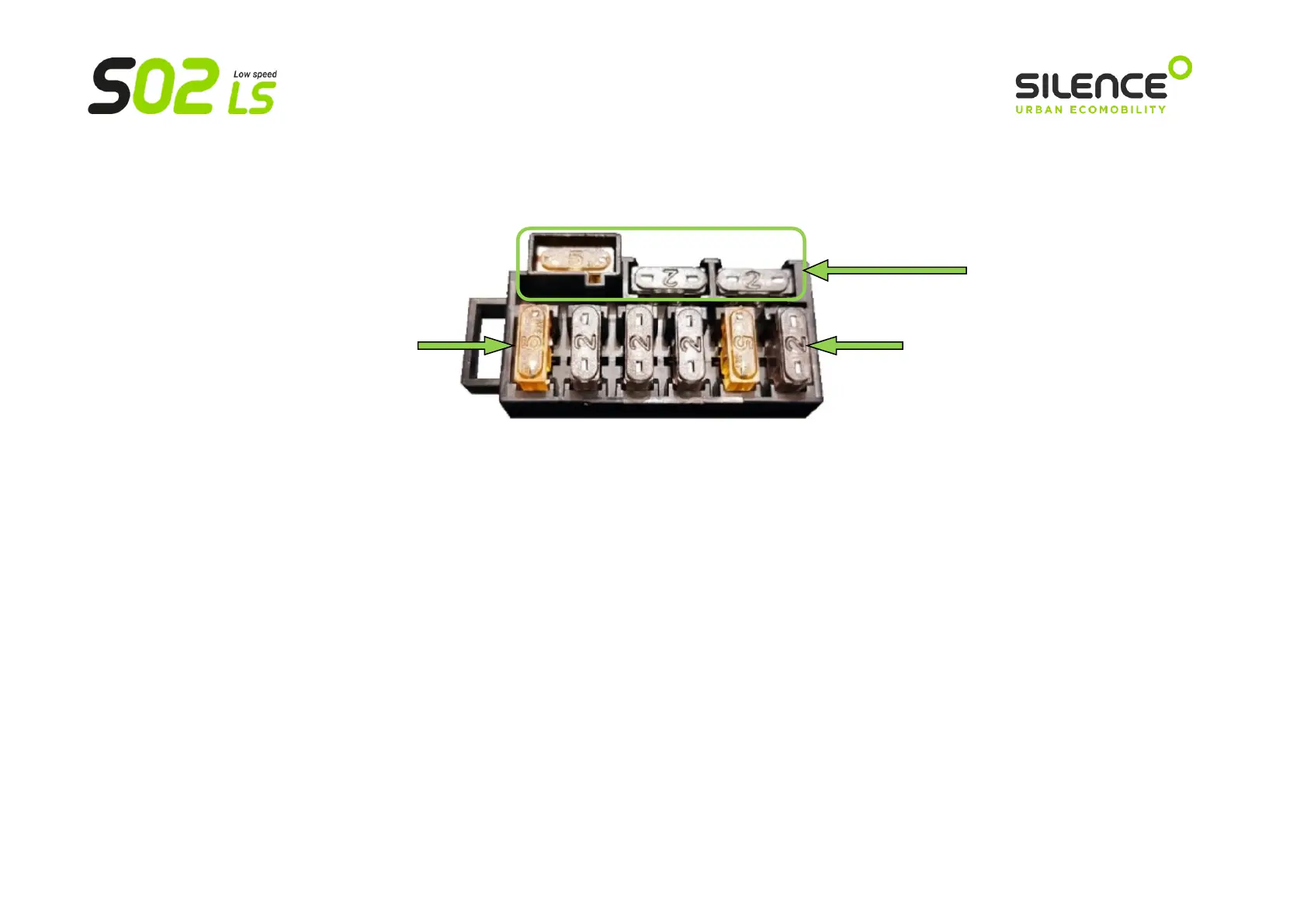

The fuse box is located under a protective lid, inside the seat compartment:
The scooter has 6 fuses, from right to left in the image (or from rear to front, with respect to the direction of travel):
- F1 (Grey/black): 2A fuse to protect the USB port.
- F2 (Orange/yellow): 5A fuse protecting the power source for lights, horn, etc. (12 VDC/VDC socket).
- F3 (Grey/black): 2A fuse protecting the DC/DC converter (60 VDC/VDC inlet).
- F4 (Grey/black): 2A fuse protecting the inverter (MCU).
- F5 (Grey/black): 2A fuse protecting the second 60 VDC/VDC inlet (installed on some versions).
- F6 (Orange/yellow): 5A fuse protecting the second 12 VDC/VDC outlet (installed on some versions).
There are another 3 spare fuses, as shown on the top of the image.
