c) Light ring
Information on the battery charge level is available, whether or not the battery is in the scooter, on an LED light ring on one side of the battery pack. Just touch
the inside of the ring lightly for the following information:
NOT CHARGING: when you touch the centre of the ring, it will show red and blue light trails, each moving around the ring in opposite directions. Following this,
it will be shown in turquoise, and then the remaining charge will be indicated as a portion of the ring lit up in green (or the whole ring if the battery is 100%
charged). When the battery charge is low, the entire ring will be shown in red.
CHARGING: while the battery is charging, a green light trail moving around the ring will alternate with a portion of the ring lit up, showing the percentage of the
battery that is charged. When it reaches 100%, the ring will be all green with a blue light trail moving around the ring while it is plugged in.

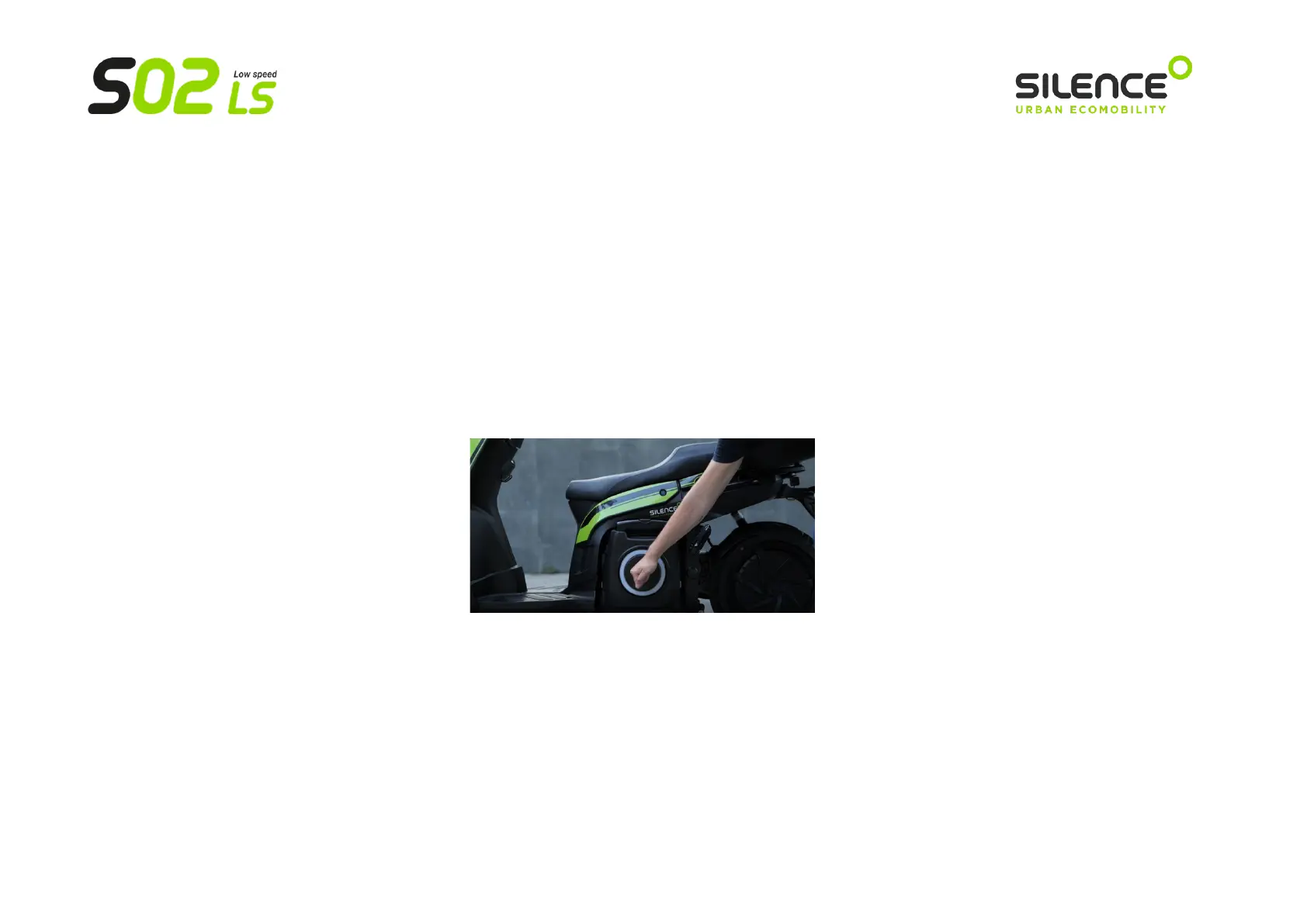

(The model shown may not correspond to the model described in the manual)
If the scooter ignition is on, the ring will not light up under any circumstances.
