IM_FULL_50SL_REV-A 3
ADS or Fortin
Data Bus Module

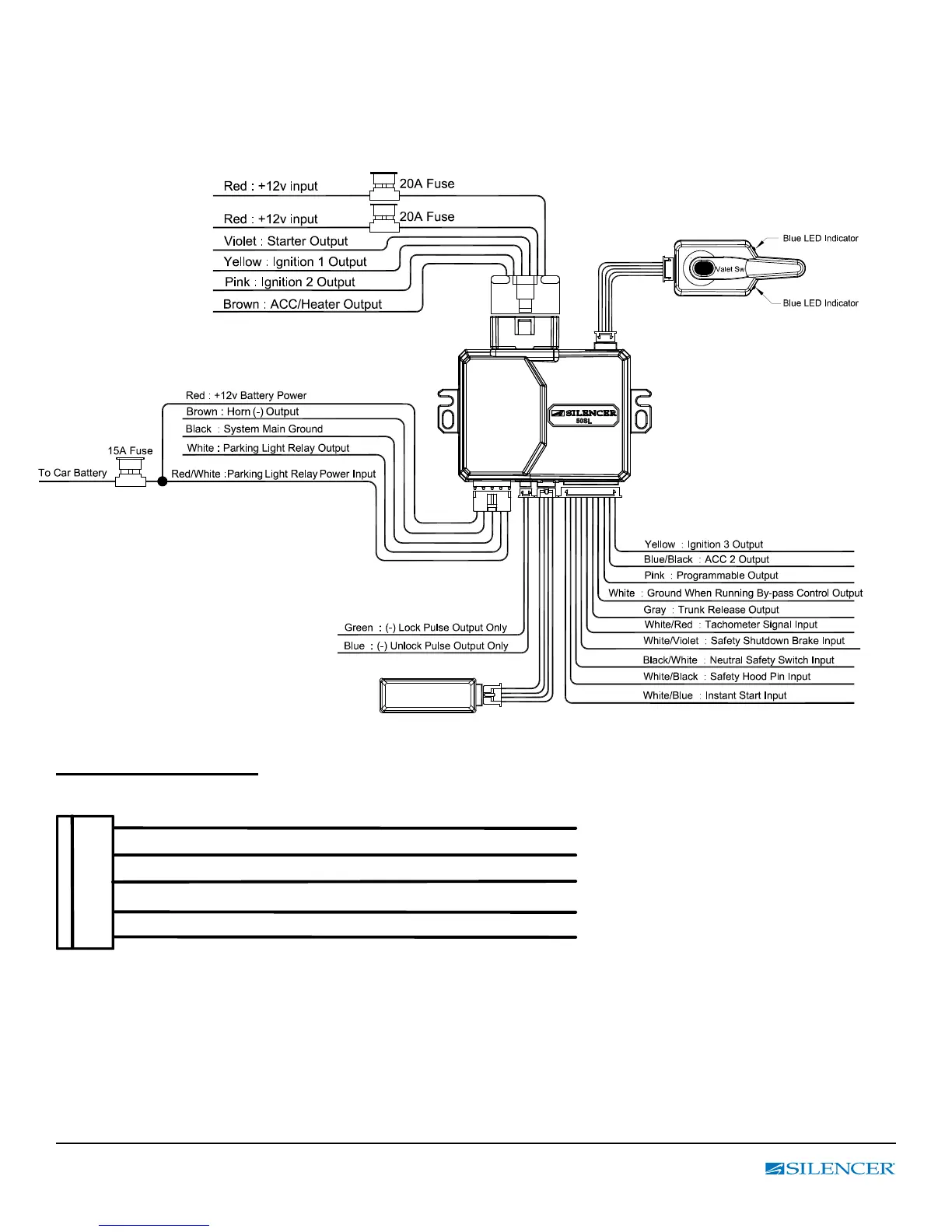

INSTALLATION DIAGRAM
INSTALLATION DIAGRAM
Main Power Connector
RED / WHITE: PARKING LIGHT RELAY INPUT
WHITE: PARKING LIGHT OUTPUT
BLACK : MAIN SYSTEMS GROUND
BROWN : NEGATIVE HORN OUTPUT (-)
RED : FUSED 12 VOLT (+) BATTERY POWER
