OSIRIS INSTALLATION GUIDE
Commercial in Confidence 16/26

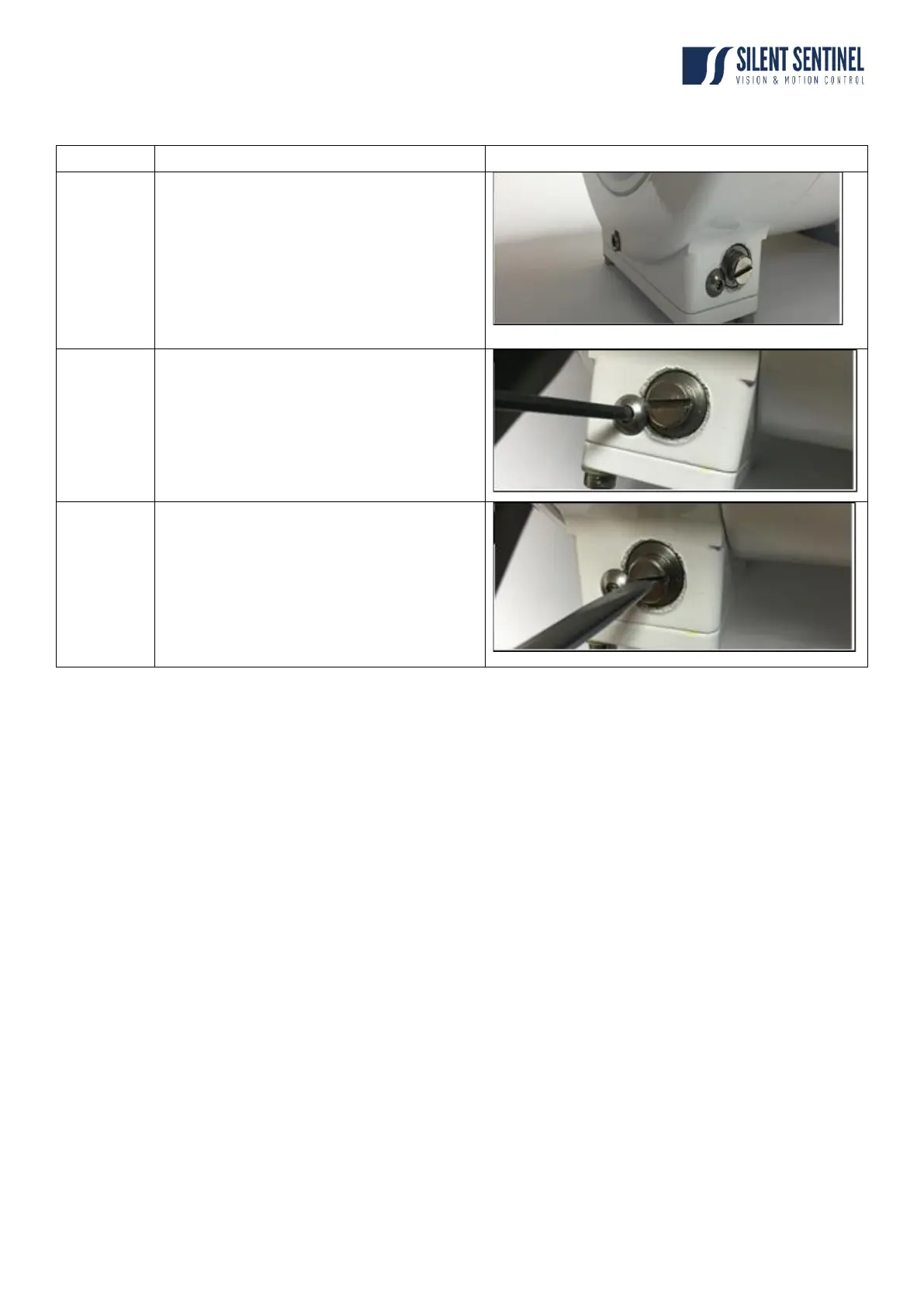

Vertical Adjustment
The cover is secured by four screws
requiring an M3 Allen key tool.
Using an M3 Allen key, loosen (do
not remove) the locking screw that is
located beside the adjustment wheel.
The vertical action can now be made
by turning the adjustment wheel using
a chisel-tip (slot) screw driver.
Turn the wheel until the centre-line of
the picture corresponds to the centre
of the target.
