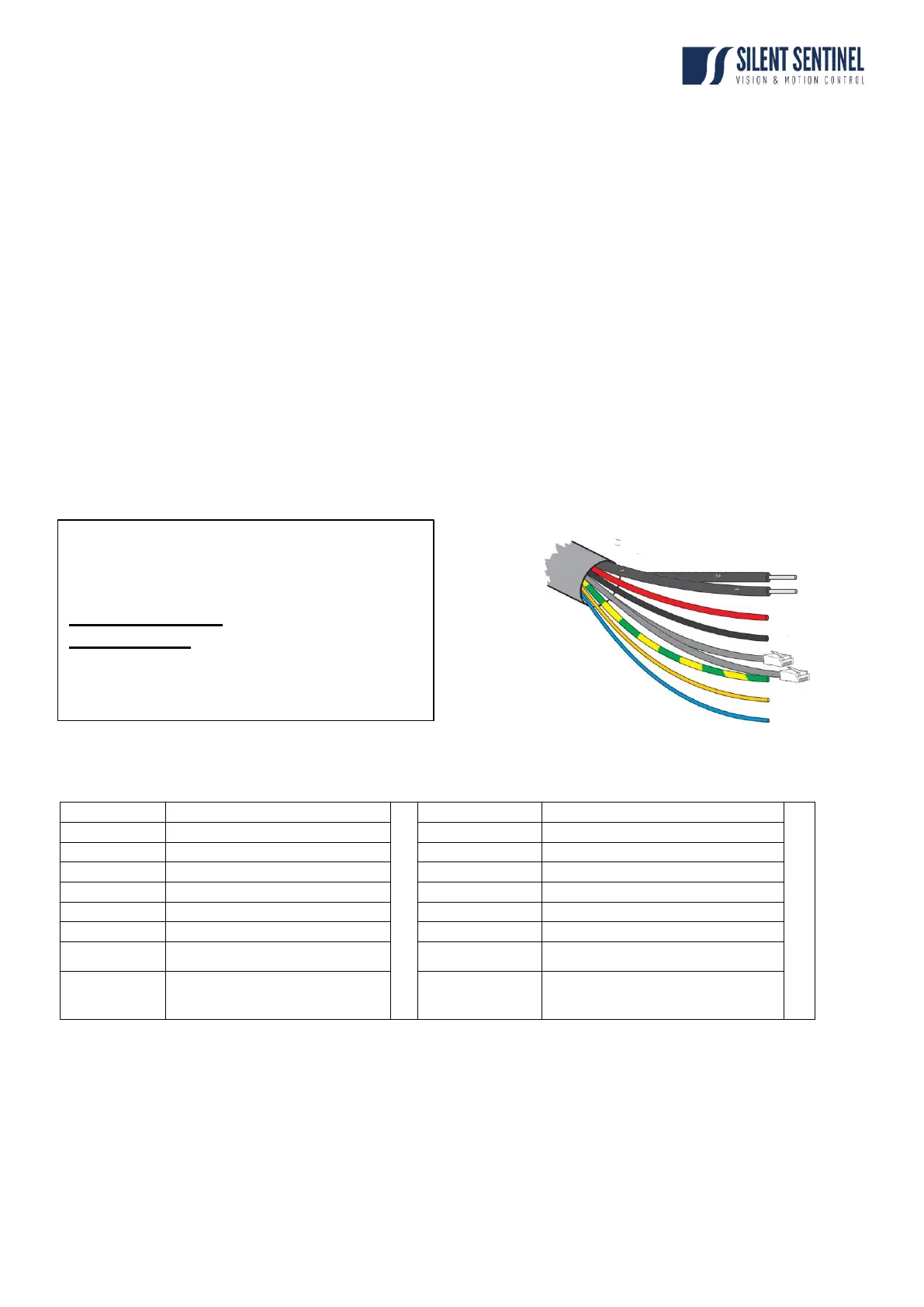

ANNEX 2 - Cable Information
Cable Overview
The UCM cable supplied with the Osiris can come in various lengths (up to 50m) and in two
different formats;
1. Double ended;
a. Each end of the Aeron cable is terminated with a UTS6JC14E19S Connector
i. This is typically the case if a pre-terminated PSU is purchased.
2. Bare Ended
a. The Aeron end is terminated with UTS6JC14E19S the Connector
b. The PSU end of the Cable is left as ‘flying leads’ with only the RJ45 and BNC
conductors terminated.
Cable Pin Out
Multiway Cable Conductor Assignments.
Conductor
Function

Conductor
Function

Red
PTZ Power + (Pos) [26-32VDC]

Green/Yellow
Earth (Chassis)

Black
PTZ Power - (Neg)

Grey (Drain wire)
Cable screen – overall multicore shield.


Orange
Aux / Washer Relay Pos – (Specific models only)

Coaxial 1
Composite Video 1 - miniRG59

White
Aux / Washer Relay Neg – (Specific models only)

Coaxial 2
Composite Video 2 - miniRG59

Brown
Pass-through Power Pos


Blue
Pass-through Power Neg

Yellow (UTP)
UTP - RS485 (Data +)

Cat5e - Grey
Net 1 (A) – Ethernet network – PTZ/Side camera
payloads

Blue (UTP)
UTP - RS485 (Data -)

Cat5e - Blue
Net 2 (B) – Ethernet network – Passthrough to top
payload

Netwok connection leads.
Cat5/8P8C pinout configuration – 10/100BASET
(TIA568B)
Network connectors.
Pin Function
1 Tx D+
2 Tx D -
3 Rx D+
6 Rx D -
