OSIRIS INSTALLATION GUIDE
Commercial in Confidence 7/26
Mechanical Installation
Overview
The system should be installed in the following order;
1. Pan / Tilt securely mounted to the Mast / Installation Location
2. Side Payloads
3. Cable / PSU
Note: The system should not be powered on when any of the payloads are attached.
Fixtures and Fittings;
The followings fittings are providing with the Jaeger System.

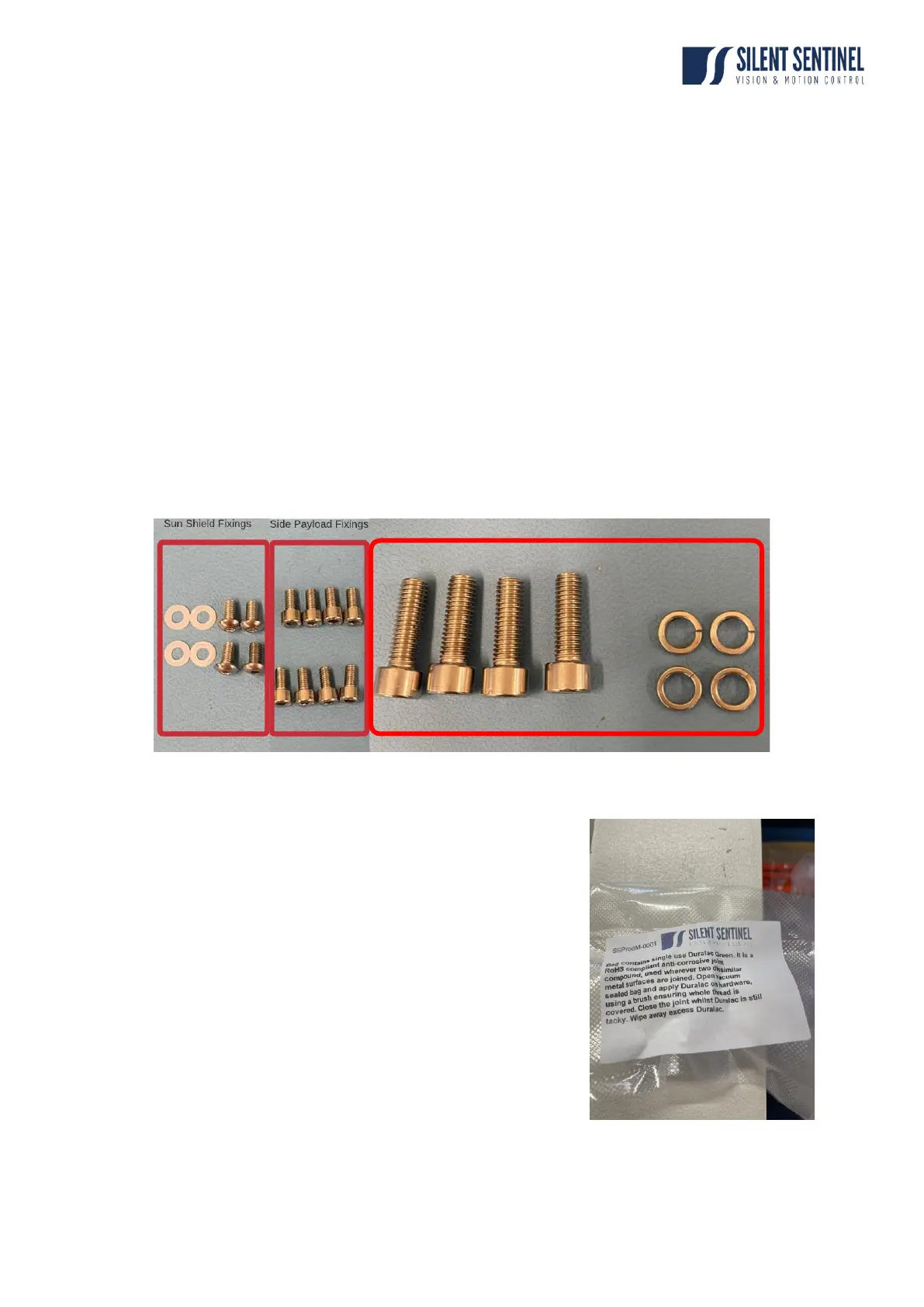

Figure 3 Jaeger Fittings
1. Sun Shield Fixings;
a. QTY4 – M4x10
b. QTY4 – M4 Nylon Washers
2. Side Payload Fittings;
a. QTY8 – M5x10
i. QTY3 for each Payload
3. Main Osiris Fittings
a. QTY4 – M8x20
b. QTY4 – Spring Washers
4. Duralac
a. To be used on all threads
