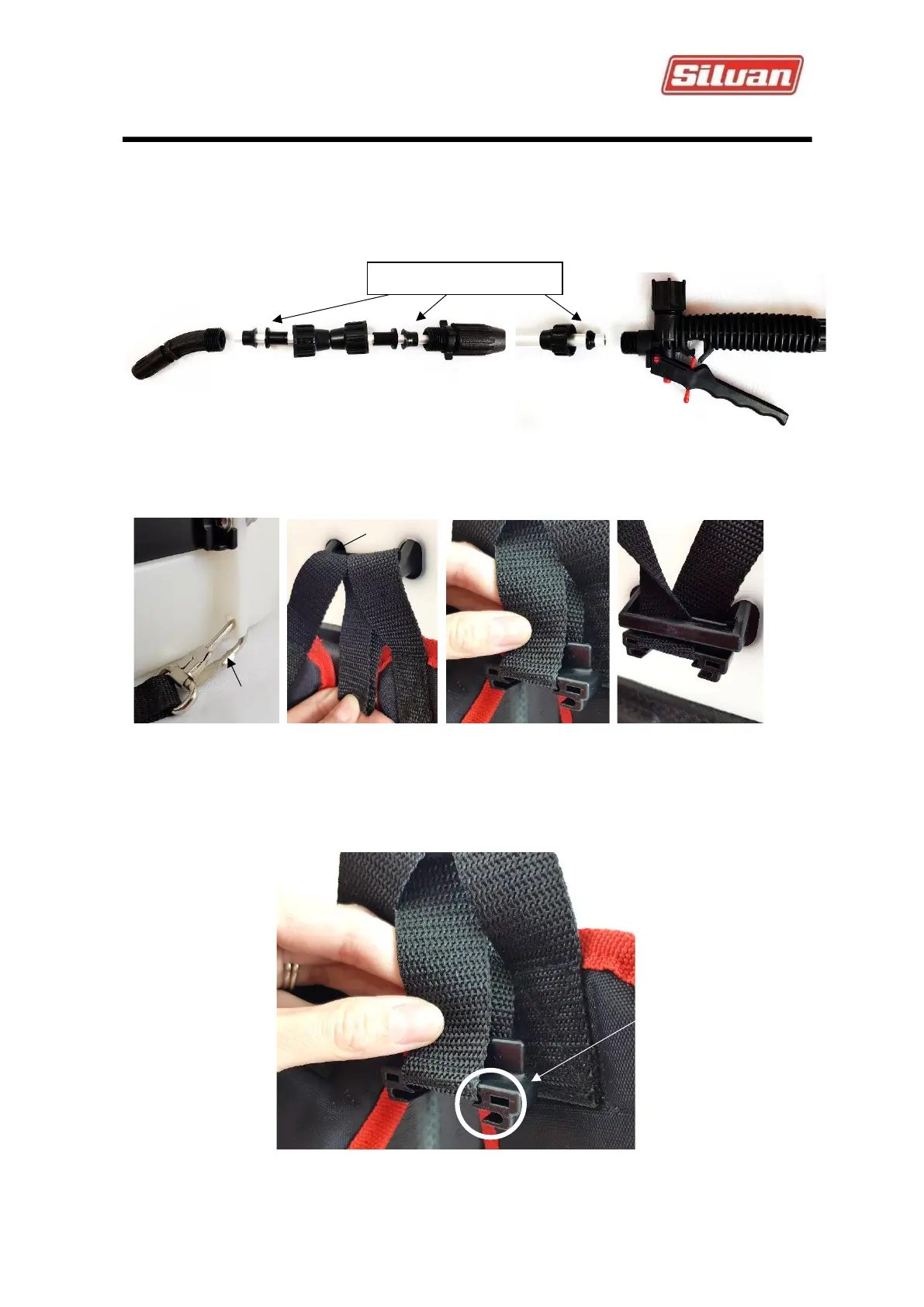

GUN ASSEMBLY:
Fit the spray lance to the gun ensuring the O-Ring is fitted. Fit the 45-degree elbow and nozzle
to the tip of the lance again ensuring the O-ring is in place.
FITTING SHOUDER STRAPS:
The backpack sprayer is supplied with a padded shoulder strap.
1. At the base of the backpack, clip the strap onto the base on both sides
2. Raise the free end of the strap to the mounting area on the back, thread strap through
slot as shown (top to bottom)
3. Fit supplied clip to hold strap in place by notching strap in the smaller groove
