Silver King SKBF1 - Side View: Skbr1 G;Skbr2 G

- 7 -
1. FEATURE CHART

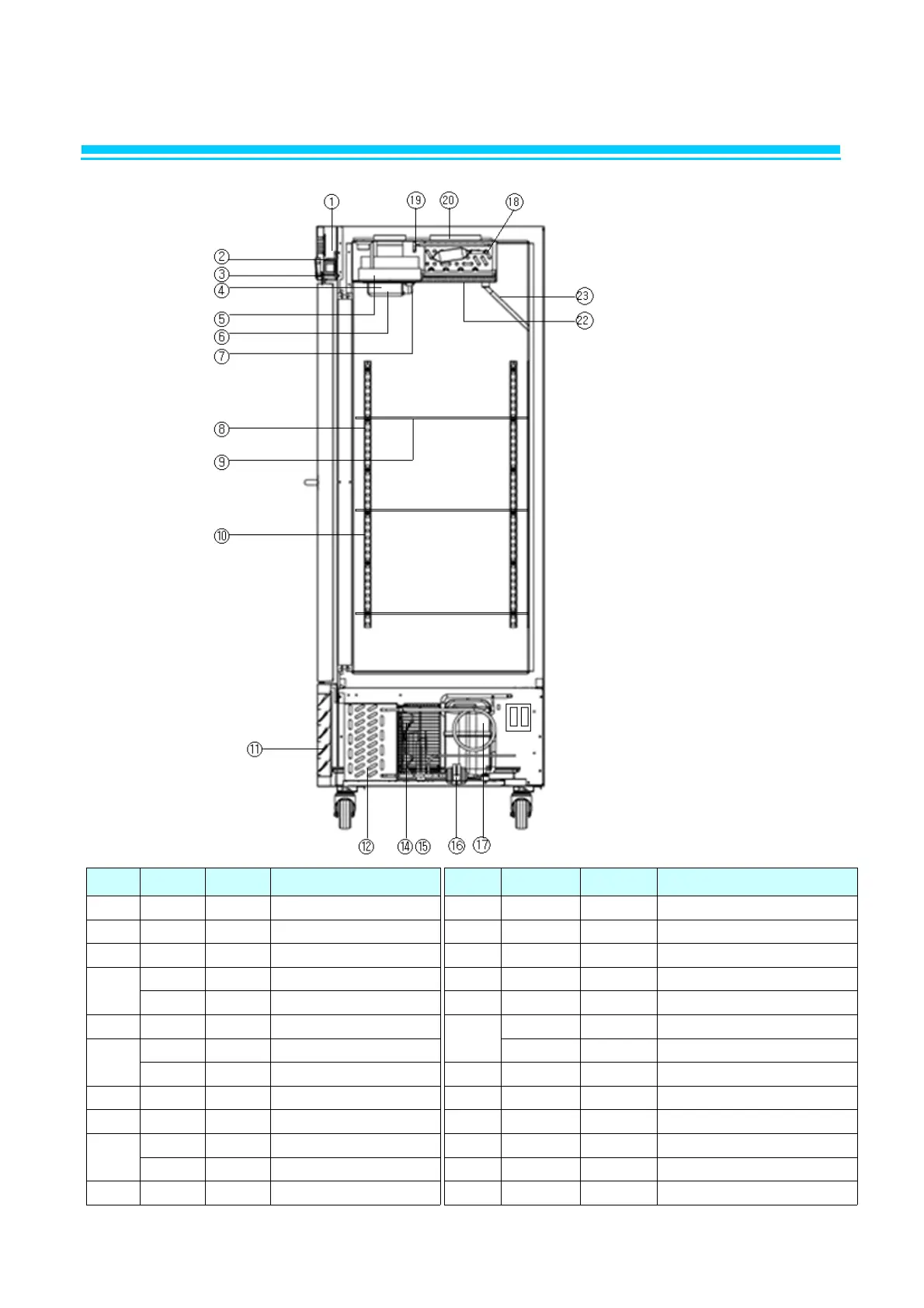

1-6. SIDE VIEW : SKBR1G/SKBR2G
Ballon SKBR1G SKBR2G Description
1 34373 34372 Top Frame Assembly
2 N/A 34378 Relay, Power
3 34375 34375 Main PCB
4
34909 34909 Lamp
34911 34911 Lamp Guard
5 34910 34910 Ballast
6
34364 34364 Evaporator Fan Motor
34365 34365 Evaporator Fan Blade
7 35089 35089 Evaporator Fan Guard
8 34387 34387 Shelf Clip
9
34897 34898 Shelf (LH on BR2G)
n/a 34899 Shelf (RH on BR2G)
10 34388 34388 Shelf Standard
Ballon SKBR1G SKBR2G Description
11 34385 34386 Bottom Grill
12 34341 34342 Condenser Coil
14 34345 34345 Condenser Fan Motor
15 34346 34346 Condenser Fan Blade
16
16
34343 34344 Drier
17
10343-82 10343-85 Compressor
10344-82 10344-85 Compressor Elec Kit
18 34357 34355 Evaporator Coil
19 35078 35078
Refrigerator Sensor (Black)
20 34369 34369 Display Sensor (White)
21 n/a n/a Evaporator Defrost Heater
22 n/a n/a
Evaporator Drain Pan Heater
23 34339 34339 Power Cord
