Silver Spring SC500-AF - Parts

DiscountRamps.com • 1-888-651-3431
Page 2Rev. 091218

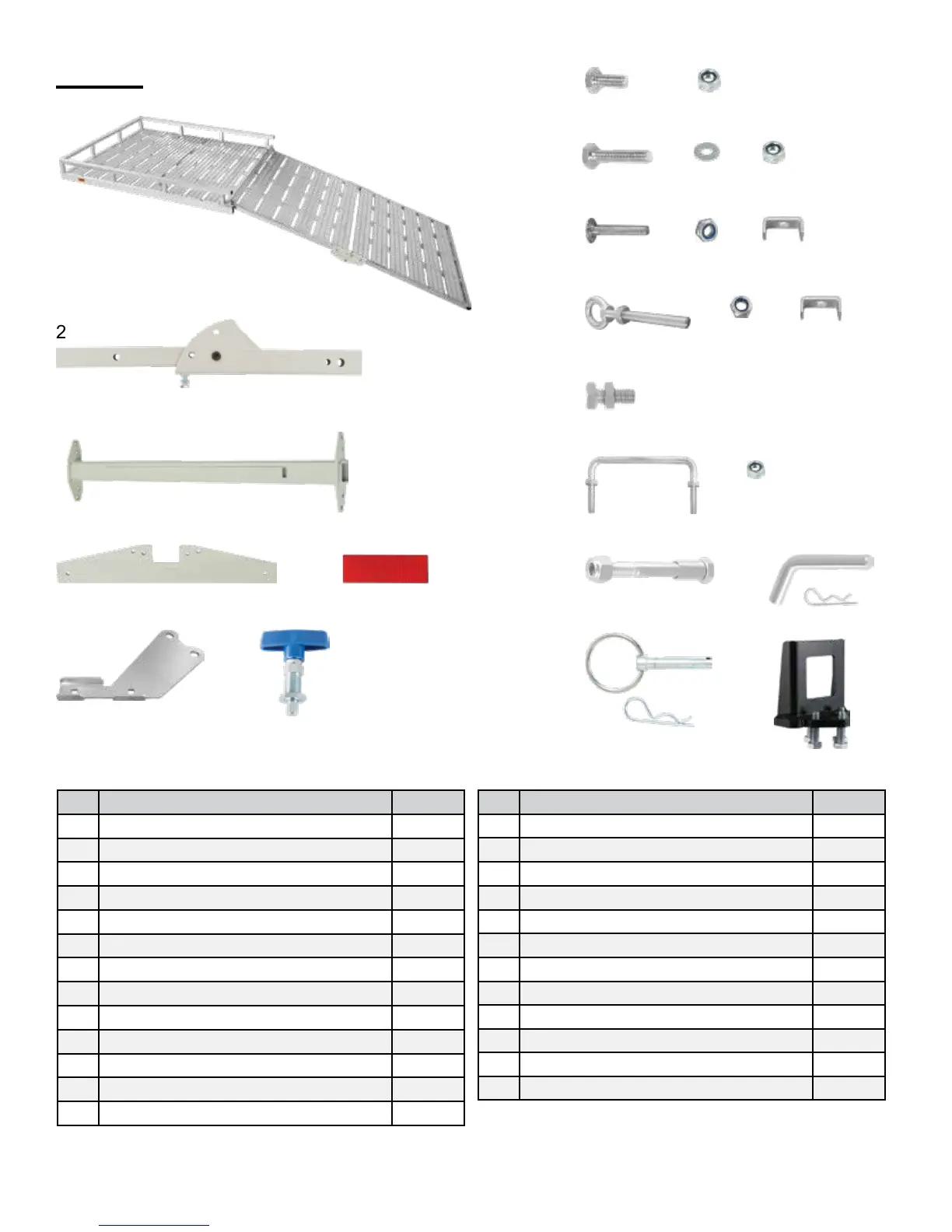

Parts
Part Description Quantity
1 Carrier 1
2 Folding Hitch Tube 1
3 Carrier Support Tube 1
4 Support Bracket 2
5 Reector 2
6 Ramp Lock Plate 1
7 Spring Pull Pin 3
8 M8x20 Support Bracket Bolt 8
9 M8 Support Bracket Nut 8
10 M8x40 Carrier Support Bolt 4
11 Washer 4
12 M8 Carrier Support Nut 4
13 M8x40 Ramp Lock Carriage Bolt 2
Part Description Quantity
14 M8 Ramp Lock Nut 2
15 Ramp Lock Bracket 2
16 M8x70 Eye Bolt 4
17 M8 Eye Bolt Nut 4
18 Eye Bolt Bracket 8
19 M14x30 Bolt with Jam Nut 2
20 Ramp Handle 1
21 Ramp Handle Nut 2
22 3/8" Pinch Bolt with 5/8" Sleeve 1
23 Hitch Pin with Clip 1
24 Pull Pin with Clip 2
25 Anti-Tilt Bracket 1
1
2
3
4 5
6 7
8 9
10 11 12
13 14 15
18
20 21
22
24
23
25
19
16 17
