DiscountRamps.com • 1-888-651-3431
Page 3Rev. 091218

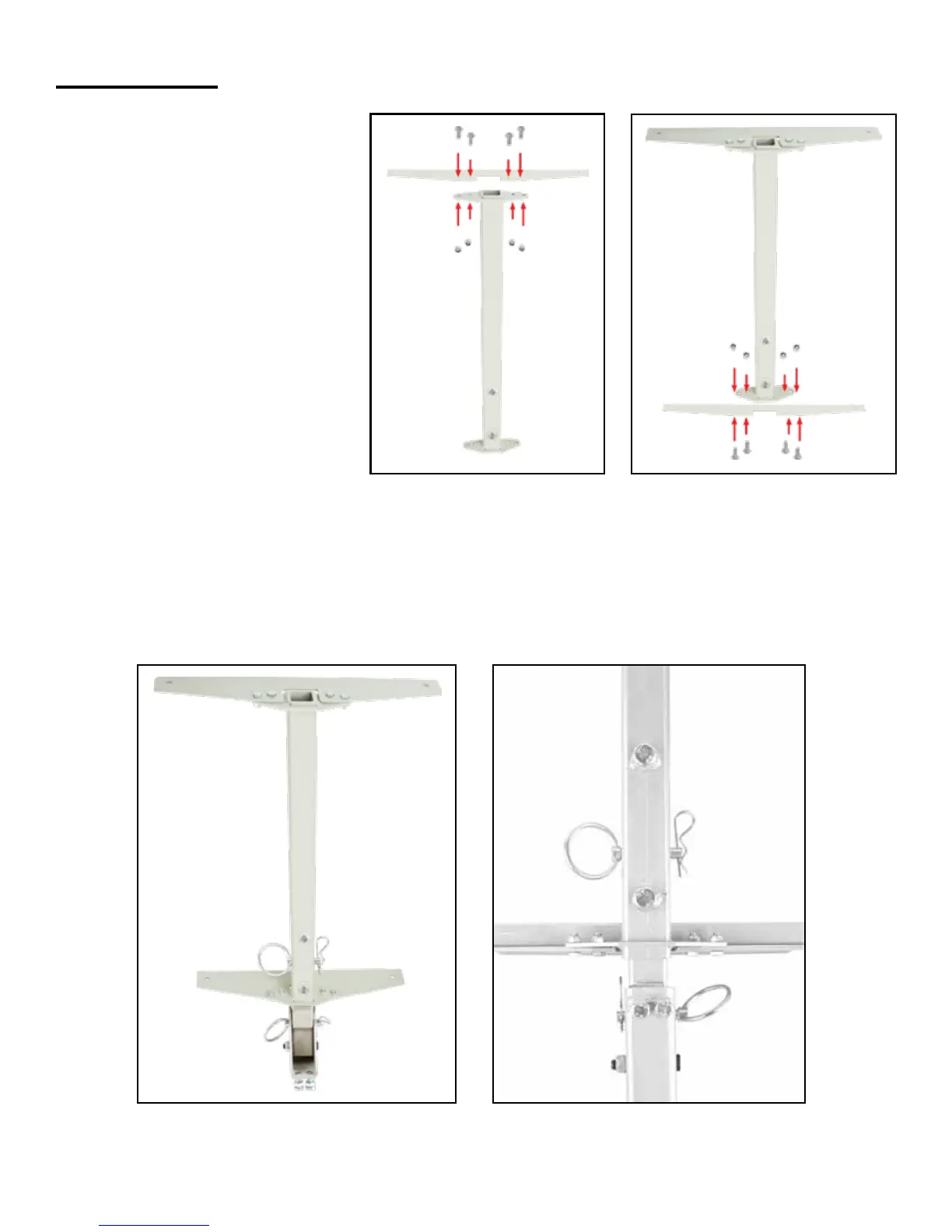

Assembly
Insert the folding hitch tube (2) into the carrier support tube (3), then lock into place with two pull pins
(24). Secure the hitch tube to the carrier tube with two bolts with jam nuts (19) using a 22mm wrench.
*Note: To properly tighten the bolts with jam nuts, rst thread the jam nut counterclockwise up to the
head of the bolt. Fully tighten the bolt into the carrier tube. Then tighten the jam nut clockwise against
the carrier tube to secure the bolt.
Step 1. Assemble the support
tube.
Bolt the support brackets (4) to
the carrier tube (3) using the
support bracket bolts (8) and
nuts (9) using 13mm and 14mm
wrenches.
*Note: Do not tighten bolts until
the next step.
3
4
8
8
9
9
4
4
4
4
24
24
3
3
2
19
19
To Next Page
