Electrical system
The electrical system of the boat contains the following main components:
1. Starter battery and operation battery
2. Wire harness

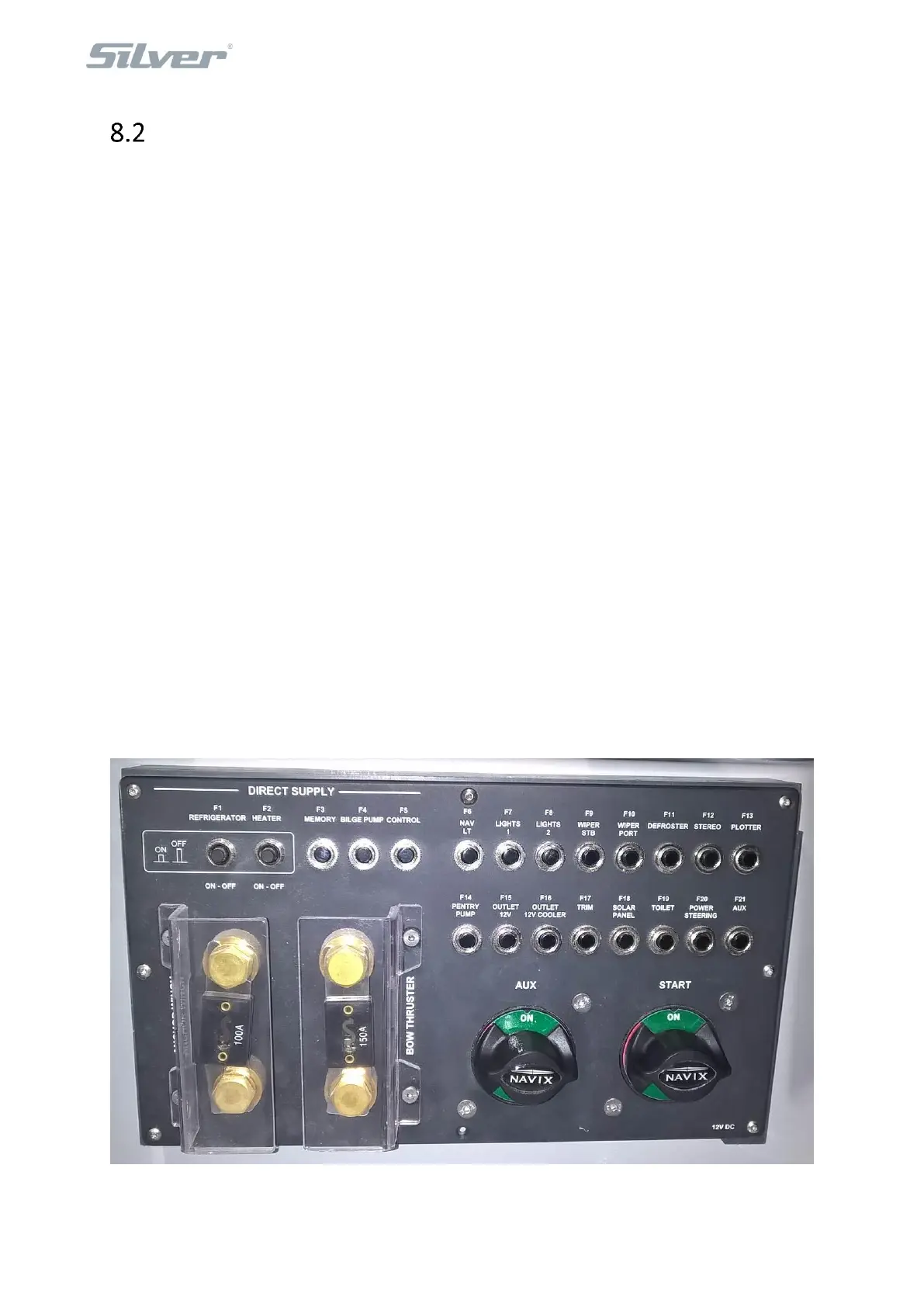

3. Main switch panel with main switches and 13 circuit breakers
4. Cabin fuse panel with 9 circuit breakers
5. 6 switches in the panel below the wheel
6. 1 USB output in cabin
7. 1 USB output in centre console
8. Navigation lights (sides and mast)
9. Headlights/searchlights (optional accessories)
10. Trim flap system (optional accessory)
11. 2 windshield wipers (port side optional)
12. Cabin light
13. Defroster for driver
14. Toilet system
15. Refrigerator (optional accessory)
16. Radio (optional accessory)
17. Bow thruster (optional accessory)
18. Anchor winch, stern or bow (optional accessory)
In addition, the engine is an essential part of the boat’s electrical system; it both generates
and consumes power.
