Silvercrest LT 1510 - Connecting External Equipment with Components Outputs; Connecting External Equipment with S-Video Output

14
Connecting the Devices

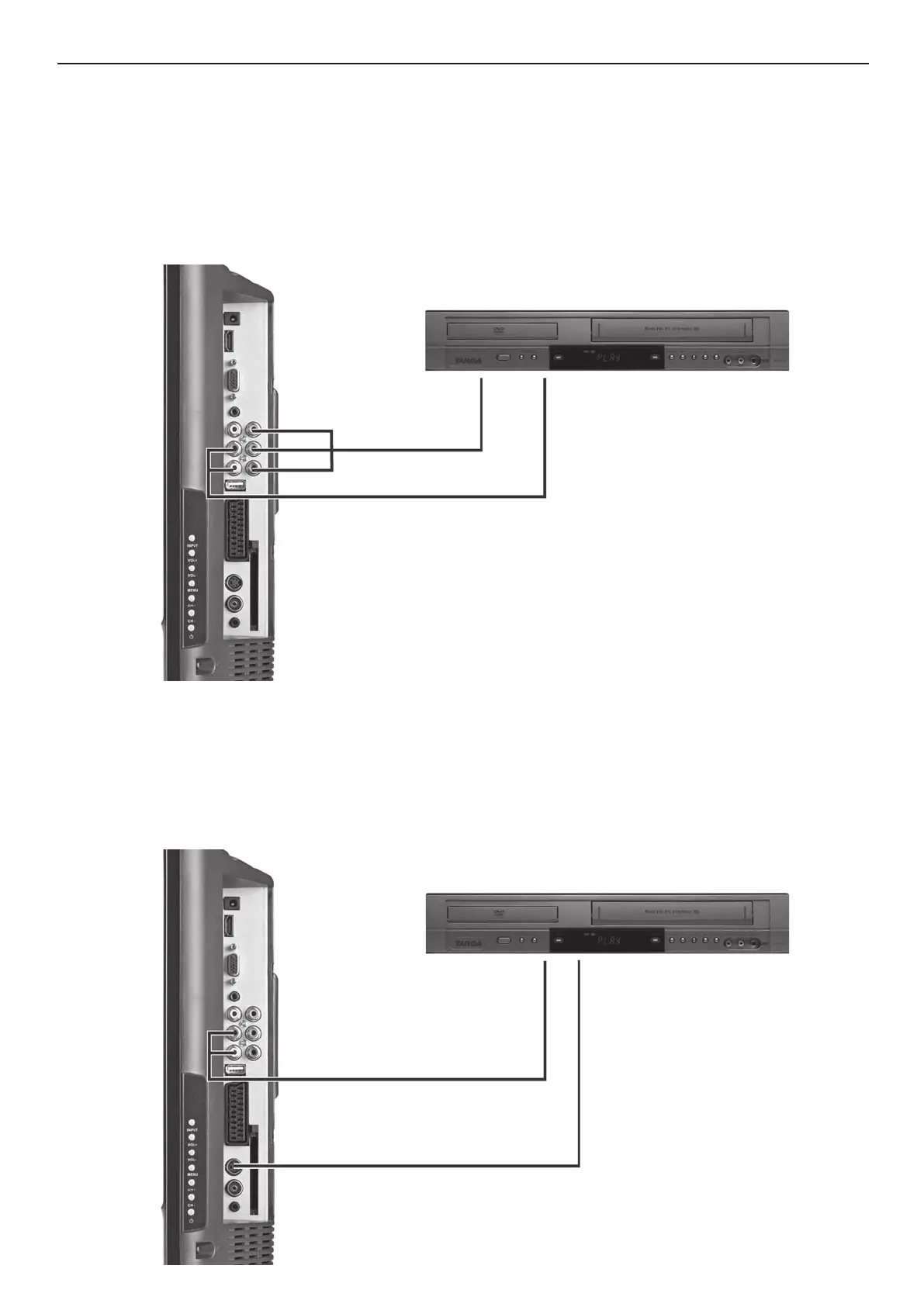

Connecting External Equipment with Components Outputs
Signal source: YPBPR
Use a triple-Cinch cable (not included) to connect this input (9) to a high-end video source. Connect
the green, blue and red cables to the corresponding receptacles of your playback device and the
LT 1510. Please note that the audio signal must be transmitted to the separate Audio connector (21).
To do this you’ll need a Cinch audio cable (not included in the package).
Cinch audio cable (red, white)
Component video
cable
Connecting External Equipment with S-Video Output
Signal source: S-VIDEO
To transmit video signals to other devices with S-Video output. Please note that the audio signal
must be transmitted to the separate Audio connector (21). To do this you’ll need a Cinch audio cable
(not included in the package).
Cinch audio cable (red, white)
S-Video cable
