Information on the charge indicator lamp
The charge indicator lamp 7 supplies the following information:
The charge indicator light 7…
Meaning
Lights up red the batteries are charging.
Flashing green
the batteries are low and should be
charged soon.
Flashing alternately green/red
the batteries are completely discharged
and should be charged.
Lights up green
the batteries are fully charged.
the appliance is in operation.
Installation of the wall bracket
DANGER – ELECTRIC SHOCK!
► Ensure that there are no power cables or other conduits or pipes in the wall
at the location where you intend to bore the holes for the wall bracket
3.
Drilling into a current-carrying electric cable can be potentially fatal!

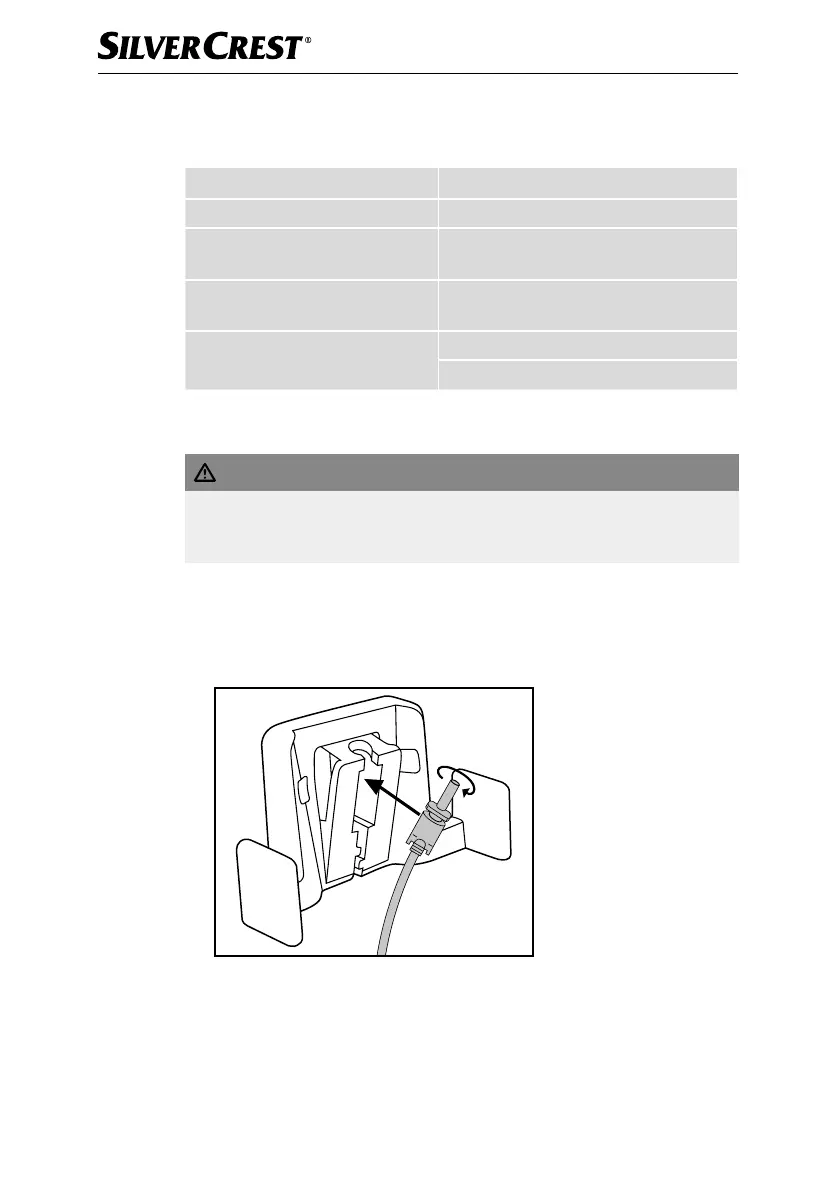

1) Insert the barrel plug
5 on the mains adapter 4 into the wall bracket 3
as shown in the following diagram:
First, feed the cable through the cable routing and then push the barrel plug
5
into the opening in the wall bracket
3 so that it is firmly in place. Secure the
barrel plug 5 by turning it.
2) Select a suitable installation location for the wall bracket 3:
It must be possible to remove the handheld vacuum cleaner easily and there
must be an accessible mains power socket for the mains adapter 4.
3) Drill two holes about 60 mm apart. Use the wall bracket
3 to mark the
holes, to ensure the correct spacing. The drill holes must be suitable for 6 mm
wall plugs.
