7. Installation
D
E
'ULOOWKH'(SRLQWVZLWKDPPGULOOELWWRVFUHZWKHÁXH
installation plate referring to the min. and max. heights of
the appliance.
Install 6 mm dowels to the holes you have drilled.
A
B
C
D
E

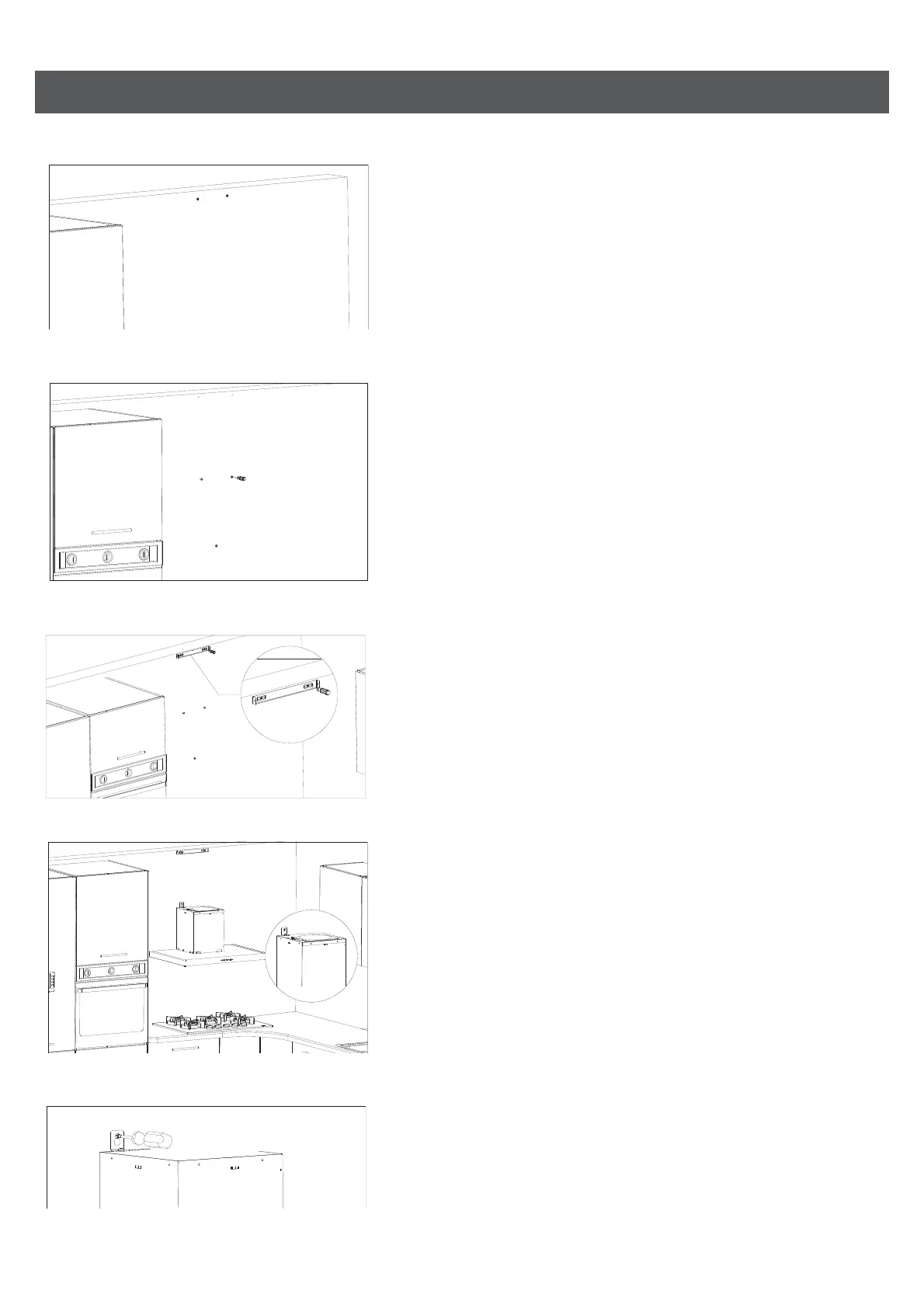

Tightening the suspension screws
Tighten 5.5x60 suspension screws to Ø10 mm dowels (A,
B) you have tapped on the wall. The distance between
screw head and the wall will be 5 mm.
D
E
D
E
7LJKWHQWKHÁXHLQVWDOODWLRQSODWHWRWKHGRZHOV\RX
have tapped to the wall using the 3.9x22 screw supplied
with your hood.
Suspending the Hood to the Wall:
Hold the hood from its body and suspend it to the wall on
$DQG%SRLQWVXVLQJWKH/SODWHV\RXKDYHÀ[HGRQWKH
hood cabinet before.
When the suspension procedure is completed, tighten the
suspension screws installed to the wall with a screwdriver
to prevent moving of the appliance.
