42C System Operations - 18
115 Volt Switches

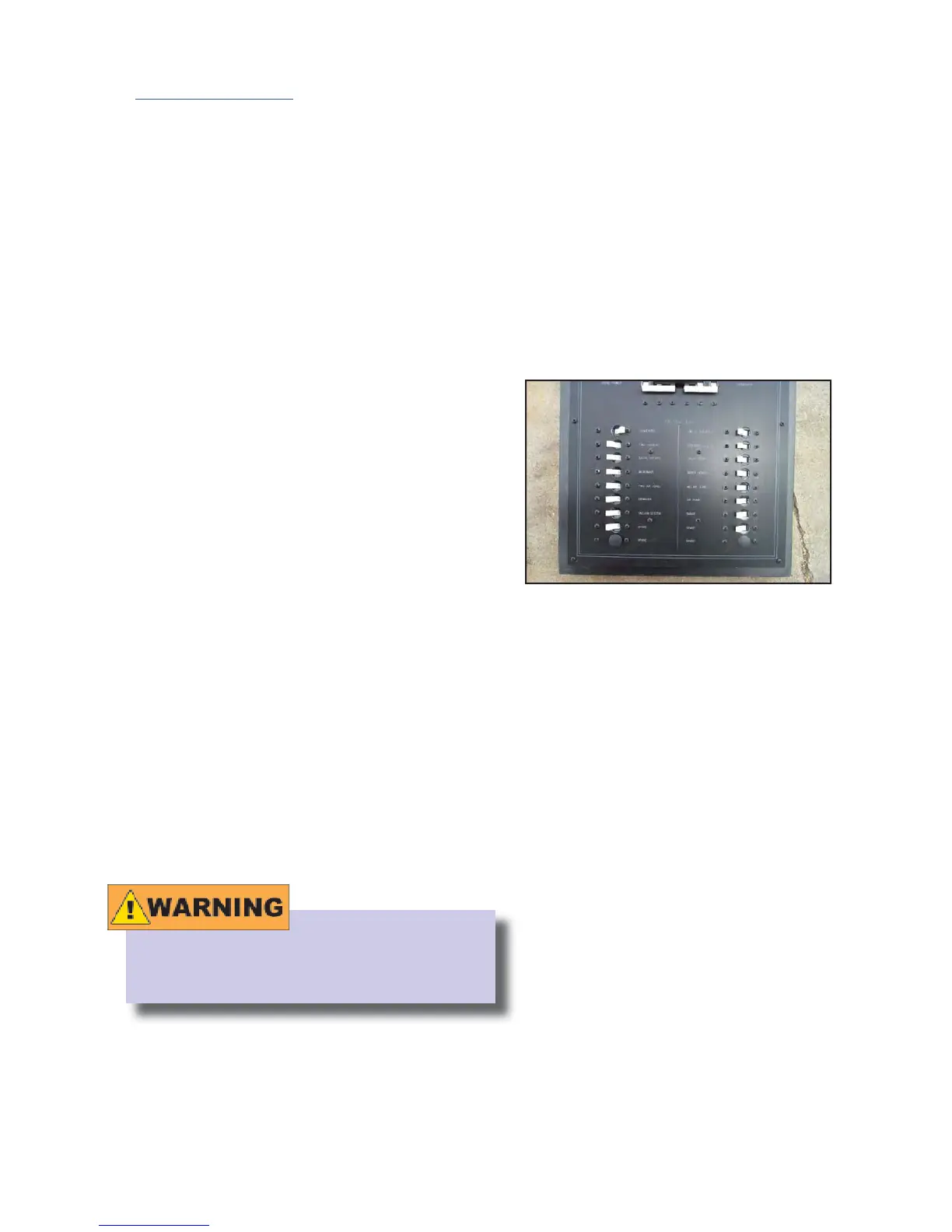

The following breaker switches and their
function are described below in the order
in which they appear on the main electri-
cal distribution panel:
AC Amperage Gauge and Switch: The
gauge displays the amperage draw on the
AC circuit. The gauge reads the amper-
age and the switch below it selects which
line the gauge will display. Line 1 is the
power and switches on the left side of the
AC Portion of the AC/DC Panel. Line 2
controls the power and switches on the
right side of the AC portion of the AC/DC
Panel.
AC Volt Gauge and Switch: The gauge
displays the voltage draw on the AC cir-
cuit. The gauge reads the voltage and the
switch below it selects the line the gauge
will display. Line 1 is the power and the
switches on the left side of the AC portion
of the AC/DC Panel. Line 2 is the power
and switches on the right hand side of the
AC Portion of the AC/DC Panel.
Generator Blower and Start/Stop Switch:
This is the ON/OFF Switch for the gen-
erator. The generator is an option that
was available with your 42C. Below the
ON/OFF Switch is the Generator Blower
Switch.
The blower must be run for four (4)
minutes before starting the generator.
SHORE POWER / GENERATOR
SWITCH:
This switch selects where you will be get-
ting your AC Power from. The slide bar
is there to make sure you only select one
source at any given time. In order for the
three (3) generator switches to be on,
the slide bar has to move over to block
the three (3) Shore Power Switches from
being on. In order for the three (3) Shore
Power switches to be on, the Slide Bar
must move over to block the three (3)
Generator Switches from being on.
Converter: Supplies power to the convert-
er, which converts DC power to AC power.
Galley Outlets: Supplies power to the
outlets in the Galley.
Forward Outlets: Supplies power to the
outlets in the forward cabin and forward
head.
Exterior Outlets: Supplies power to the
outlets found on the exterior area of the
yacht.
Salon Outlets: Supplies power to the
outlets in the Salon.
Microwave: Supplies power to the micro-
wave oven outlet.
Water Heater: Supplies power to the wa-
ter heater.
