Control box
Installation
The mounting tabs are suited to a 80x40 pattern so they can be mounted almost
everywhere near your pedals. Here we chose to mount the control box underneath a
profile based pedal deck found on our P1-X and X1-Pro cockpits.
Using the hardware provided
the control box won’t go anywhere.
Don’t overtighten the M5 bolts,
the control box doesn’t go
anywhere.
Connected the cables to and
from the pedals as labeled.
We recommend taking some
time for cable management.
Please refer to the included
quick start guide for more
information about mounting
the control box.
Plugging in the pedals

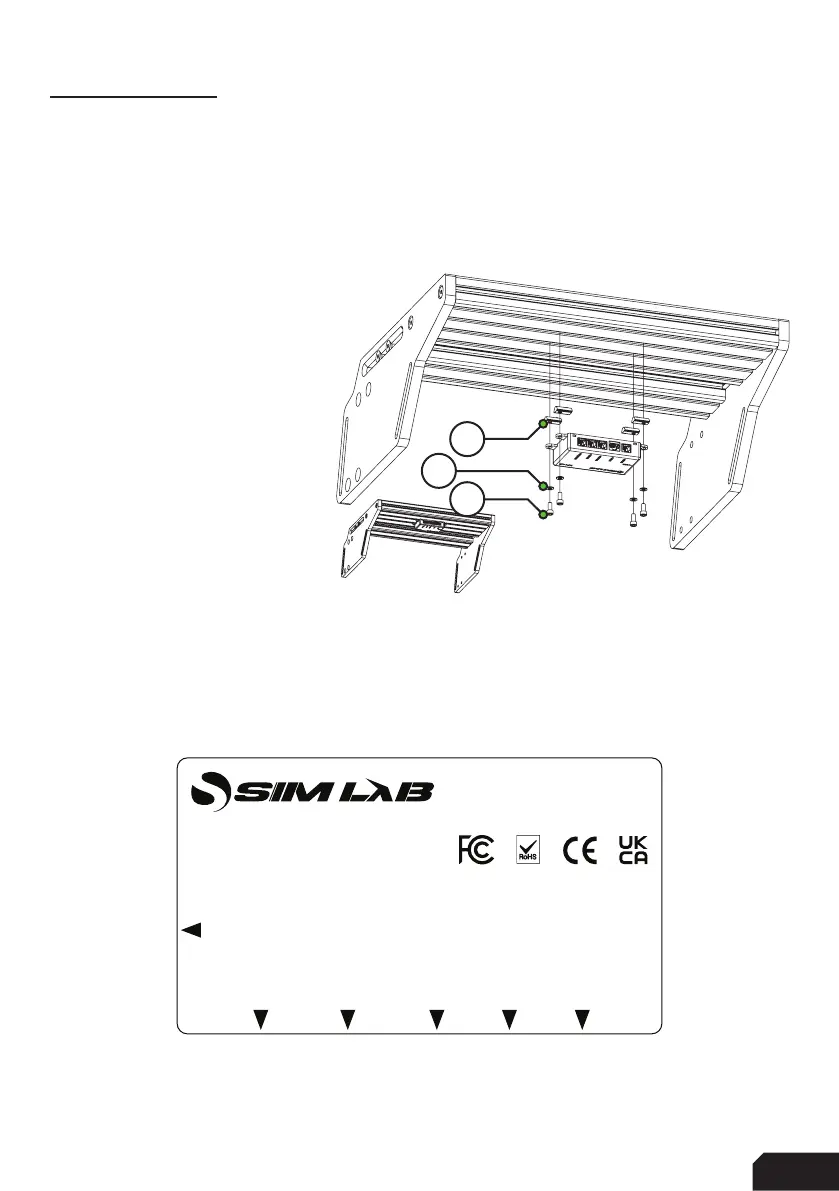

All pedals are plugged into the control box the same way. All inputs are labeled, for
reference, here is top-down drawing with the same information as found on the box.
Every pedal uses the same connector, so you don’t have to worry about mixing up
the cables or anything. They are all identical to each other.
USB
EXT. 2
THROTTLE
BRAKE
CLUTCH
EXT. 1
XP-1 PEDALS
CONTROL BOX
A14
A17
A21
