82

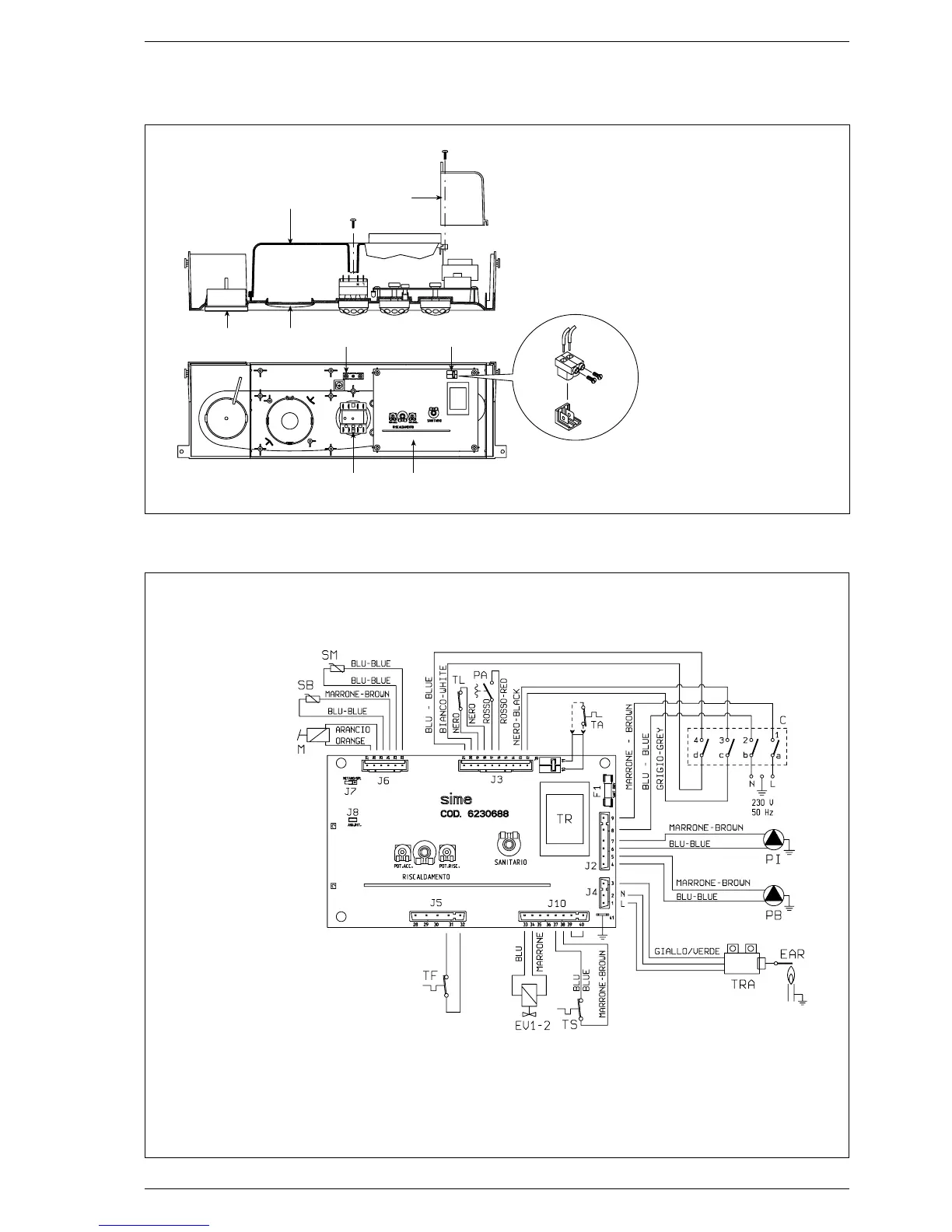

2.10.3 Wiring diagram “25/60 OF”
Fig. 20
KEY
F1 Fuse (F 1, 6A)
TR Transformer 230-24V
PI C.H. pump
PB D.H.W. pump
EV1 Gas valve coil
EV2 Gas valve coil
TF Smoke stat
TL Limit stat 80°C
M Modulator
PA Water pressure switch
C Rotary switch
SM Heating sensor (blue)
SB D.H.W sensor
TA Room stat
EAR Ignition/detection electrode
TRA Ignition transformer
TS Safety stat 100°C
Note: The room stat or the chronothermostat must be connected to terminals 10-11 of the “TAconnector
after having removed the bridge.
12
6
7
5
8
3
4
Fig. 19
KEY
1 Thermometer
2 Time programmer
3 Rotary switch
4 Electronic board
5 Earth faston
6 Instrument protection
7 Room stat cover
8 Room stat connector (TA)
CONNECTOR SPARE PART CODES:
J2 cod. 6278622
J3 cod. 6278639
J5 cod. 6278624
J6 cod. 6278640
J10 cod. 6278641
