3. INSTALLATION

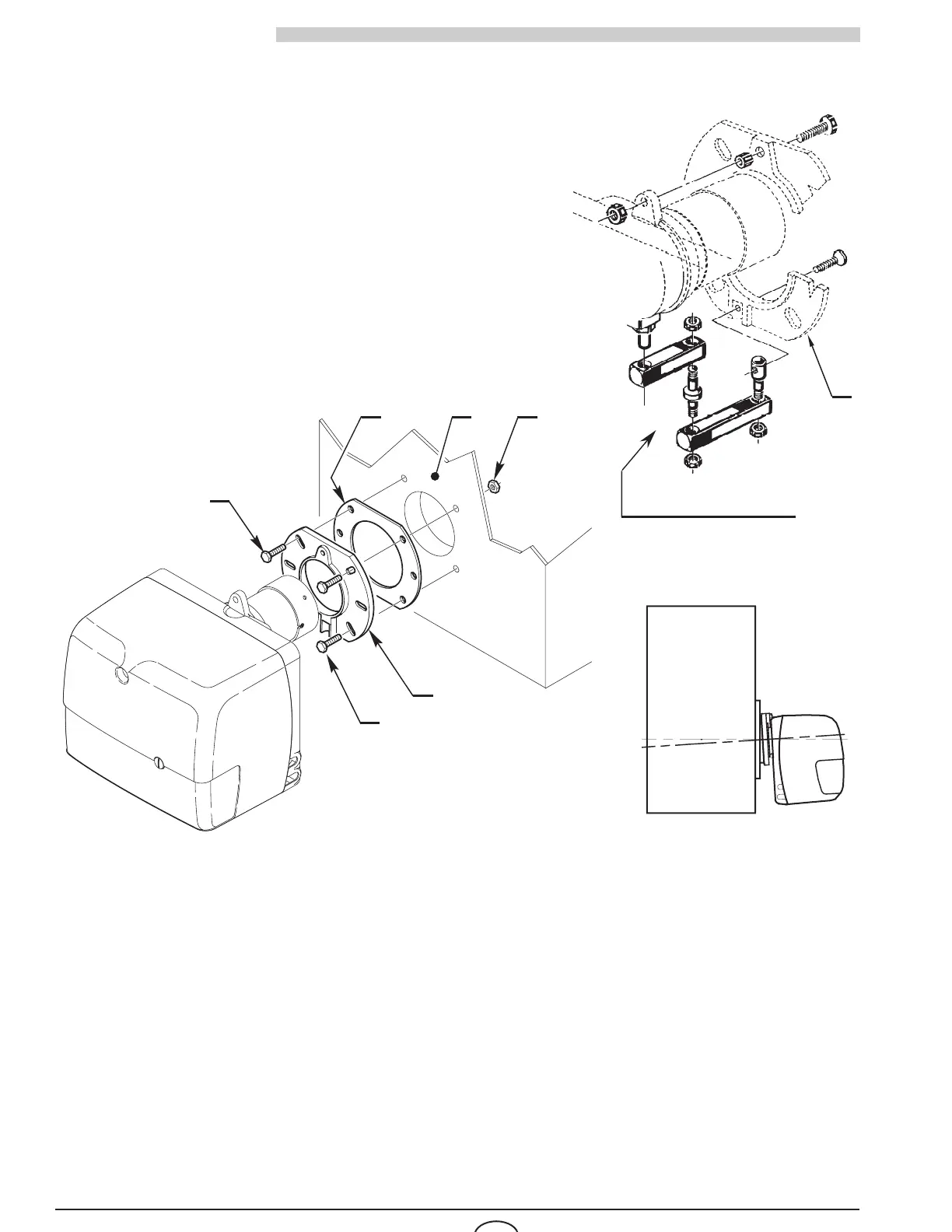

3.1 BOILER FIXING
Fig. 3
➤ Assemble the hinge and put on the flange (1) the
screw and two nuts, (see fig. 2).
➤ Widen, if necessary, the insulating gasket holes (5).
➤ Fix the flange (1) to the boiler door (4) using screws (2)
and
(if necessary)
the nuts (3) interposing the insu-
lating gasket (5), (see fig. 3).
➤ Verify that the installed burner is lightly leaned towards
the button, (see figure 4).
Fig. 4
D6055
