LIGHTING AND OPERATION

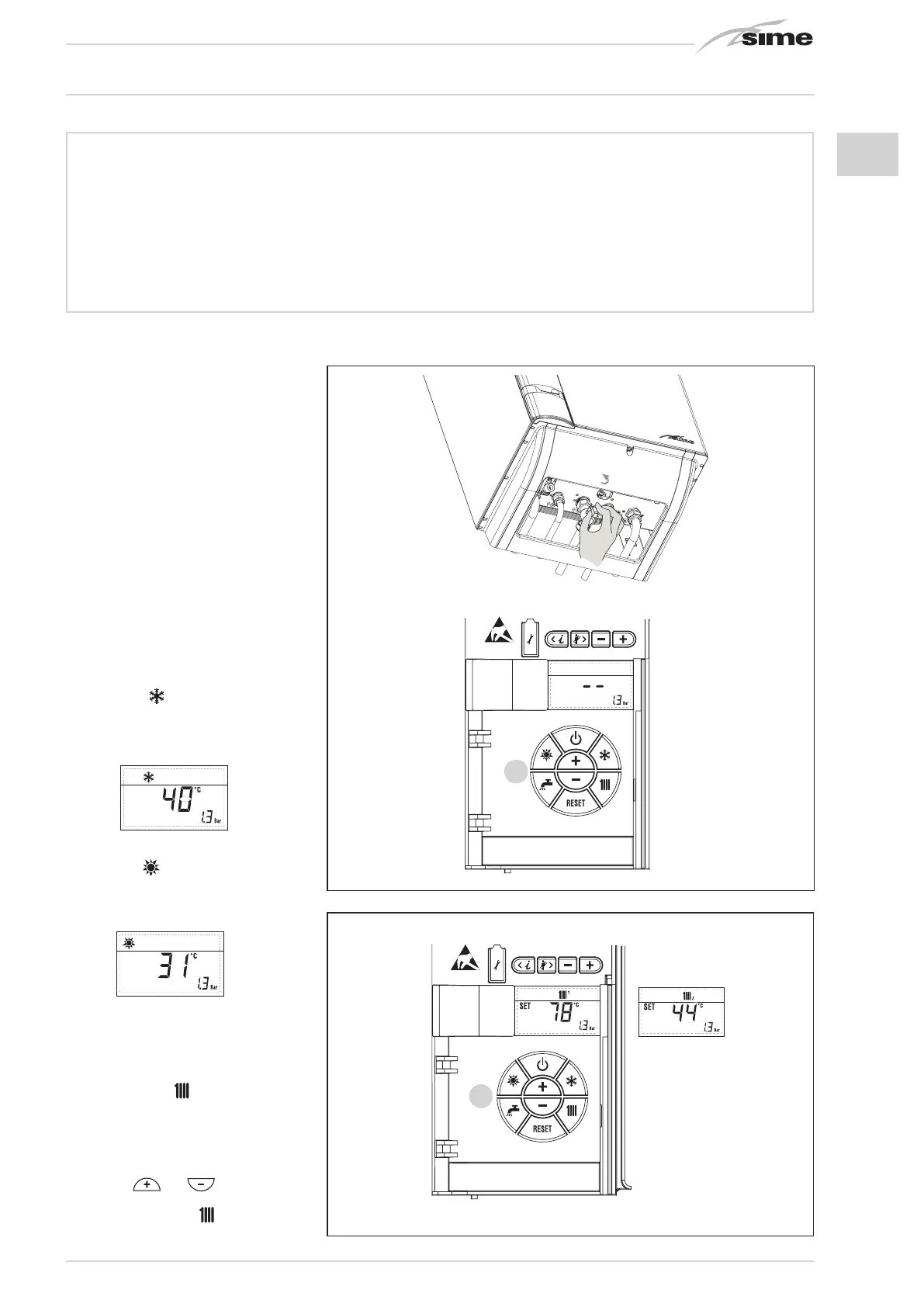

BOILER IGNITION (fig. 25)
The first ignition of the boiler must be carri-
ed out by qualified technical personnel.
Successively, if it is necessary to start up the
boiler again, adhere strictly to the following
instructions: open the gas tap to allow the
flow of the fuel. Move the main switch of
the system to “ON”. When fuel is fed to the
boiler, a sequence of checks will be carried
out and the display shows the normal condi-
tion of the functioning, always indicating the
pressure of the system. If the blue luminous
bar is on, this indicates the presence of vol-
tage.
N.B.: To the first pressure the keys of the
controls (2) the display is illuminated, to
the successive pressure the operation
modality is active.
Winter
Press the key of the controls (pos. 2)
to activate the winter mode functioning
(heating and D.H.W.). The display will be as
shown in the figure.
Summer
Press the key of the controls (pos. 2) to
activate the summer mode functioning (only
the production D.H.W.). The display will be
as shown in the figure.
REGULATION OF THE WATER
TEMPERATURE FOR HEATING (fig. 26)
To set the temperature of the water for he-
ating, press the key of the controls (2).
The first time the key is pressed, the SET of
heating circuit 1 is selected.
The second time it is pressed, the SET of he-
ating circuit 2 is selected. The display will be
as shown in the figure. Change the values
with the key
5
3
1
2
4
and
5
3
1
2
4
.
Standard visualisation will return to the di-
splay by pressing the key again, or after
10 seconds if no key is pressed.
