Place the remaining front lateral supports and insert the cement bricksD)

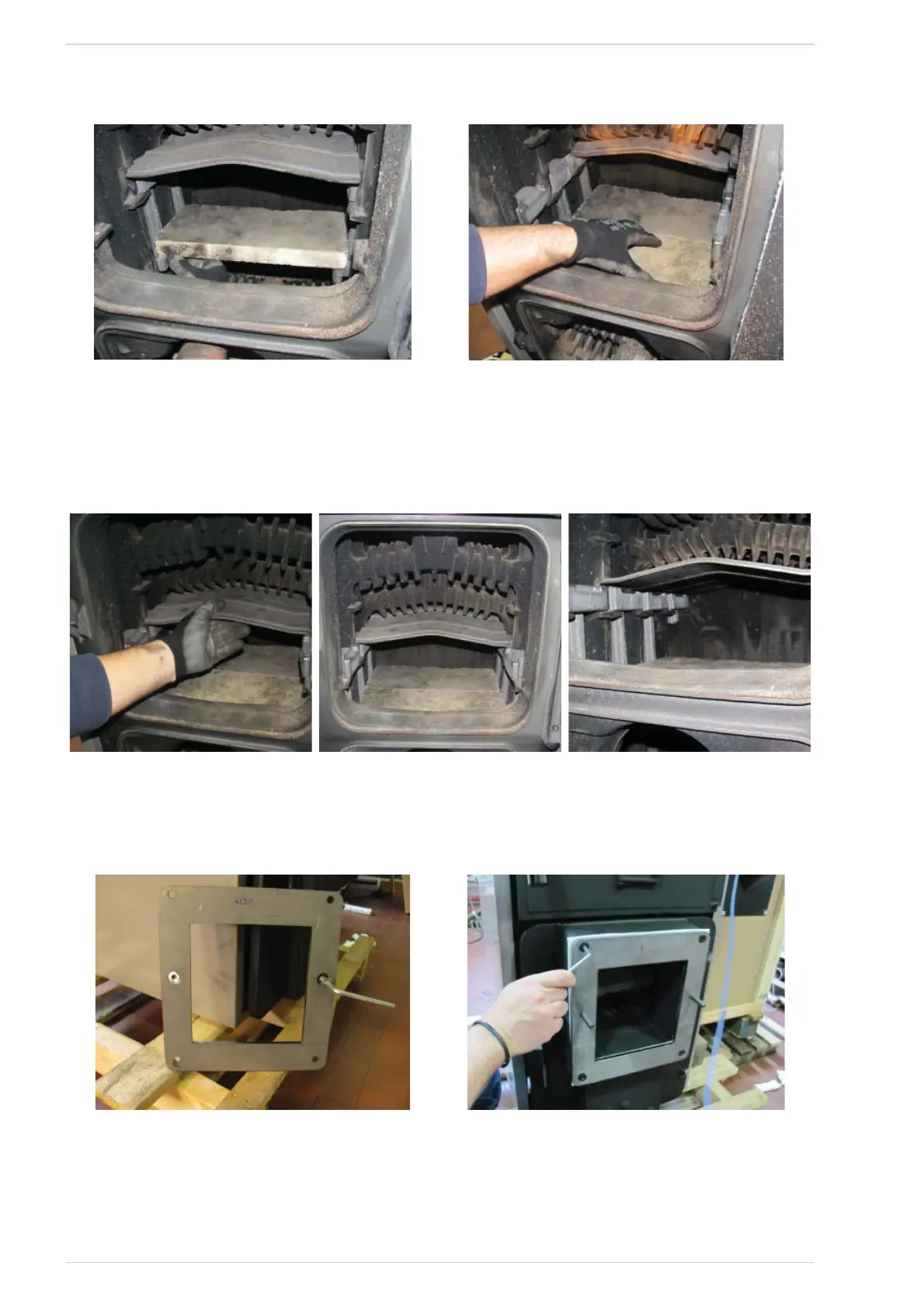

Lateral supportsFig. 19 Cement bricksFig. 20
WARNING!
THE CEMENT BRICKS MUST BE POSITIONED TO THE FRONT PART OF THE BOILER
Place the last cast iron deflector.E)
3Fig. 21
rd
deflector
Screw the M10 screws to the blind plate.F)
Fix the plate to the combustion chamber door with the 4 M8 screws using the gasket.G)
PlateFig. 22 Plate fixed to the combustion chamber doorFig. 23
