SD7K User’s Manual
digital drum kit
Panels
Master volume knob
Controls the volume of phone and line outputs.
1
12
[+] button, [-] button
Changes values (kit number, voice number,
song number, etc.) when editing.
3
[TEMPO+] button, [TEMPO-] button
Changes current tempo.
2
Pad select buttons and indicators
In Kit mode, the buttons can play the pad voices.
In Voice Mode, they select the pad to be edited
and the indicators show the current selected pad.
In Song Mode, the indicators will display which pads
are being played by the drum track.
4
[CLICK] button and indicator
Turns the metronome on or off and selects the metronome
sound (click or voice).
5
[DRUM OFF] button and indicator
Mutes the drum part of the Song.
6
[START/STOP] button
Starts and stops the selected song.
[SONG] button
Enters or switches Song menu pages.
7
9
[VOICE] button
Enters or switches Voice menu pages.
10
[KIT] button
Enters or switches Kit menu pages.
8
3-digit LED
This LED is the main display device of the SD7K,
which will show the parameters of the current menu.
11
[UTILITY] button
Enters or switches Utility menu pages.
13
[SAVE] button
This button is used to save the current kit
settings in a user kit and saves the trigger
settings under the Utility menu pages.

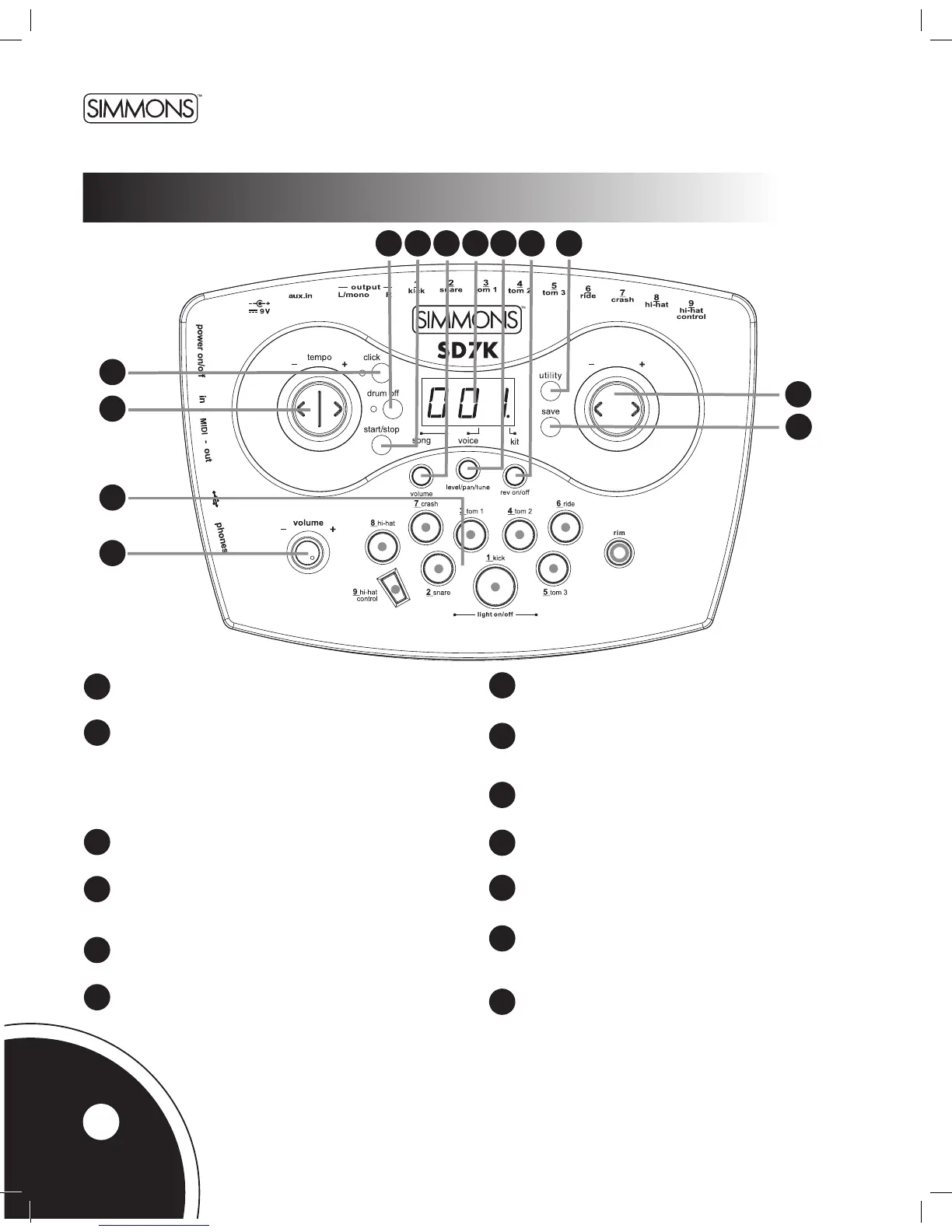

Top Panel
1
2
3
4
5
6
7
9
10
8
11
12
13
4
