7
audio equipment

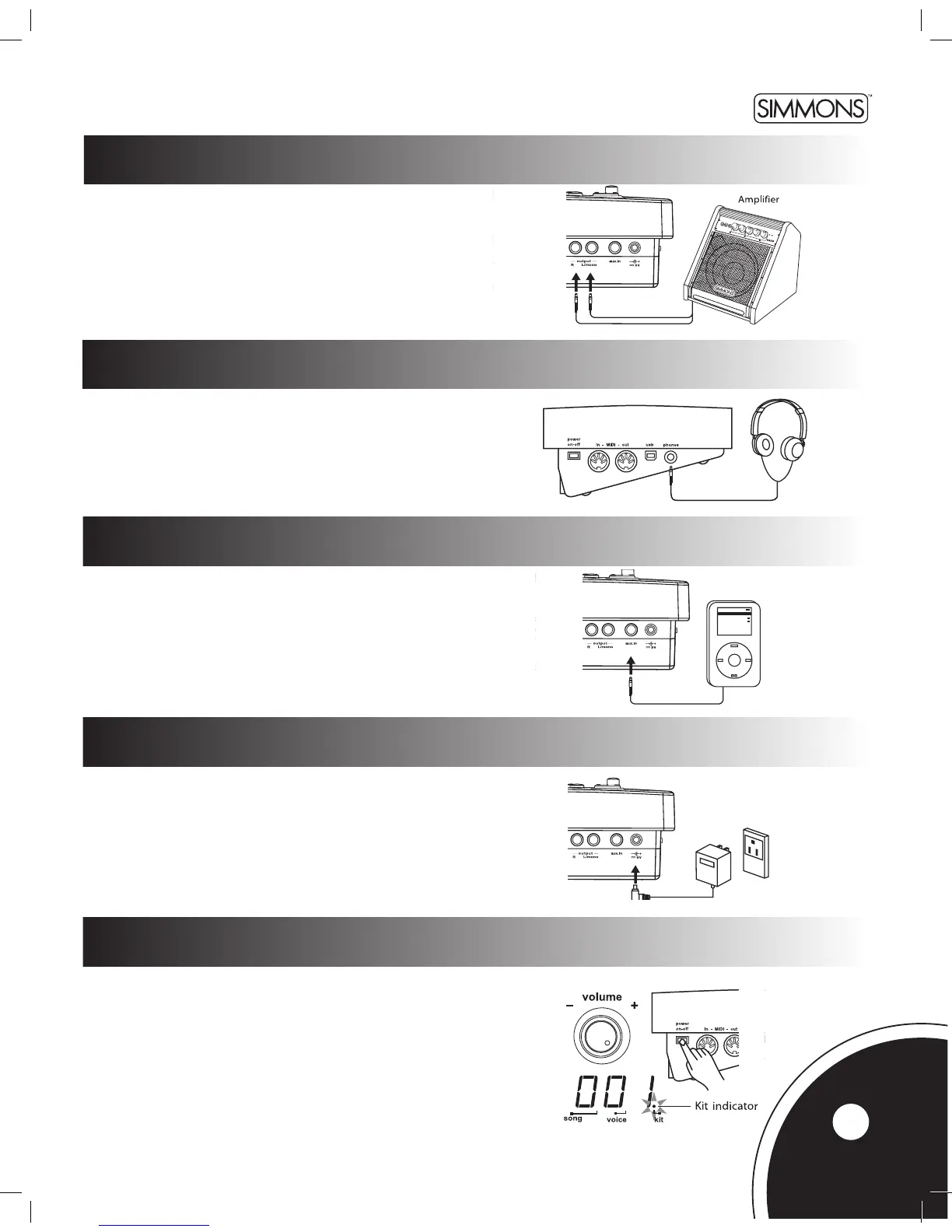

When using an amplier such as the Simmons DA50 or DA200S,
connect the Output L/MONO and R jacks on the rear panel to the
input of the amplier. (For mono playback, use the L/MONO jack;
for stereo playback, connect both L/MONO and R jacks.)
headphones
An optional set of stereo headphones can be connected to the
PHONES jack located on the side of the drum module.
MP3/cd player
1. Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN TRS jack on the rear panel.
2. The input signal is mixed with the drum signal,
allowing you to play along.
power supply
Make sure the power is switched OFF.
Connect the power adapter to the DC IN jack on the rear panel.
Note:
Make sure the power is switched OFF when connecting the
drum module with external devices.
Power Switch
After conrming that all connections have been completed,
rotate the volume knob to the left (minimum volume level)
before switching the power on.
Set the power switch to the “ON” position. The kit indicator
will light up and the display will show kit number 001.
equa
lizat
i
on
vo
lume
inp
ut
right
lef
t/m
ono
dr
u
m
i
n
p
u
ts
aux
drum
aux
low
mid
hig
h
lin
e
in
h
ea
d
p
ho
n
es
