SD XPRESS owner’s manual
www.simmonsdrums.net
The first name in electronic drums.
The first name in electronic drums.

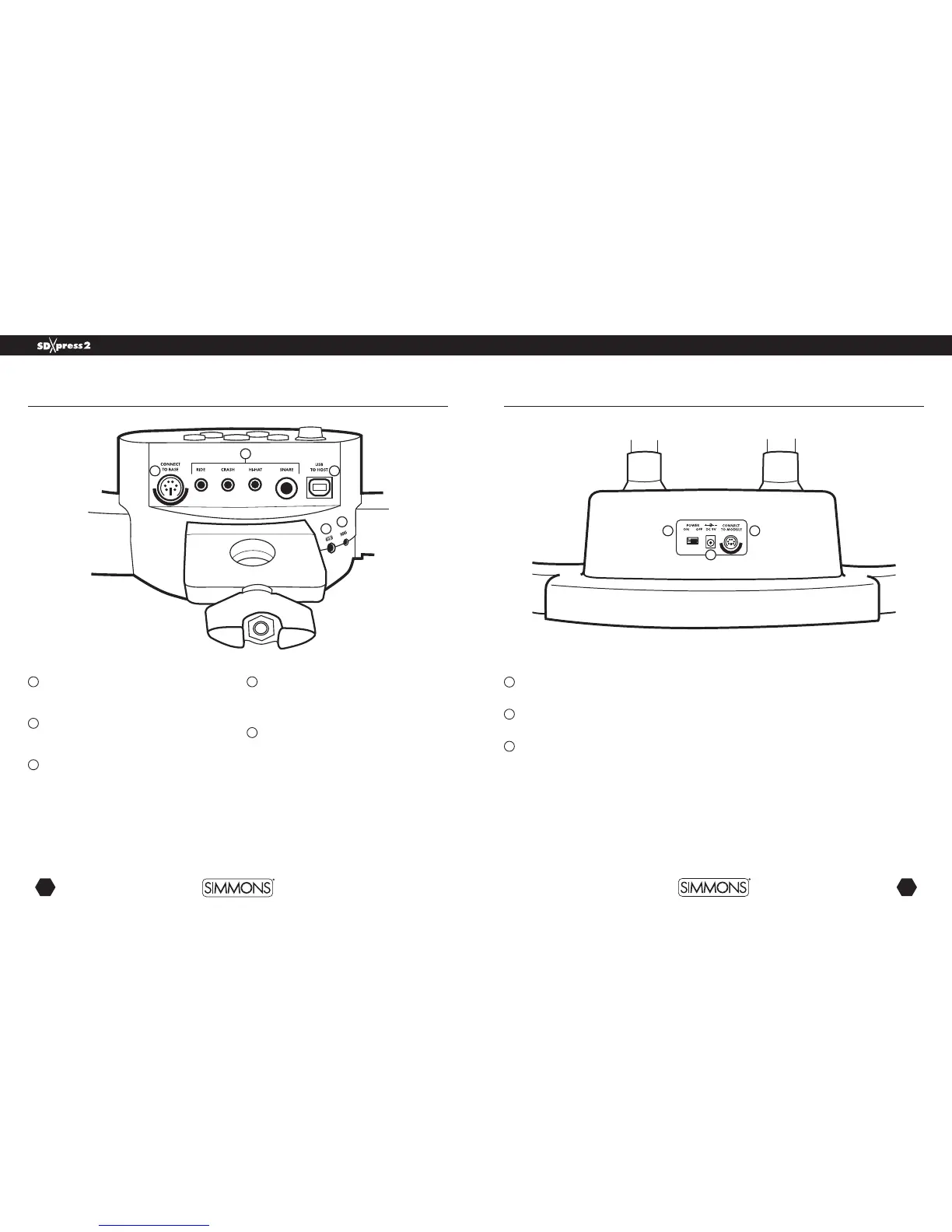

PANEL CONTROLS PANEL CONTROLS
Rear Panel Back Panel/Bottom Case
8
Connect To Base
Control cable connects the top part of pads and sound module
to the base pedals.
9
Trigger Input Jacks
These jacks are used to connect the pads to the module.
(RIDE, CRASH, HI-HAT, SNARE)
10
USB
Connect to a computer for two-way MIDI communication. This
will enable a software program to trigger the drum module
sounds, or allow you to use the module as a MIDI trigger
interface for the software’s virtual drum instruments.
11
AUX IN
You can connect the output of an external audio device, to this
jack (stereo 3.5mm mini jack). This is convenient for playing
along with music from a CD or mp3 player.
12
Phones
Plug in a pair of stereo headphones here.
(stereo 3.5mm mini jack)
13
Power ON/OFF
Turns the sound module on and off.
14
DC 9V
Connect the included AC adaptor to this jack.
15
Base Connection
Connect the top part of pads and sound module to the
base pedals.
8
9
10
13
14
15
11
12
