4.2.3.3 RX FRONT END
1. Ensure that the TCX0 Alignment has been done before proceeding with this section.
2.

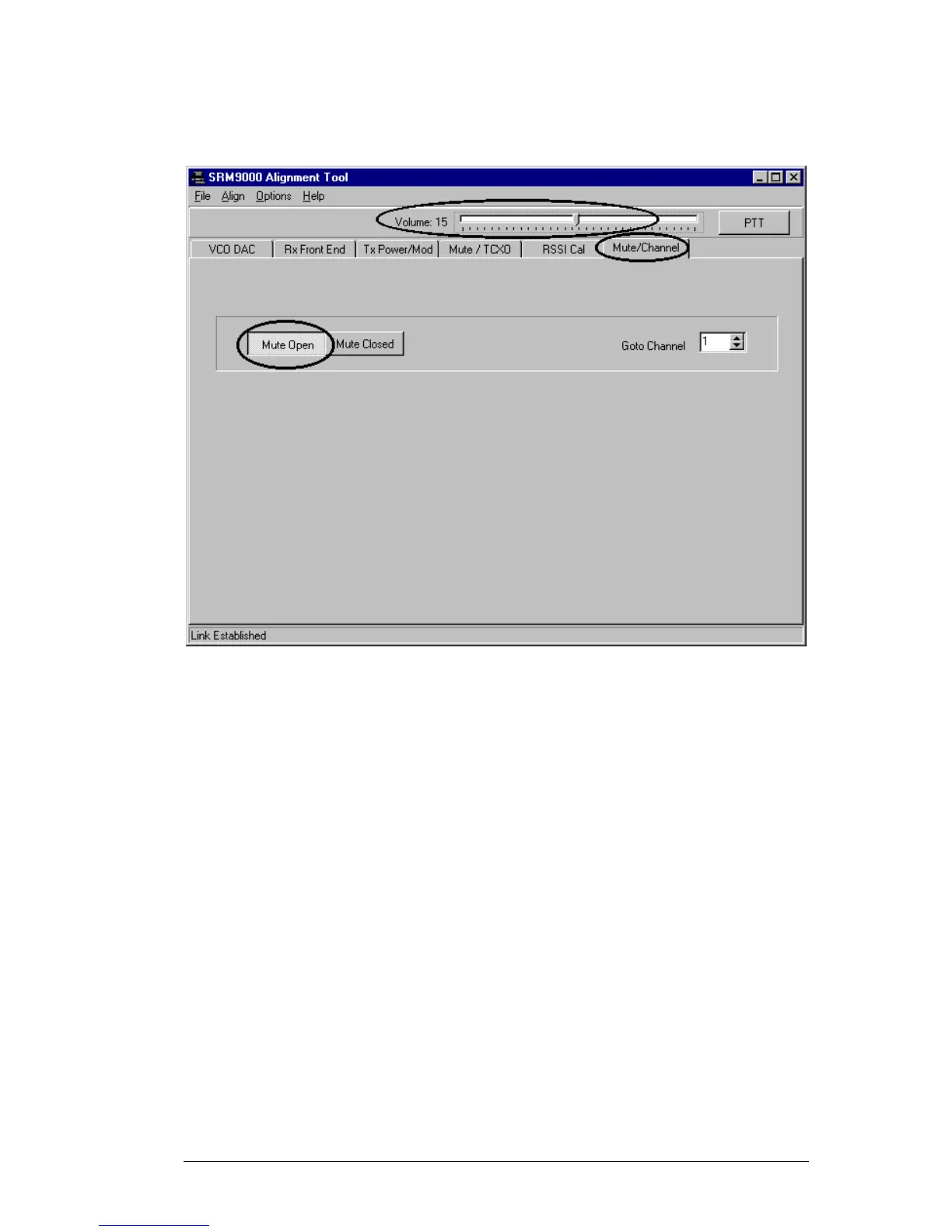

Select the Mute/Channel page
3.
Select Mute Open.
4.
Set the Volume slider to 15.
Speaker audio should now be visible on the CRO, if required readjust the Volume slider
to a suitable level.
