- Cuando todos los controles están conectados a través de TCP/IP,
entonces la red Rs485 se convierte en local (del Lector 1 al Contro-
lador y luego al Lector 2).
- Conecte los lectores directamente a los terminales Rs485 en cada
controlador.
- Si la distancia Lector-Controlador es grande (50 metros) y si no se
puede establecer la comunicación con el lector, entonces termine la
red Rs485 cerrando el puente en el Controlador EWS
NOTA: Esta conguración se recomienda cuando tienes multi-
ples lectores biométricos en la misma red. En esta congura-
ción, NO ES NECESARIO resistencias.
Cuando todo las centrales tienen comunicación TCP/IP con los
lectores biométricos son fáciles de cablear. Cuando las centrales
tienen comunicación RS485, es difÃcil mantener la cadena deseada
en la red RS485. Cablear los lectores biométricos de esta forma es
un reto. Vea el esquema siguiente.
CONEXIÓN DE LECTORES BIOMÉTRICOS CUANDO TODOS
LOS CONTROLADORES TIENEN COMUNICACIÓN TCP/IP
CONNECTING BIOMETRIC READERS WHEN ALL THE
CONTROLLERS HAVE TCP/IP COMMUNICATION
- When all the controllers are connected via TCP/IP, then the RS485
network becomes local (from Reader 1 to the Controller then
to the Reader 2).
- Connect the readers directly to the Rs485 terminals in each
controller.
- If the distance Reader-Controller is high (50meters) and if the
communication with the reader can not be established, then
terminate the RS485 network by closing the jumper in the EWS
Controller
NOTE: This is recommended conîš¿guration when you have
multiple biometric readers in the same network. In this
conîš¿guration, NO TERMINATION resistors are required.
When all the controllers have TCP/IP communication the biometric
readers are easily wired. When the controllers have RS485
communication, it is difîš¿cult to maintain the daisy chain of the RS485
network. Wiring the biometric readers in that formation is a challenge.

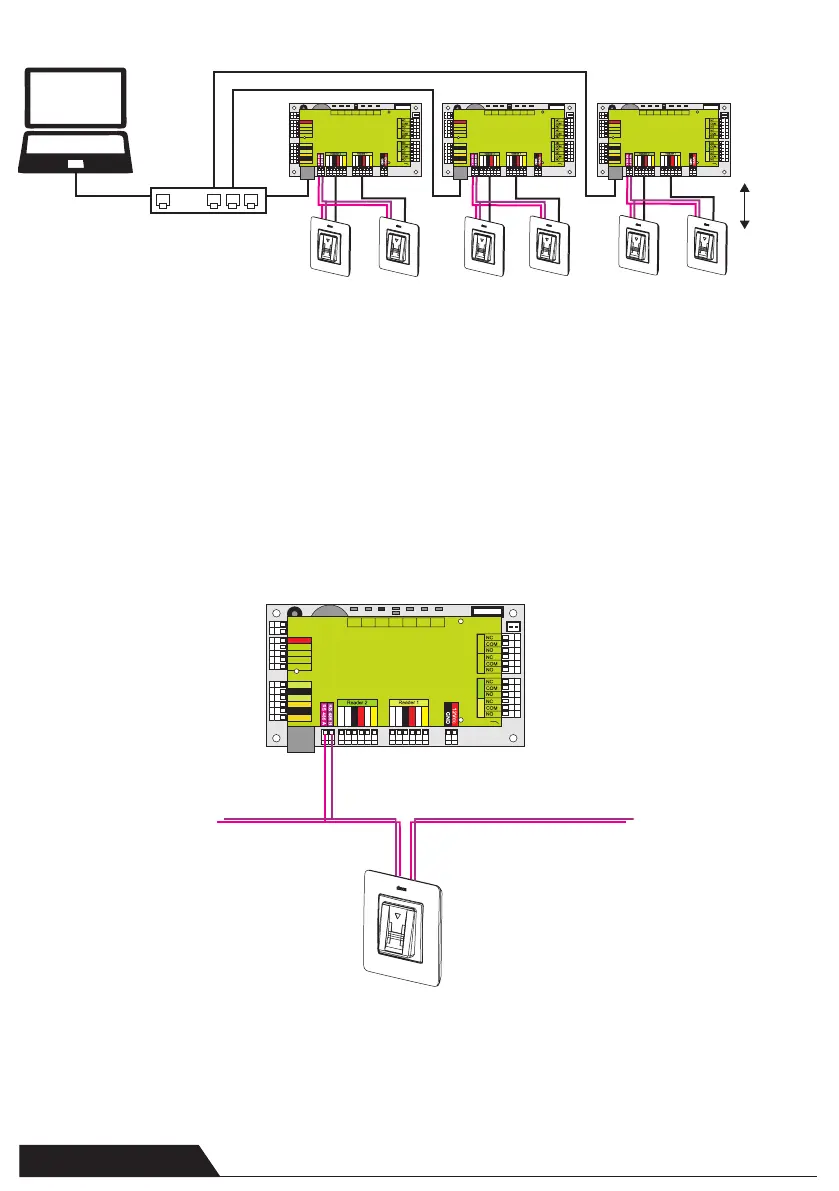

See the schematic diagram bellow.
