Our Burner includes following kit:
1. Burner set
2. Orifice : One attached with each individual burners& two extra
Orifice with the burner set.
3. T Spanner : It is a tool for fittings of orifice.
4. Spanner Guide Pipe : It is an orifice mounting guide pipe thru which the
T Spanner can reach to the proper position to replace
orifice very easily.

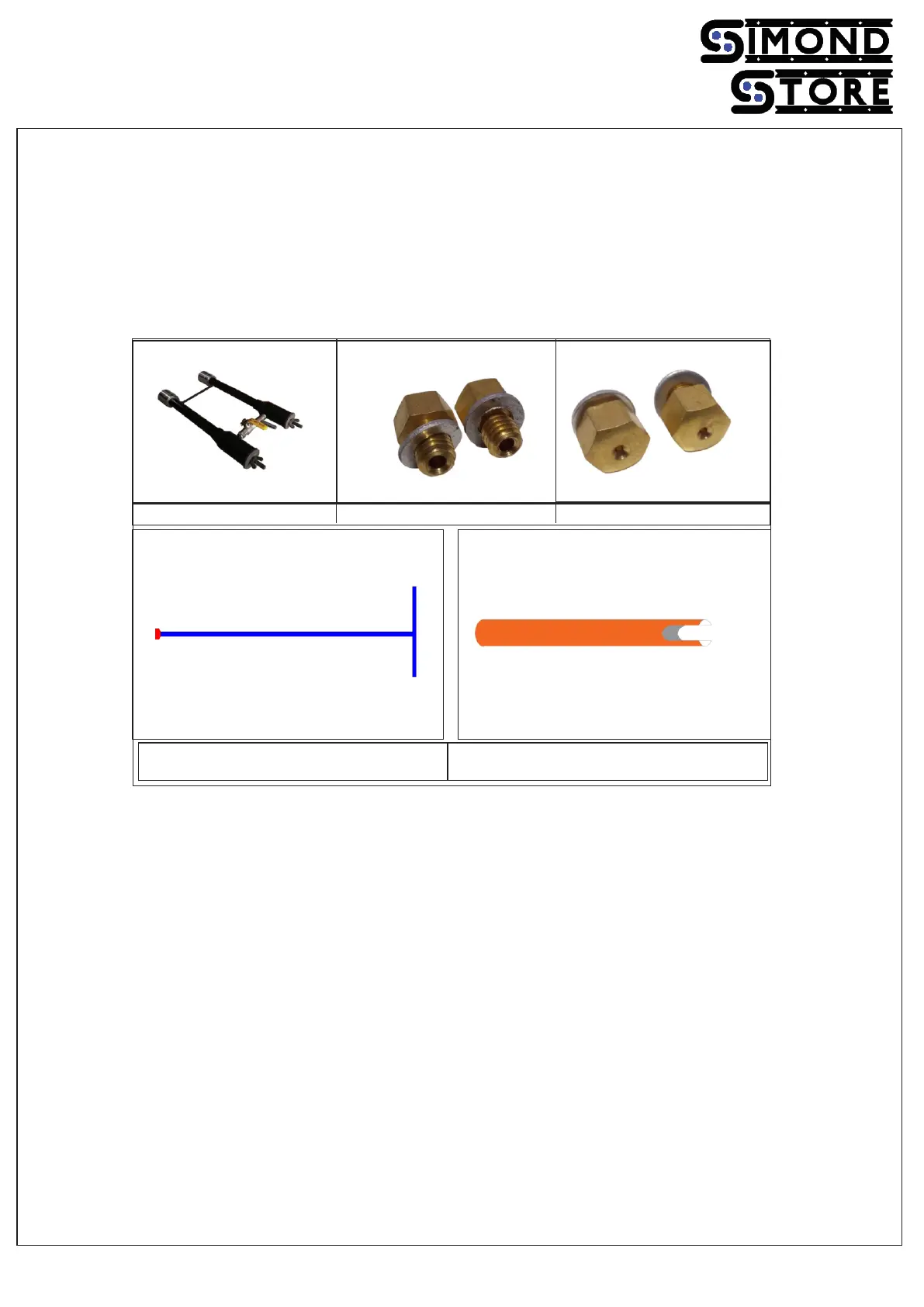

Burner Orifice Front Side Orifice Back Side
T Spanner Spanner Guide Pipe
Troubleshooting:
Step-1: Insert Spanner Guide Pipe into the burner & rotate clockwise or anti-
clockwise to get it fixed as shown in below diagram.
Step-2: Insert T Spanner thru the Spanner Guide Pipe. When T spanner touches the
orifice, slightly rotate the T Spanner so that it fits into the Orifice head.
Step 3: Rotate T Spanner anti-clockwise to remove Orifice from the burner.
Step 4: Remove carbon debris inside the gas inlet pipe by using compressed air.
Step 5: Check orifice hole, if chocked try to clean it by compressed air or replace it by
new orifice.
Step 6: Installing new orifice into the burner
a) Follow Step 1 as above instruction.
b) Place the new orifice into the T Spanner slot.
c) Insert orifice containing T Spanner thru the Spanner Guide Pipe. When it
touches the horizontal pipe inside the burner, then slowly rotate T Spanner
clockwise and fit the orifice.
Now burner is ready for firing.
www.simondstore.com Page 11 of 13
