Installing a 4100-6046 Module into a 4100U/4100ES Panel
The 4100-6046 dual RS-232 interface module mounts on a PDI card in a FACP expansion box (PID series 2975-94xx). It can be mounted on any
available block. Refer to Figure 4.

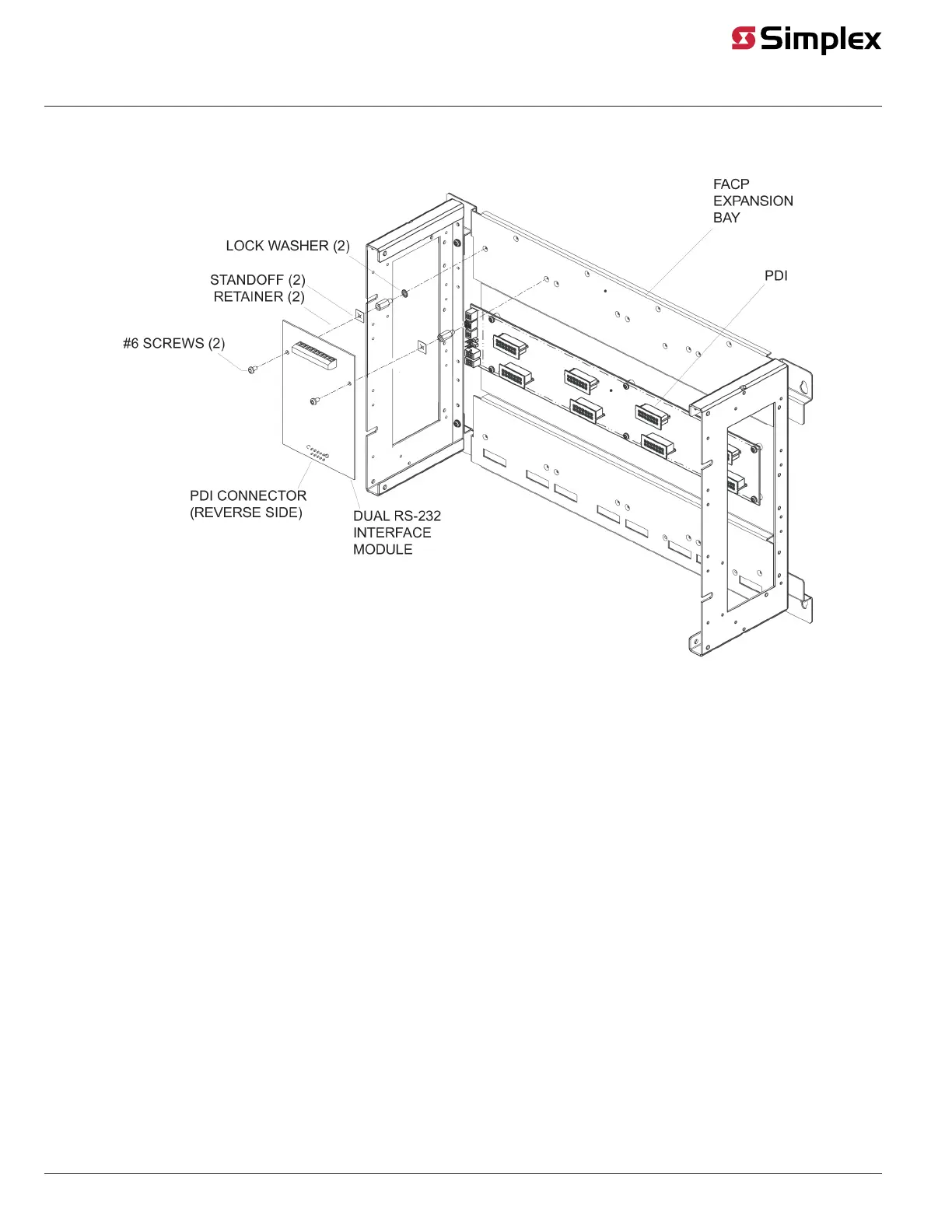

Figure 4: Installing the 4 X 5 Module in a 4100U/4100ES FACP Expansion Bay
