Installing a 4010-9918 Module into a 4010ES Panel
The 4010-9918 Dual RS-232 Interface Module mounts on an available PDI block on the top bay or expansion bay PDI card, provided there is enough
space to fit the card.

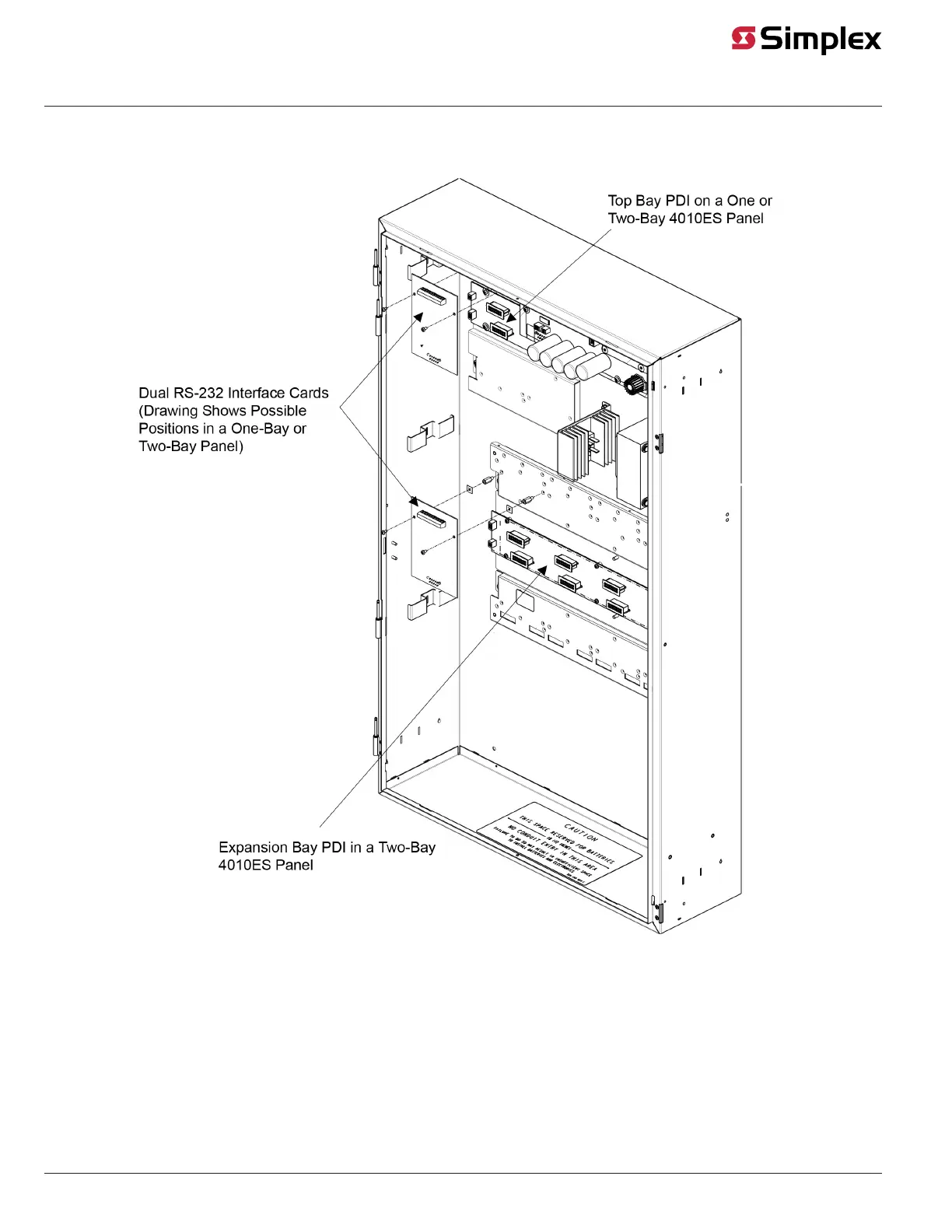

Figure 5: Installing the Dual RS-232 Module in a 4010ES Panel
page 6 579-910 Rev G
Dual RS-232 Interface Module 4007-9812, 4100-6046, 4010-9918 Installation Instructions
