Wiring illustrations
The following figures show how to wire the NIC. The illustrations use the 565-274 and 565-275 motherboards only. If you are using the 4100U/4100ES
motherboard, refer to Figure 18, Figure 20, Figure 21, and Figure 22 along with the figures below.

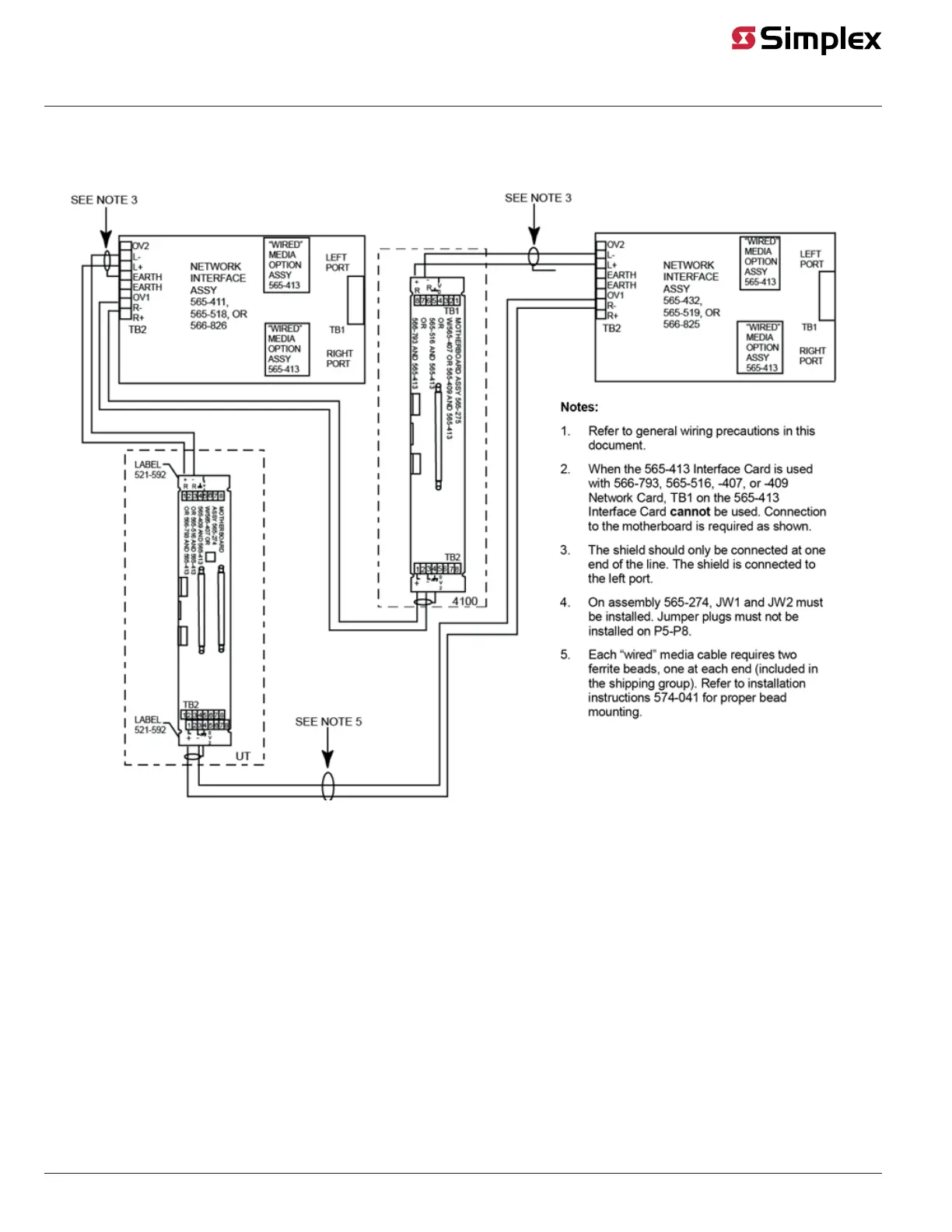

Wired Media, Class X Wiring
Figure 25: Wired Media, Class X Wiring
Fiber-optic, Class X wiring (0746-109 only)
page 25 579-182 Rev. V
4100/4120-6014, 4100-6078 NICs and 4100/4120-Series Media Modules Installation Instruction
