Installing the Daughter Card
Installing into a 2975-94xx CPU Bay
The 4100 NIC daughter card, shown in Figure 16, inserts into motherboards as follows:
• If you use the 565-274 Master Motherboard, insert the NIC daughter card into connector J1.
• If you use the 566-227 or 565-275 CPU Motherboard, insert the NIC daughter card into connector J2.
• If you use the 566-938 RUI+ CPU motherboard, insert the NIC daughter card into connector J6.

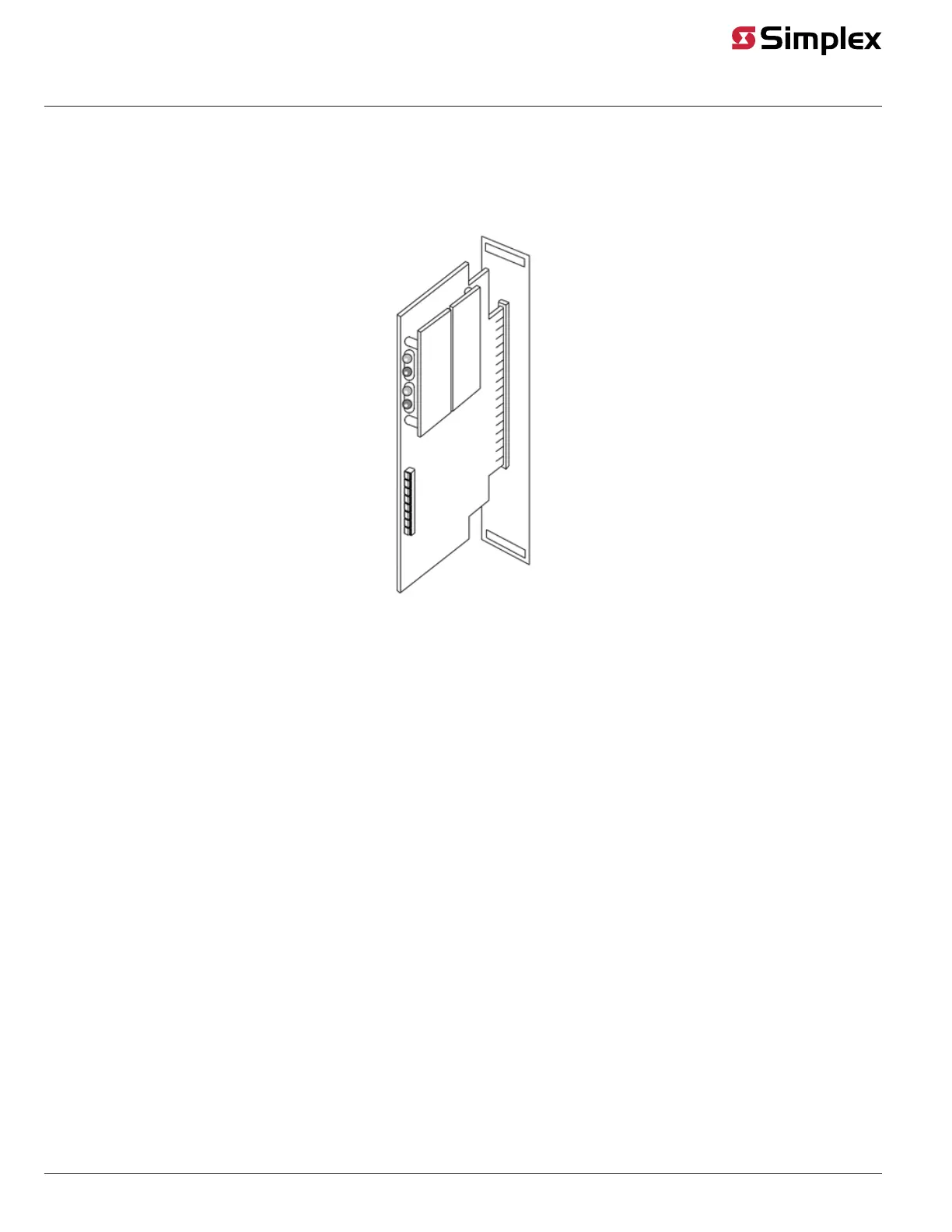

Figure 16: Installing the daughter card
page 16 579-182 Rev. V
4100/4120-6014, 4100-6078 NICs and 4100/4120-Series Media Modules Installation Instruction
