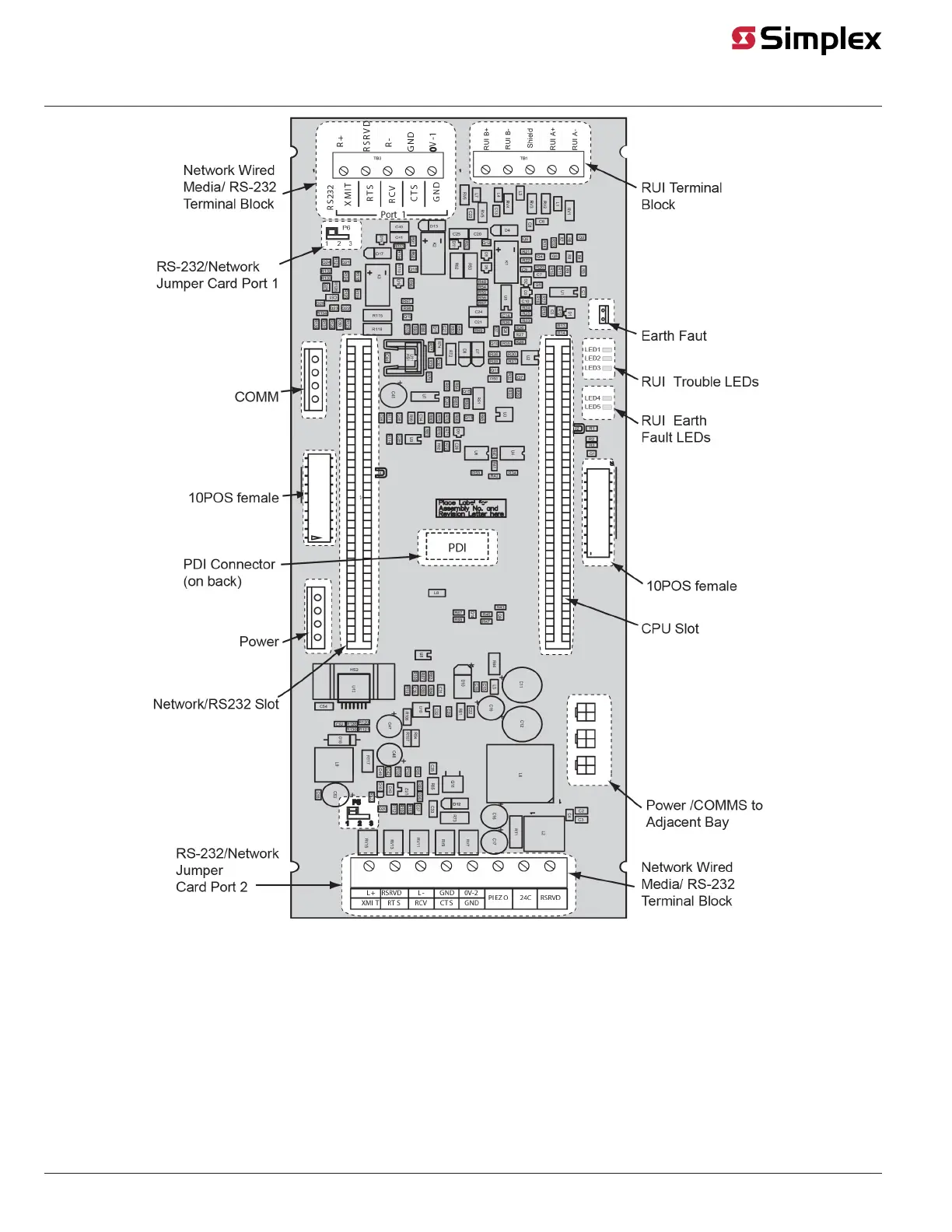

Figure 5: RUI+ CPU master motherboard (566-938)
Media module illustrations
You can plug seven modules into the 4100-6014 and the 4100-6078 NICs:
• 4100-6301 - 4120 SM-L Duplex Fiber Media Card (566-1198)
• 4100-6302 - 4120 SM-R Duplex Fiber Media Card (566-1197)
• 4100-6303 - 4120 MM-L Duplex Fiber Media Card (566-1200)
• 4100-6304 - 4120 MM-R Duplex Fiber Media Card (566-1199)
• 4100-6057 Fiber-Optic Media Card (565-261, 566-376, or 746-109)
• 4100-6056 Wired Media Card (565-413)
• 4100-0144/ 4120-0144 Modem Media Card (565-279 or 566-338; non-4100U /4100ES only)
Each module is shown below.
page 6 579-182 Rev. V
4100/4120-6014, 4100-6078 NICs and 4100/4120-Series Media Modules Installation Instruction
