Simplex 4603-9101 - 4603-9101 Operator Information and Product Selection; Product Selection Overview; LCD Annunciator Display and Indicators; Control Button Functions

FIRE
ALARM
ALARM
SILENCED
PRIORITY 2
ALARM
SYSTEM
SUPERVISORY
SYSTEM
TROUBLE
POWER
ON
SYSTEM
RESET
DISPLAY
TIME
ALARM
ACK
ALARM
ACK
SUPV
ACK
TBL
ACK
ALARM
SILENCE

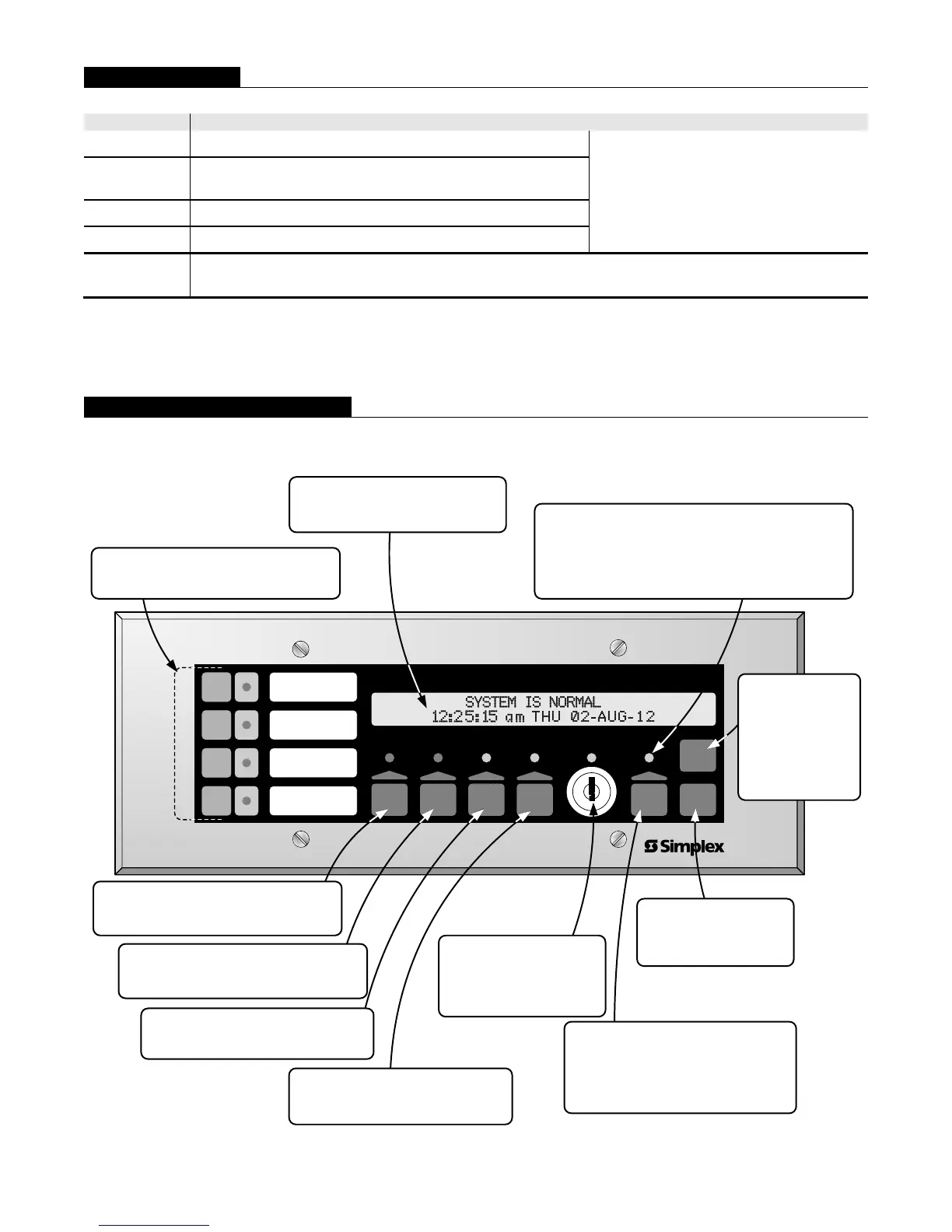

2 X 40 LCD READOUT, green LED
backlighted during normal conditions
and abnormal operating conditions
SUPV ACK acknowledges System
Supervisory conditions and silences the
panel and all annunciator tone-alerts
TROUBLE ACK acknowledges
System Troubles and silences the
panel and all annunciator tone-alerts
CONTROL ENABLE
KEYSWITCH
controls all switch functions;
key is removable only in
disabled position
ALARM SILENCE causes audible and
visible notification appliances to be
silenced (default operation, may be
modified through panel programming for
compliance with local requirements)
SYSTEM RESET restores
control panel to normal
when all alarmed inputs
are returned to normal
ALARM ACK/FIRE ALARM acknowledges
a Fire Alarm condition and silences the
panel and all annunciator tone-alerts
FOUR PROGRAMMABLE (Yellow) LEDs,
each with pushbutton switch and custom
labeling pocket
SIX STATUS INDICATOR LEDs provide system status
indications in addition to LCD information; LEDs flash to
indicate the condition and then when acknowledged,
remain on steady until reset; Fire Alarm and Priority 2
Alarm are red; System Supervisory, System Trouble,
and Alarm Silenced are yellow; Power On is green
DISPLAY TIME
displays time of last
occurrence of event
list being displayed;
or displays current
time when viewing
system status
information
ALARM ACK/PRIORITY 2 acknowledges
a Priority 2 Alarm condition and silences
the panel and all annunciator tone-alerts
2 S4603-0001-13 1/2016
Model Description
4603-9101 Remote LCD Annunciator with beige trim
Refer to specifications on page 3 for
additional details
4603-9101CF
Remote LCD Annunciator with beige trim, with French
keypad for Canada
4603-9111 Brushed stainless steel trim option
2975-9206 Matching surface mount box; ivory finish
2081-9044
Overvoltage protector; required where annunciator communications and power wiring exits and enters a
building; refer to data sheet S2081-0016 for details
4603-9101 Operator Information
Product Selection
