TYCO, SIMPLEX, and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited. National Electrical Code and NFPA are
registered trademarks of the National Fire Protection Association (NFPA).

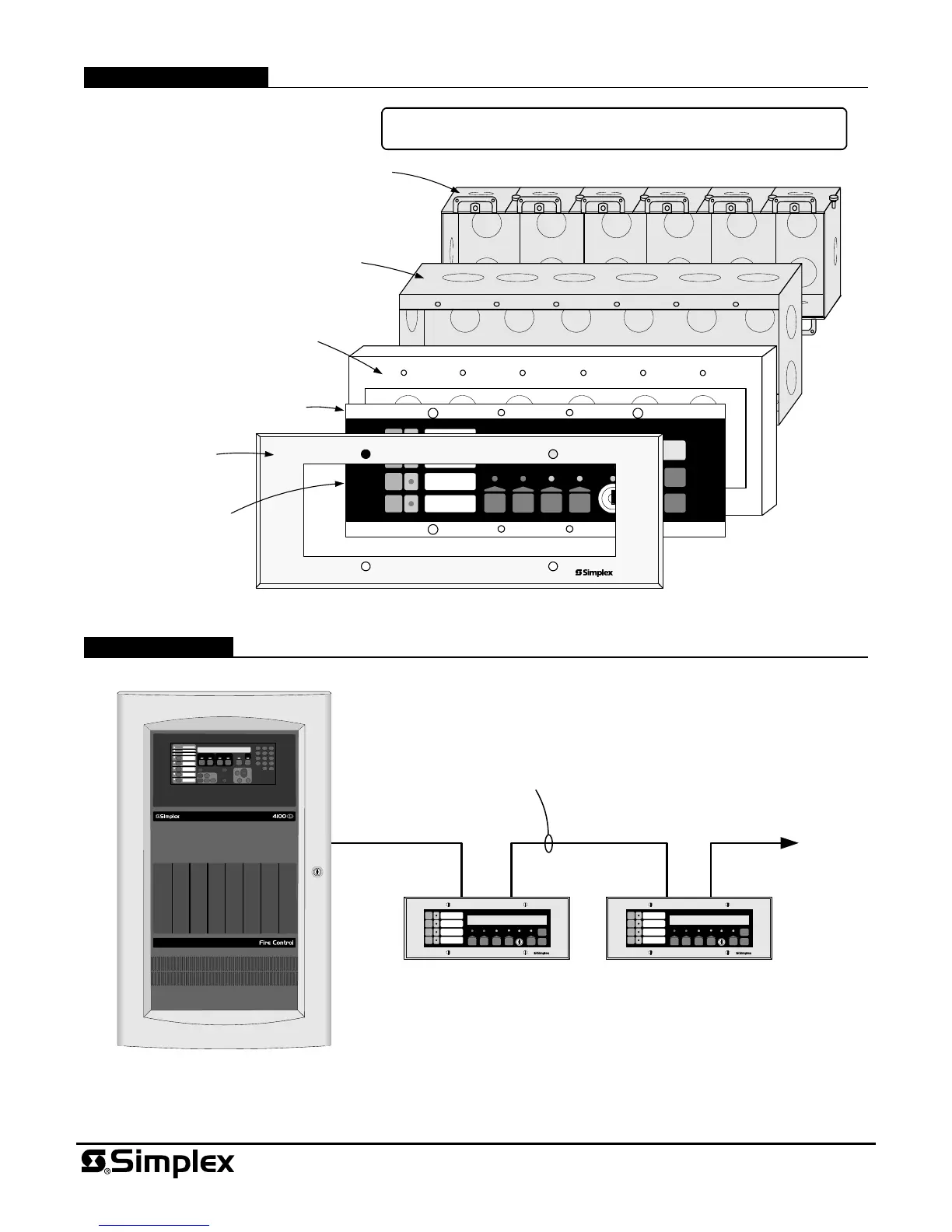

Flush Mount Masonry Box:
Use RACO # 965, 3-1/2" (89 mm) deep
or equal (supplied separately)
Flush Mount Ganged Boxes:
Requires 6-gang box, 3-1/2" (89 mm) min.
depth, use (6) RACO # 590 or equal
(supplied separately)
FIRE
ALARM
ALARM
SILE NCED
PRIORIT Y 2
ALARM
SYSTEM
SUPERVISO RY
SYSTEM
TROUBLE
POWER
ON
SYSTEM
RESET
DISPLAY
TIME
ALARM
ACK
ALARM
ACK
SUPV
ACK
TBL
ACK
ALARM
SILENCE
Surface Mount Box:
Simplex model 2975-9206
2-3/4” deep (70 mm)
(ordered separately)
Trim plate
LCD Annunciator Assembly
Terminal block
access at rear of
assembly, this side
Note: Review box choice with assembly layout before selecting conduit
entrance location to allow easy access to terminals
Wiring Notes:
1. Communications require a single 18 AWG twisted pair.
2. Power requires two, 18 to 12 AWG wires for 24 VDC system power,
plus Earth Ground to each electrical box.
3. Refer to Installation Instructions 579-979 for additional wiring
specifications.
Fire Alarm Control Panel
(4100ES shown)
4603-9101 LCD Annunciators
FIRE
ALARM
ALARM
SILENCED
PRIORIT Y 2
ALARM
SYSTEM
SUPERVISORY
SYSTEM
TROUBLE
POWER
ON
ALARM
ACK
SUPV
ACK
TBL
ACK
ALARM
ACK
ALARM
SILENCE
SYSTEM
RESET
DISPLAY
TIME
FIRE
ALARM
ALARM
SILENCED
PRIORITY 2
ALARM
SYSTEM
SUPERVISORY
SYSTEM
TROUBLE
POWER
ON
ALARM
ACK
SUPV
ACK
TBL
ACK
ALARM
ACK
ALARM
SILENCE
SYSTEM
RESET
DISPLAY
TIME
Tyco Fire Protection Products • Westminster, MA • 01441-0001 • USA S4603-0001-13 1/2016
www.simplexgrinnell.com
© 2012 Tyco Fire Protection Products. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Wiring Reference
Mounting Information
