10
Lower the amplifier into the bay by placing the two tabs on the back of the amplifier assembly
into the two slots on the bottom of the bay. Then, use the connector on the backside of the Flex
module to connect to the PDI as shown in Figure 6, below.

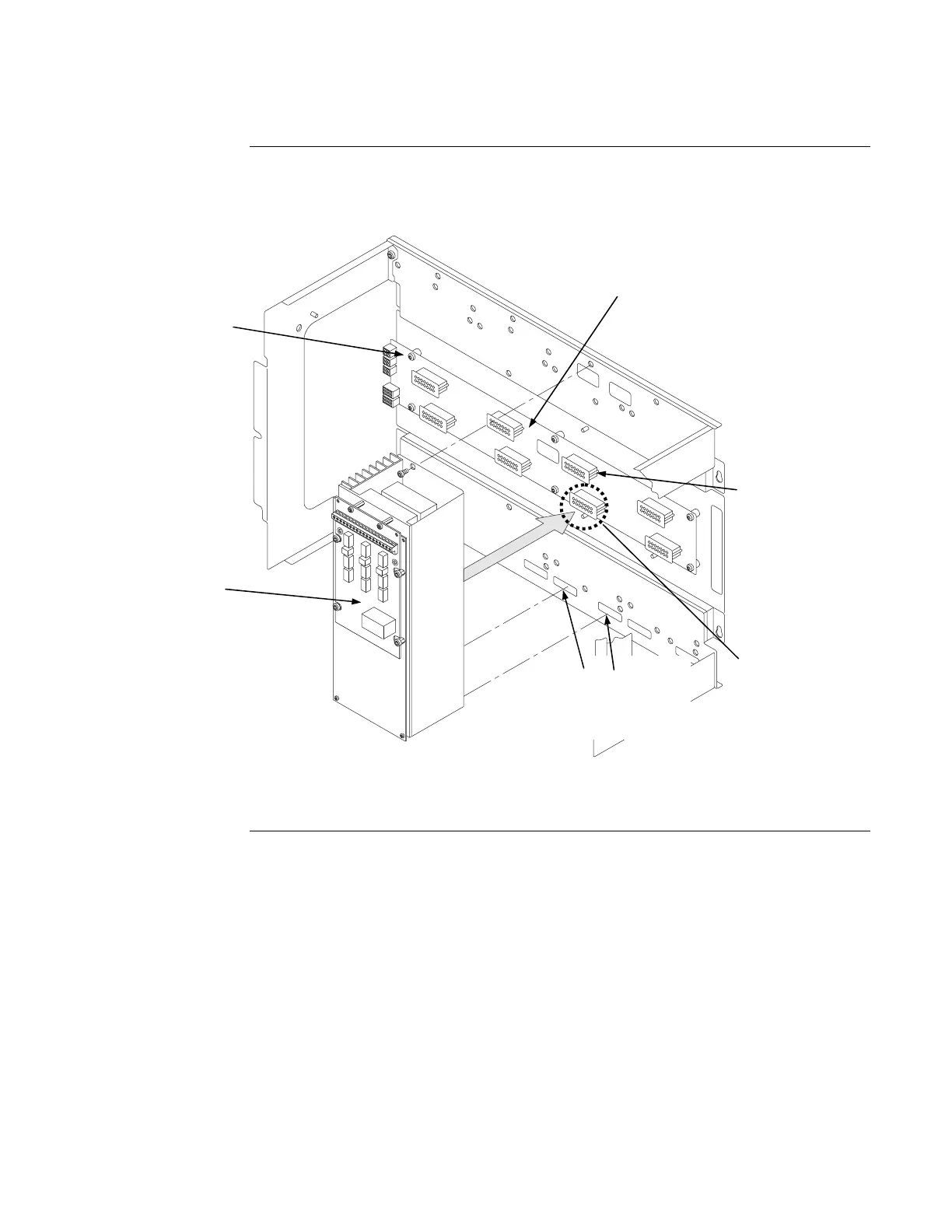

Figure 6. Mounting onto the Power Distribution Interface
Installing the Amplifier onto the PDI, Continued
Mounting
FLEX
AMPLIFIER
#6 SCREW
This connector is
unused. An open
slot in the back of
the amplifier
assembly makes
space for it.
PDI
This connector
supplies the
amplifier with
power, comms, and
riser signals.
Place the two tabs
on the back of the
assembly into these
two slots.
CONSTANT
SUPERVISION
NAC (CSNAC)
MODULE
(OPTIONAL)
To Next Page
