Trim Installation

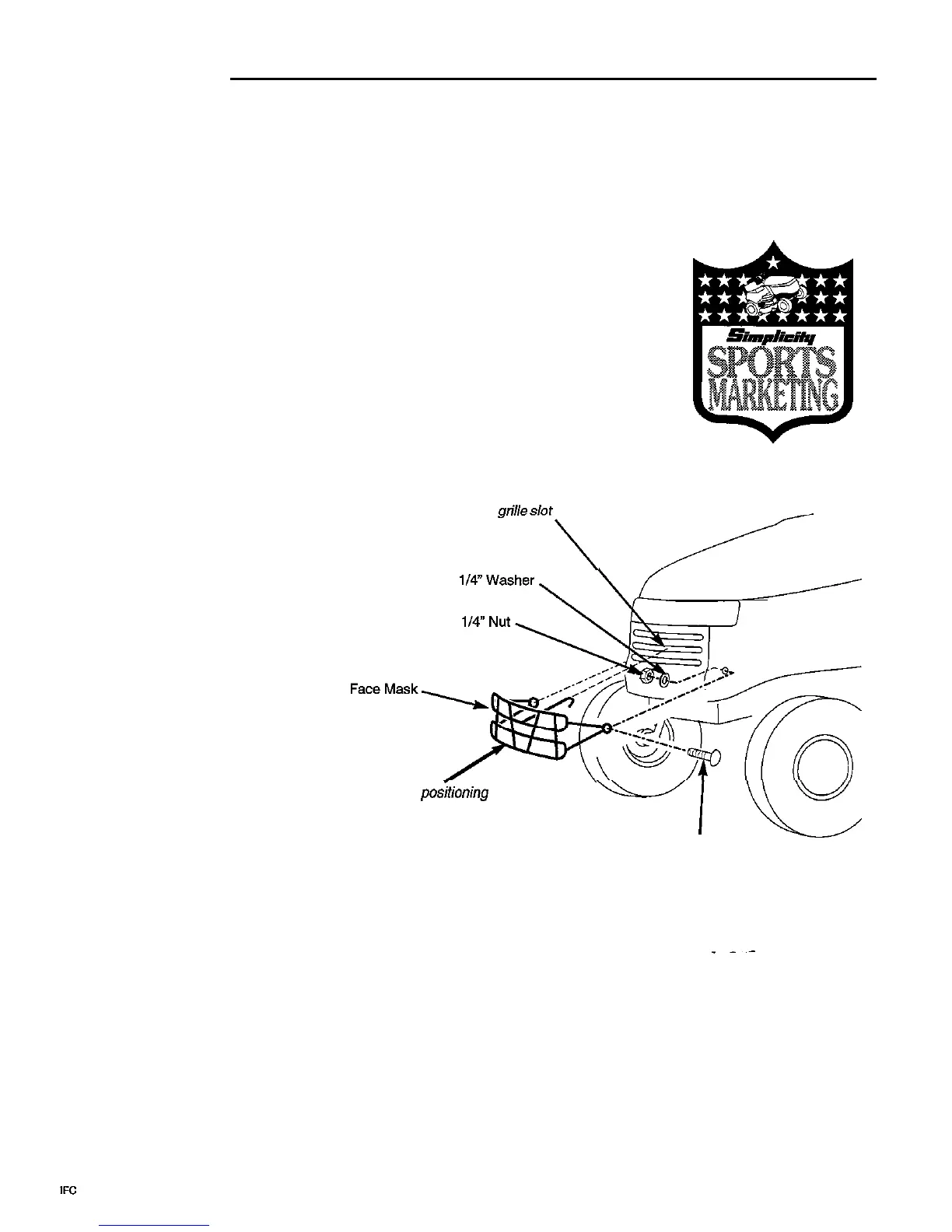

Face Mask installation:

Position the face mask onto

the unit with the hook in the

middle grille slot, and line

up with the holes on the

outside of the side panels

(note that the front of the

face mask must be in the

“V” position for proper fit.)

Insert one Carriage Bolt

through each of the two

mounting holes at the rear

of the face mask, and into

the side panels.

Place one washer onto

each Carriage Bolt from the

inside of the panel.

Thread one Nut onto each

Carriage Bolt.

Check that the Face Mask

is in the proper position and

orientation.

Tighten the Nuts securely.

Hook from Face

Mask goes into

middle

gri//e

s/o’\

NOTE: “V” positioning

-I\\-

Carriage Bolt
