9
Initial Setup
& Assembly
Ref Qty Description
1 1 ROD, Control Handle, Upper
2 6 NUT, Hex, 5/16-18
3 2 LOCKWASHER, 5/16
4 4 WASHER, 5/16
5 2 CAPSCREW, 5/16-18 x 1-1/4
6 1 ROD, Control Handle, Lower
7 1 CLEVIS
8 1 WASHER, 1/2
9 1 CLIP, Hair Pin
10 3 COTTER PIN
11 1 ROD & PLATE ASMY, Pivot
12 1 DOZER BLADE ASMY, 42”
13 1 SCRAPER BAR
14 6 CARRIAGE BOLT, 3/8-16 x 1
15 10 LOCKWASHER, 3/8
Ref Qty Description
16 6 NUT, Hex, 3/8-16
17 2 SKID SHOE
18 4 WASHER, Plain, 3/8
19 4 CAPSCREW, 3/8-16 x 3/4
20 2 CAPSCREW, 1/2-13 x 1-1/2
21 2 SPACER, 1/2 ID x 3/4 OD x 5/16 LG
22 1 ROD, Latch Stop
23 2 LOCKNUT, 1/2-13
24 1 FRAME ASMY, Dozer
25 2 EYEBOLT
26 2 SPRING, Extension
27 1 CLIP, Hair Pin
28 1 PLATE ASMY, Latch
29 2 SPRING, Torsion
4
6
4
1
3
4
4
11
7
25
26
24
23
21
10
22
20
19
15
18
17
16
14
13
12
15
27
8
9
28
3
5
10
2
2
29

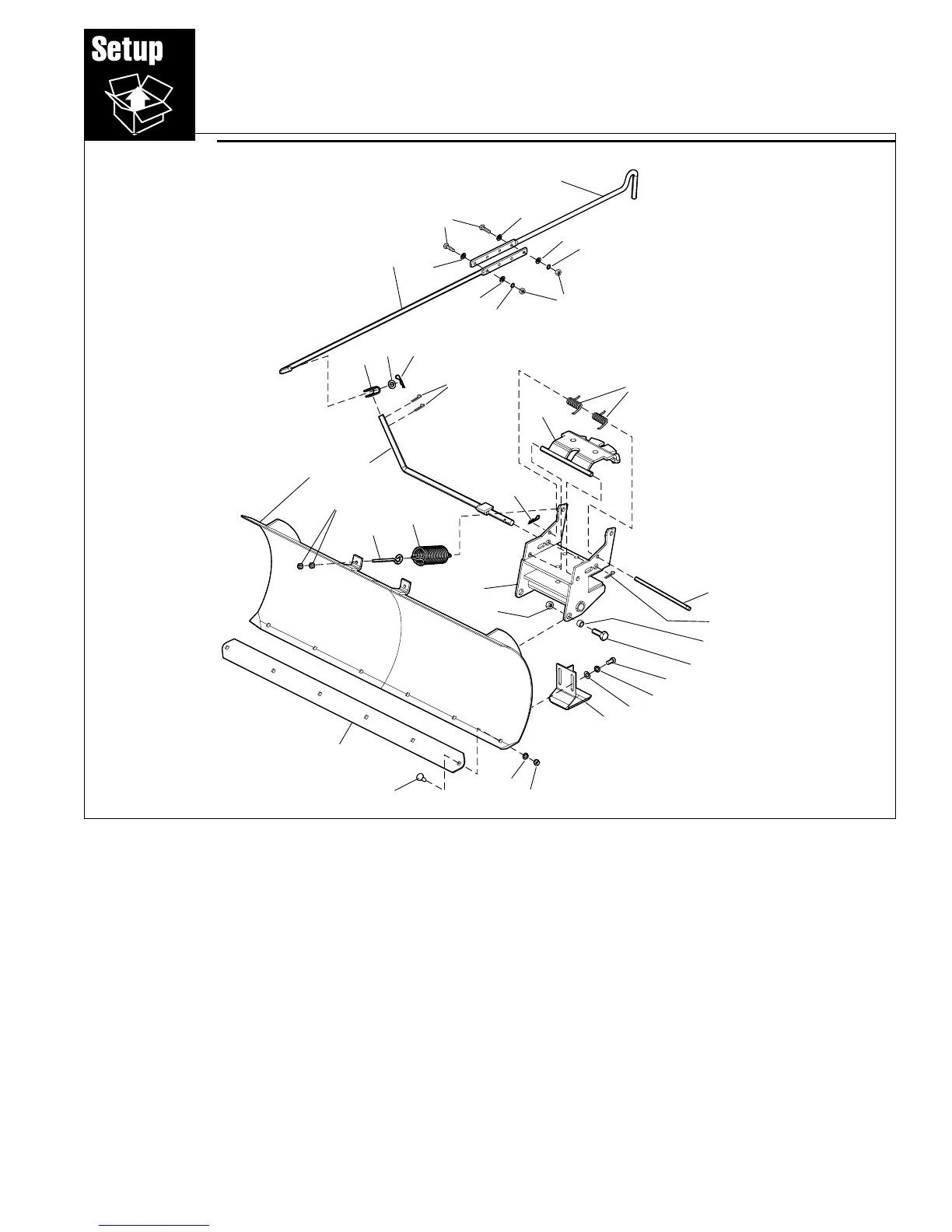

Figure 8.
