4
Initial
Setup & Assembly

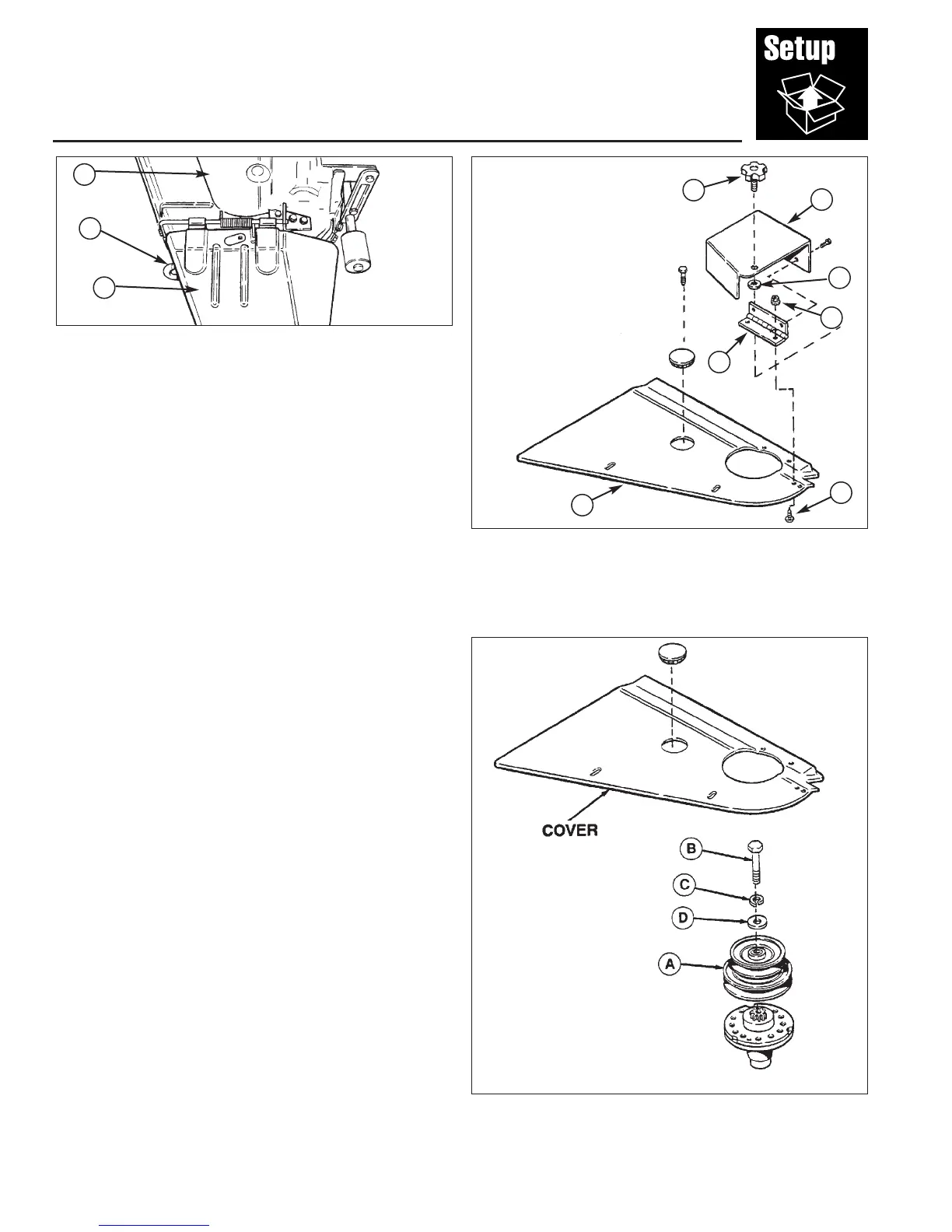

Figure 2. Assemble the New Cover
A. Belt Cover E. Hinge
B. Knob F. Screw, #10-32 x 3/8
C. Left Hand Cover G. 5/16 Push nut
D. Locknut, #10-32
G
Figure 1. Deflector, Stone Guard, and Cover
A. Deflector C. Belt Cover
B. Stone Guard
A
B
C
INITIAL SETUP & ASSEMBLY
Prepare the Deck, Belt Cover, & Support
Arm Assembly
1. Remove the mower deck from the tractor. Refer to
he tractor operator’s manual for mower installation
and removal procedures.
2. Remove the deflector (A, Figure 1) and correspond-
ing mounting hardware from deck. Also Remove the
left side belt cover (C). Clean all mounting holes.
3. Assemble the hinge (E) to the new belt cover (A)
using hardware provided (D, F) as shown in Figure 2.
Insert the knob (B) through the cover (A) and secure
with 5/16 push nut (G). Assemble the belt cover (A)
and knob (B) to the left-hand mower cover (C).
Figure 3. Install Stacked Arbor Pulley
A. Pulley Assy. C. Lockwasher
B. Capscrew, 7/16 x 2-1/4 D. Washer
Install Stacked Arbor Pulley
1. Roll the mower drive belt off the left arbor pulley.
2. Remove the left side arbor pulley by blocking the left-
hand mower blade with a wood block and removing
the arbor pulley capscrew. Discard the capscrew but
retain the other hardware.
3. See Figure 5. Install the double stacked pulley (A)
from turbo kit, with the larger pulley on the bottom.
Use the longer capscrew (B) supplied with the kit
along with the original hardware.
4. Block the mower blade with wood and tighten cap-
screw to 50-70 ft. lbs. (68-76 Nm).
5. Re-install the mower drive belt on the lower pulley.
C
F
D
B
A
E
To Next Page
